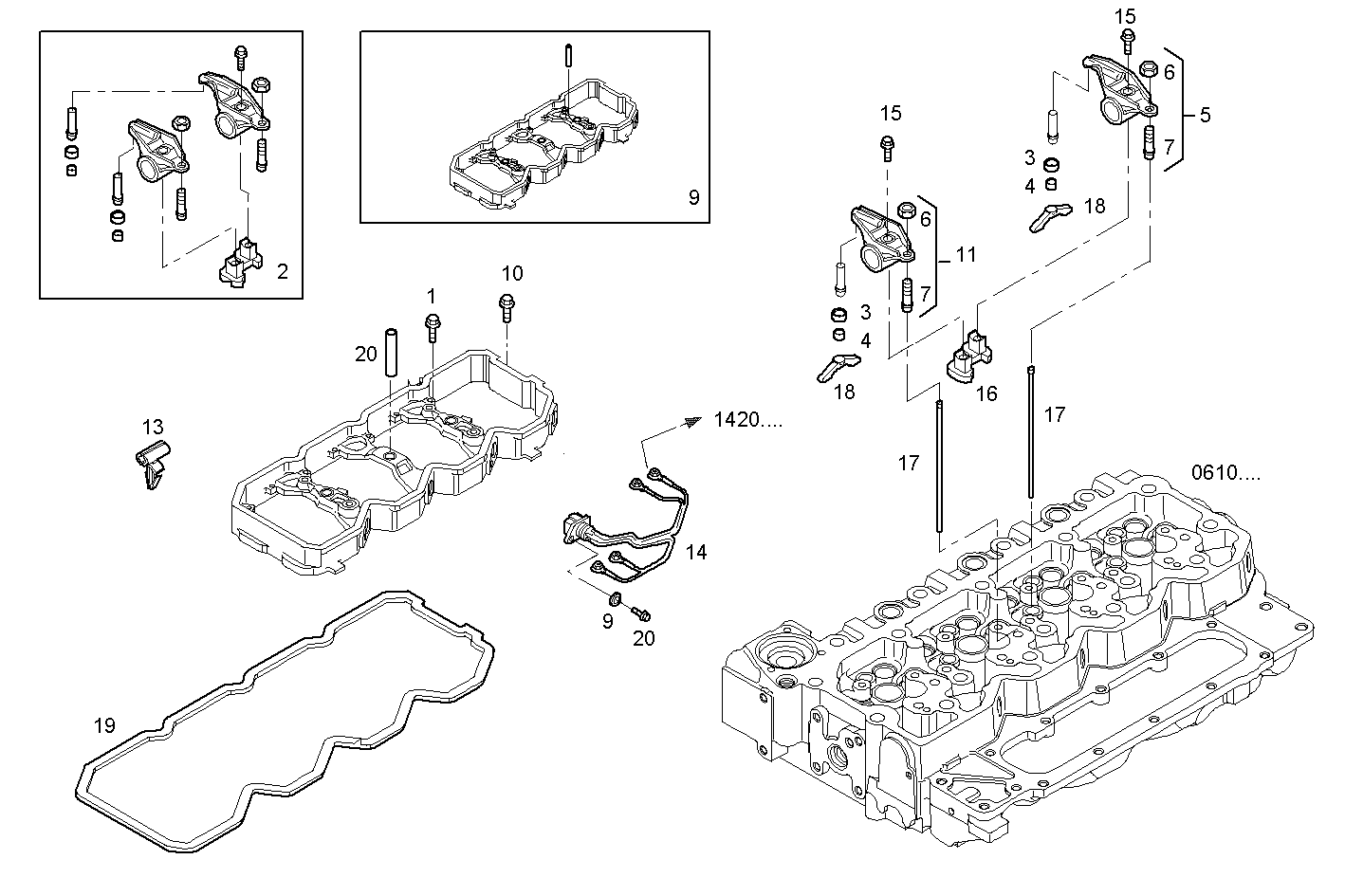

ROCKER SHAFT

Assembly ID: 0668.010

ROCKER SHAFT

Parts

# Part number Description Note Quantity
1 4895432 HEXAGON BOLT 3
2 4898717 ROCKER SHAFT 4
3 4897248 CAP 8
4 4897245 SLIDING SHOE 8
5 4895068 ROCKER ARM 4
6 4895198 HEXAGON NUT 8
7 2830222 ROCKER ARM SCREW 8
9 4899256 SPACING BAR 1
10 4899089 HEXAGON BOLT 2
11 4895067 ROCKER ARM 4
12 17094614 WASHER 2
13 504066132 SPRING CLAMP 4
14 504039152 WIRE/CABLE 2
15 2830434 HEXAGON BOLT 8
15 4899083 HEXAGON BOLT 8
16 4893487 ROCKER BRACKET 4
17 4895031 PUSHROD 8
18 4895076 VALVE BRIDGE 8
19 4899230 GASKET 1
20 4899245 BUSH 3
21 16689121 SOCKET-HEAD SCREW 2

Applies to engines

Engine Family
F4AE0481E*C102 NEF 4 electron. - EURO 3 view
N40ENTE20.00 NEF 4 electron. - TIER 2 view
N40ENTU20.00 NEF 4 electron. - TIER 2 view
N40ENTC21.00A010 NEF 4 electron. - EURO 3 view
F4AE0484C*D102 NEF 4 electron. - TIER 2 view
N40ENTE21.00A002 NEF 4 electron. - TIER 2 view
F4AE0481E*C105 NEF 4 electron. - EURO 3 view
F4AE0484B*D101 NEF 4 electron. - TIER 2 view
F4AE0484B*D102 NEF 4 electron. - TIER 2 view
N40ENTM25.10 NEF 4 electron. view
F4AE0484B*D103 NEF 4 electron. - TIER 2 view
N40ENTD20.00 NEF 4 electron. - TIER 2 view
N40ENTD20.00A800 NEF 4 electron. - TIER 2 view
N40ENTD20.00A801 NEF 4 electron. - TIER 2 view
F4AE0481C*C103 NEF 4 electron. - EURO 3 view
N40ENTC21.00A015 NEF 4 electron. - EURO 3 view
N40ENTE21.00A003 NEF 4 electron. - TIER 2 view
F4AE0481A*C103 NEF 4 electron. - EURO 3 view
F4AE0481A*C106 NEF 4 electron. - EURO 3 view
F4AE0481C*C102 NEF 4 electron. - EURO 3 view
N40ENTD20.00A810 NEF 4 electron. - TIER 2 view
N40ENTC21.00A014 NEF 4 electron. - EURO 3 view
