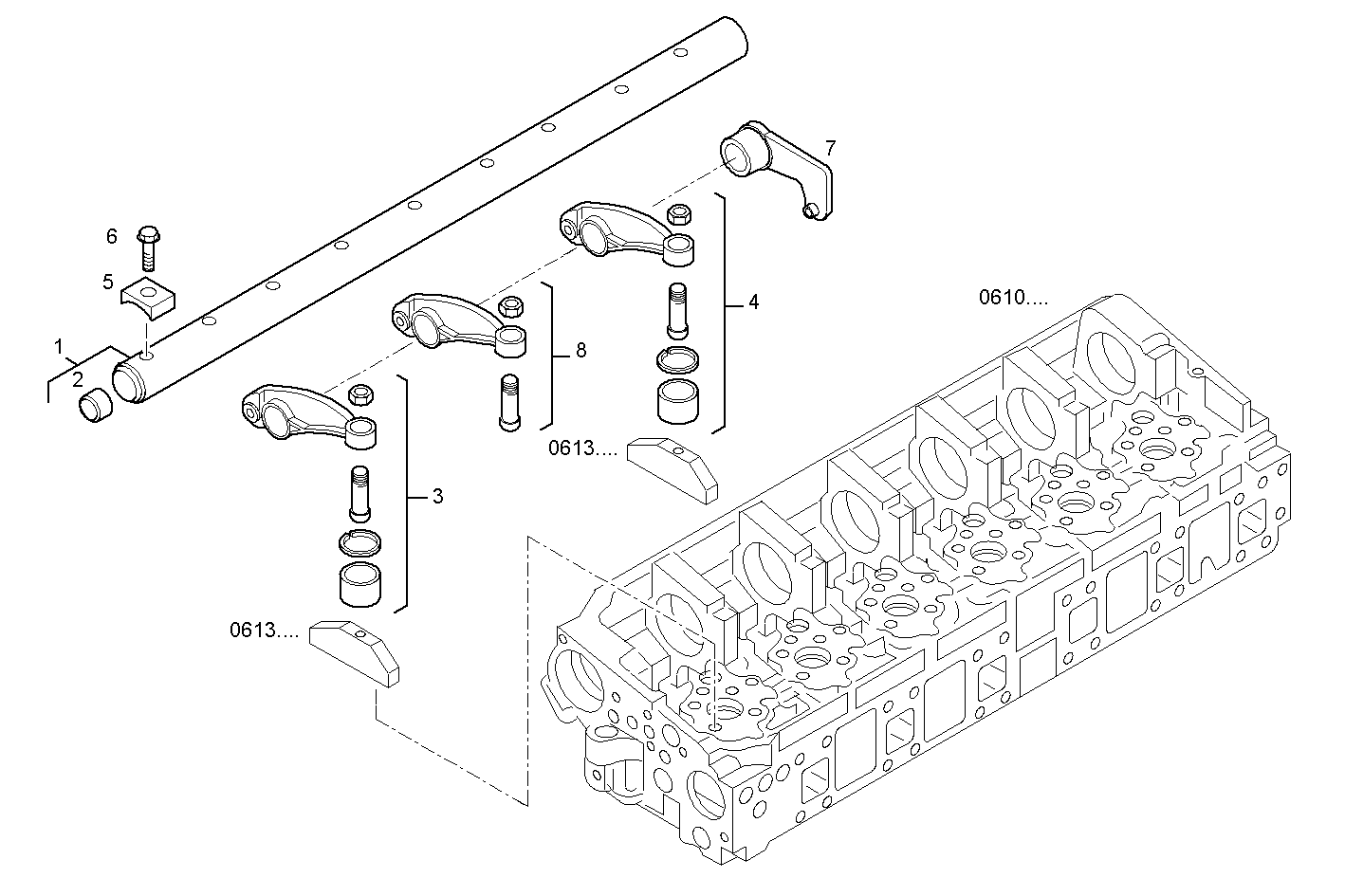

ROCKER SHAFT
Assembly ID: 0668.020
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 99475575 | ROCKER SHAFT | 1 | ||
| 2 | 16988301 | LOCK PLUG | 1 | ||
| 3 | 504137043 | ROCKER ARM | 6 | ||
| 4 | 504137044 | ROCKER ARM | 6 | ||
| 5 | 500344277 | SPACING BAR | 7 | ||
| 6 | 99475580 | HEXAGON BOLT | 7 | ||
| 7 | 99476802 | LEVER | 6 | ||
| 8 | 500314915 | ROCKER ARM | 6 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3BE3681B*R401 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R402 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R403 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R404 | CURSOR 13 - EURO 4 | view |
