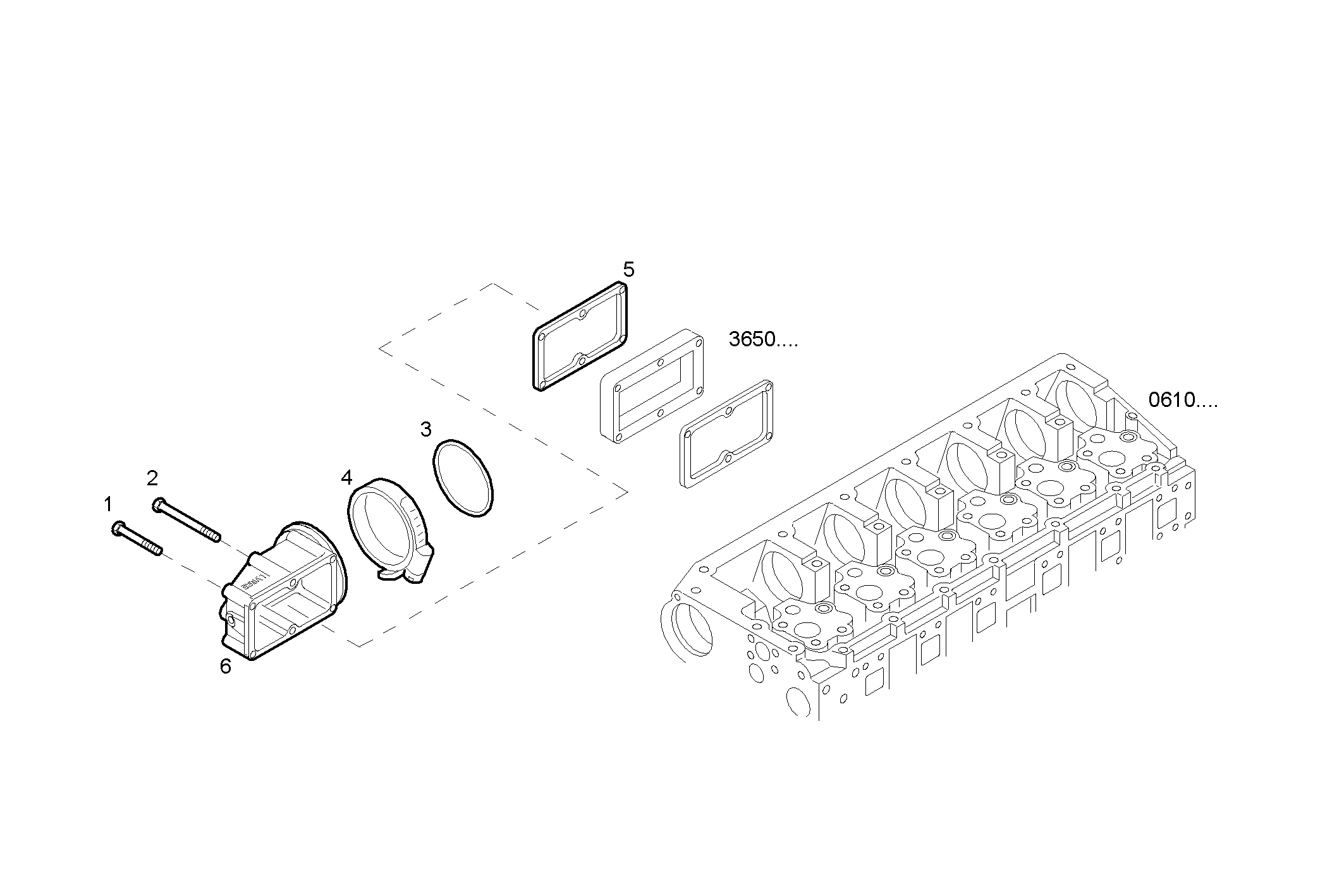

INTAKE MANIFOLD
Assembly ID: 0710.017
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 16593125 | HEXAGON BOLT | 2 | ||
| 2 | 16599225 | HEXAGON BOLT | 4 | ||
| 3 | 17291281 | O-RING | 1 | ||
| 4 | 99435103 | CLIP | 1 | ||
| 5 | 504026624 | FLAT ENGINE GASKET | 1 | ||
| 6 | 504074690 | INTAKE ELBOW | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3BE3681B*R401 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R402 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R403 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R404 | CURSOR 13 - EURO 4 | view |
