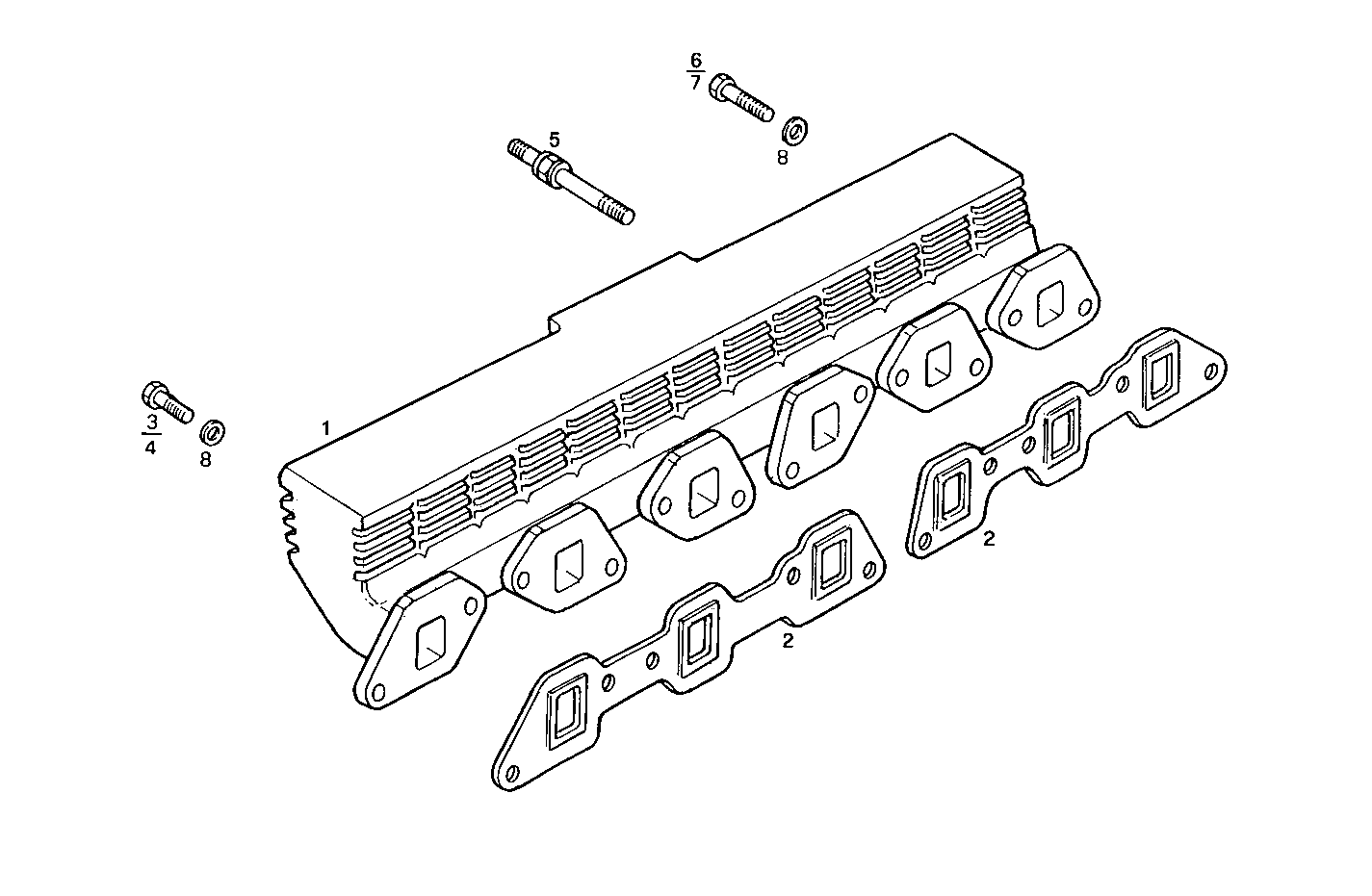

INTAKE MANIFOLD
Assembly ID: 0710.106
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 61321093 | INTAKE ELBOW | 1 | ||
| 2 | 61321089 | INTAKE ELBOW GASK. | 2 | ||
| 3 | 15972424 | HEXAGON BOLT | 2 | ||
| 4 | 15972824 | SCREW | 2 | ||
| 5 | 61318746 | STUD | 2 | ||
| 6 | 15116624 | HEXAGON BOLT | 2 | ||
| 7 | 61320845 | HEXAGON BOLT | 4 | ||
| 8 | 17090274 | WASHER | 12 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8460SRC21.20 | 8460SRC21 | view |
| 8460SRC21.20A001 | 8460SRC21 | view |
| 8460SRC20.00 | 8460SRC20 | view |
| 8460SRC20.10 | 8460SRC20 | view |
| 8460SRC20.20 | 8460SRC20 | view |
| 8460SRC21.00 | 8460SRC21 | view |
| 8460SRC21.10 | 8460SRC21 | view |
| 8460SRC21.20A002 | 8460SRC21 | view |
