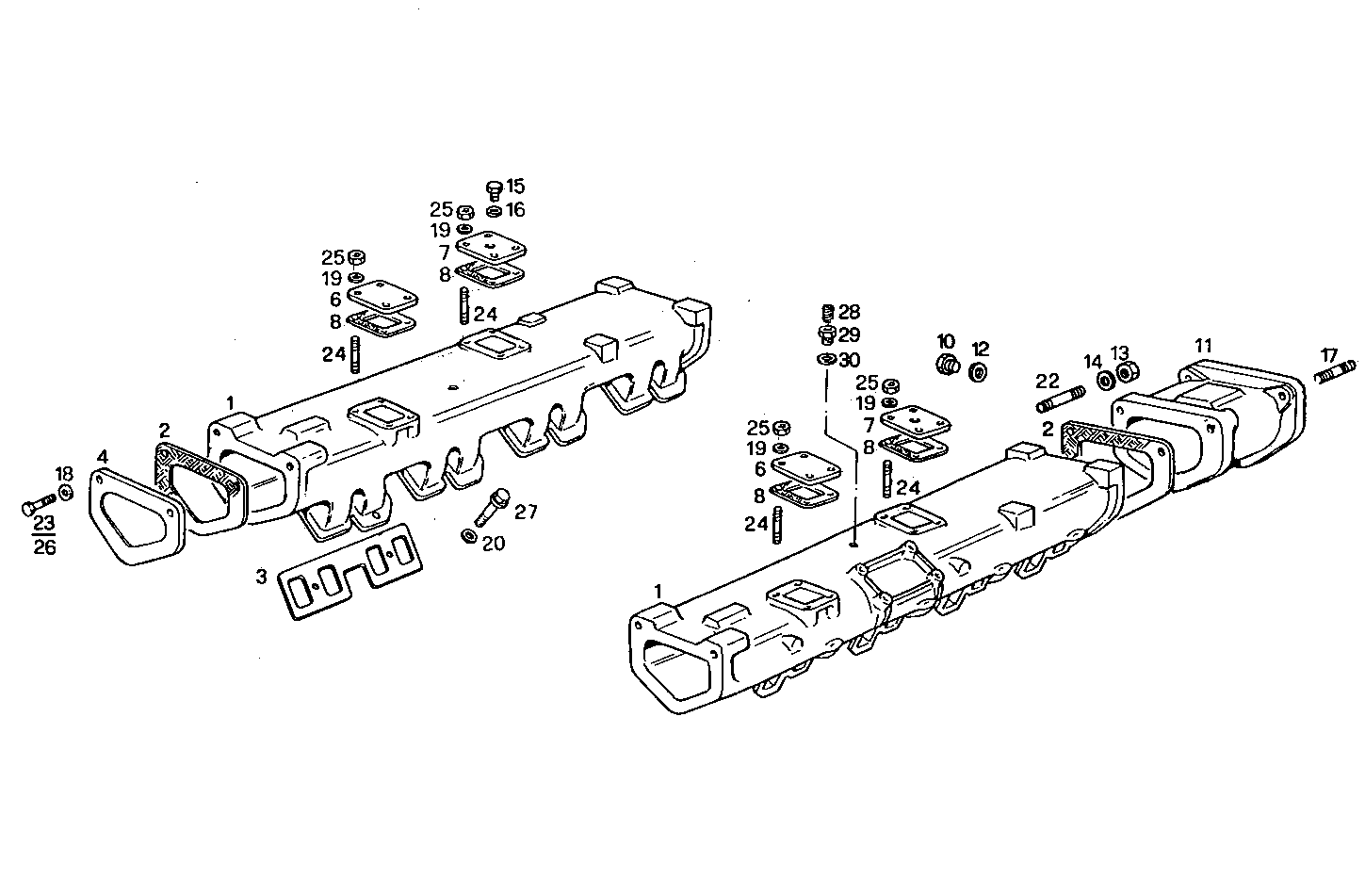

| 1 |
8026382
|
INTAKE ELBOW
|
|
2
|
|
| 2 |
4786886
|
GASKET
|
|
3
|
|
| 3 |
4789747
|
INTAKE ELBOW GASK.
|
|
4
|
|
| 4 |
4718509
|
COVER
|
|
2
|
|
| 6 |
4746828
|
COVER
|
|
2
|
|
| 7 |
4742337
|
COVER
|
|
2
|
|
| 8 |
500301317
|
GASKET
|
|
4
|
|
| 10 |
16992511
|
THREADED PLUG
|
|
1
|
|
| 11 |
8104267
|
SPACING BAR
|
|
1
|
|
| 12 |
4858610
|
WASHER
|
|
1
|
|
| 13 |
17038221
|
HEXAGON NUT
|
|
3
|
|
|
17038225 |
HEXAGON NUT |
|
3 |
|
| 14 |
17090174
|
SPRING WASHER
|
|
3
|
|
| 15 |
16992211
|
THREADED PLUG
|
|
1
|
|
| 16 |
4858607
|
WASHER
|
|
1
|
|
| 17 |
4667393
|
STUD
|
|
3
|
|
| 18 |
17090474
|
SPRING WASHER
|
|
6
|
|
| 19 |
17089574
|
WASHER
|
|
16
|
|
|
17089575 |
WASHER |
|
16 |
|
| 20 |
17095101
|
WASHER
|
|
8
|
|
| 22 |
13546521
|
STUD
|
|
6
|
|
| 23 |
11306921
|
SCREW
|
|
3
|
|
| 24 |
16729324
|
STUD
|
|
16
|
|
| 25 |
17037931
|
HEXAGON NUT
|
|
16
|
|
| 26 |
15970921
|
HEXAGON BOLT
|
|
3
|
|
| 27 |
4720250
|
SCREW
|
|
8
|
|
| 28 |
4742340
|
PLUG
|
|
2
|
|
| 29 |
4742339
|
PIPE SOCKET
|
|
2
|
|
| 30 |
10263460
|
WASHER
|
|
2
|
|
