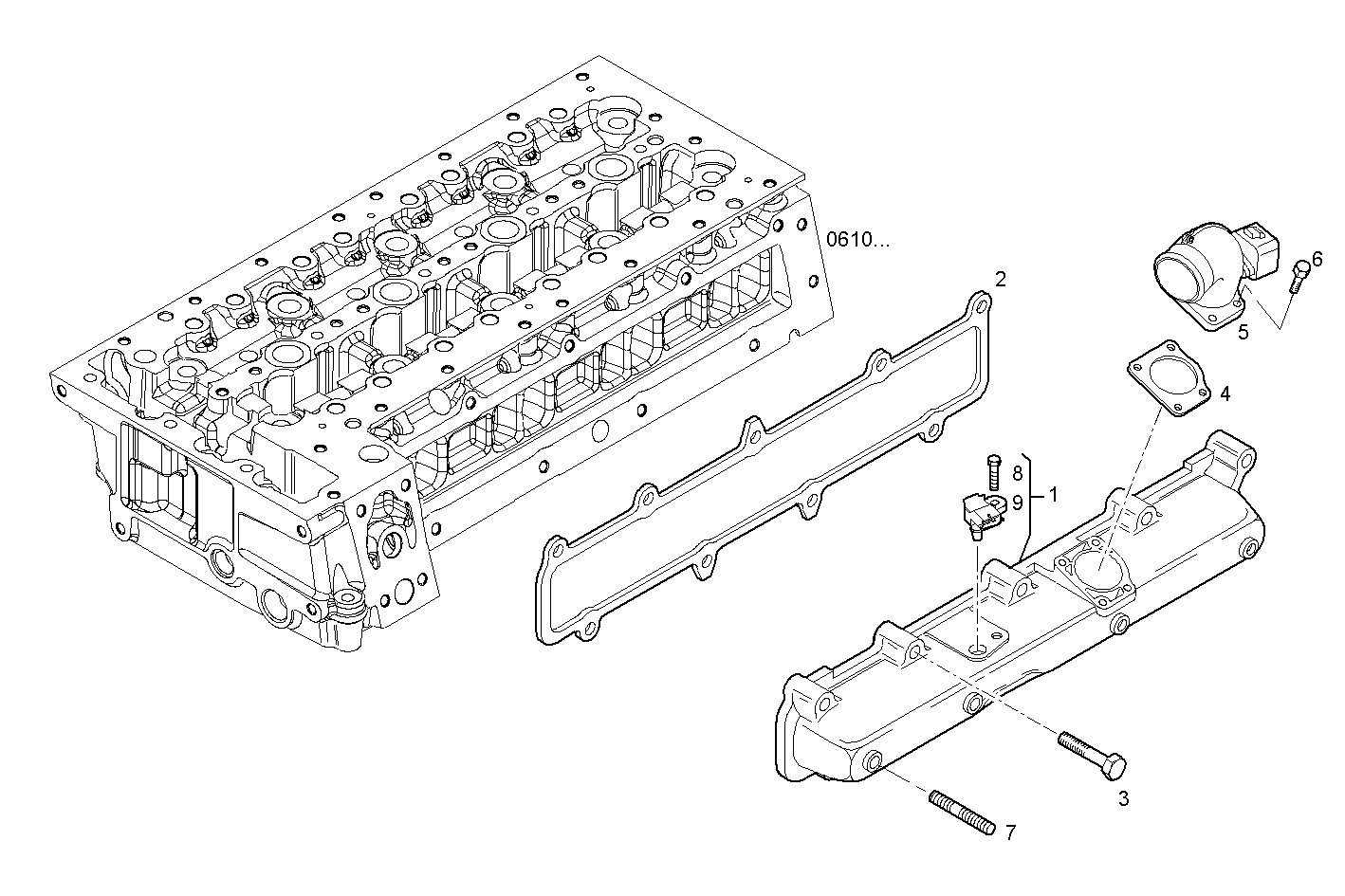

INTAKE MANIFOLD
Assembly ID: 0710.227
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504142333 | INTAKE ELBOW | 1 | ||
| 2 | 504047974 | INTAKE ELBOW GASK. | 1 | ||
| 3 | 16586725 | HEXAGON BOLT | 9 | ||
| 4 | 504107629 | INTAKE ELBOW GASK. | 1 | ||
| 5 | 504105594 | VALVE HOUSING | 1 | ||
| 6 | 16673735 | HEXAGON BOLT | 4 | ||
| 7 | 16729224 | STUD | 1 | ||
| 8 | 16585870 | HEXAGON BOLT | 1 | ||
| 9 | 504245257 | SENSOR | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F1CE0481F*A001 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.10P002 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0481F*C501 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.40A001 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.40A002 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0487K*C502 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.80A001 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.80A002 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.80A003 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0481F*C503 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0481F*C001 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.30A001 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0481H*C003 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT425.10A001 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.91L003 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0481F*C504 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.70A002 | SOFIM HPI 3.0L - EURO 4 | view |
| F1CE0481F*A002 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.11A001 | SOFIM HPI 3.0L - EURO 4 | view |
