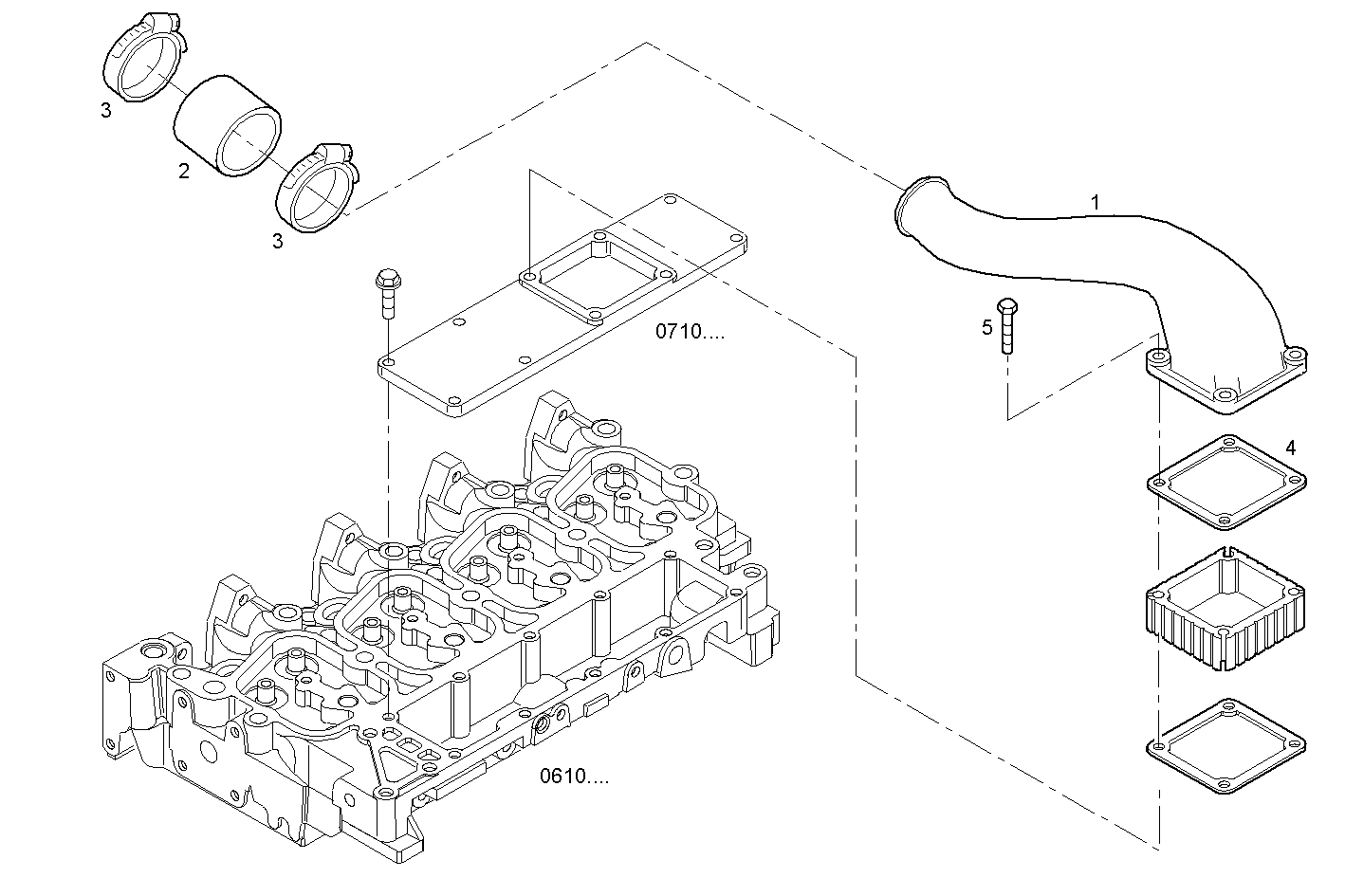

ENGINE AIR INTAKE
Assembly ID: 0715.006
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 2830955 | INTAKE ELBOW | 1 | ||
| 2 | 4897303 | RUBBER SLEEVE | 1 | ||
| 3 | 17764993 | CLIP | 2 | ||
| 4 | 4899921 | FLAT ENGINE GASKET | 1 | ||
| 5 | 4895294 | HEXAGON BOLT | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4CE0454A*D601 | NEF 4 mechanic. - TIER 2 | view |
| F4CE0454C*D601 | NEF 4 mechanic. - TIER 2 | view |
| F4CE0454C*D602 | NEF 4 mechanic. - TIER 2 | view |
| F4CE0454A*D604 | NEF 4 mechanic. - TIER 2 | view |
| N45MRSD00.50A001 | NEF 4 mechanic. - TIER 2 | view |
| N45MRSD02.50A001 | NEF 4 mechanic. - TIER 2 | view |
| F4CE0454A*D606 | NEF 4 mechanic. - TIER 2 | view |
| F4CE0454C*D607 | NEF 4 mechanic. - TIER 2 | view |
| F4CE0454A*D607 | NEF 4 mechanic. - TIER 2 | view |
| F4CE0454C*D612 | NEF 4 mechanic. - TIER 3 | view |
| F4CE9454C*J601 | NEF 4 mechanic. - TIER 3 | view |
