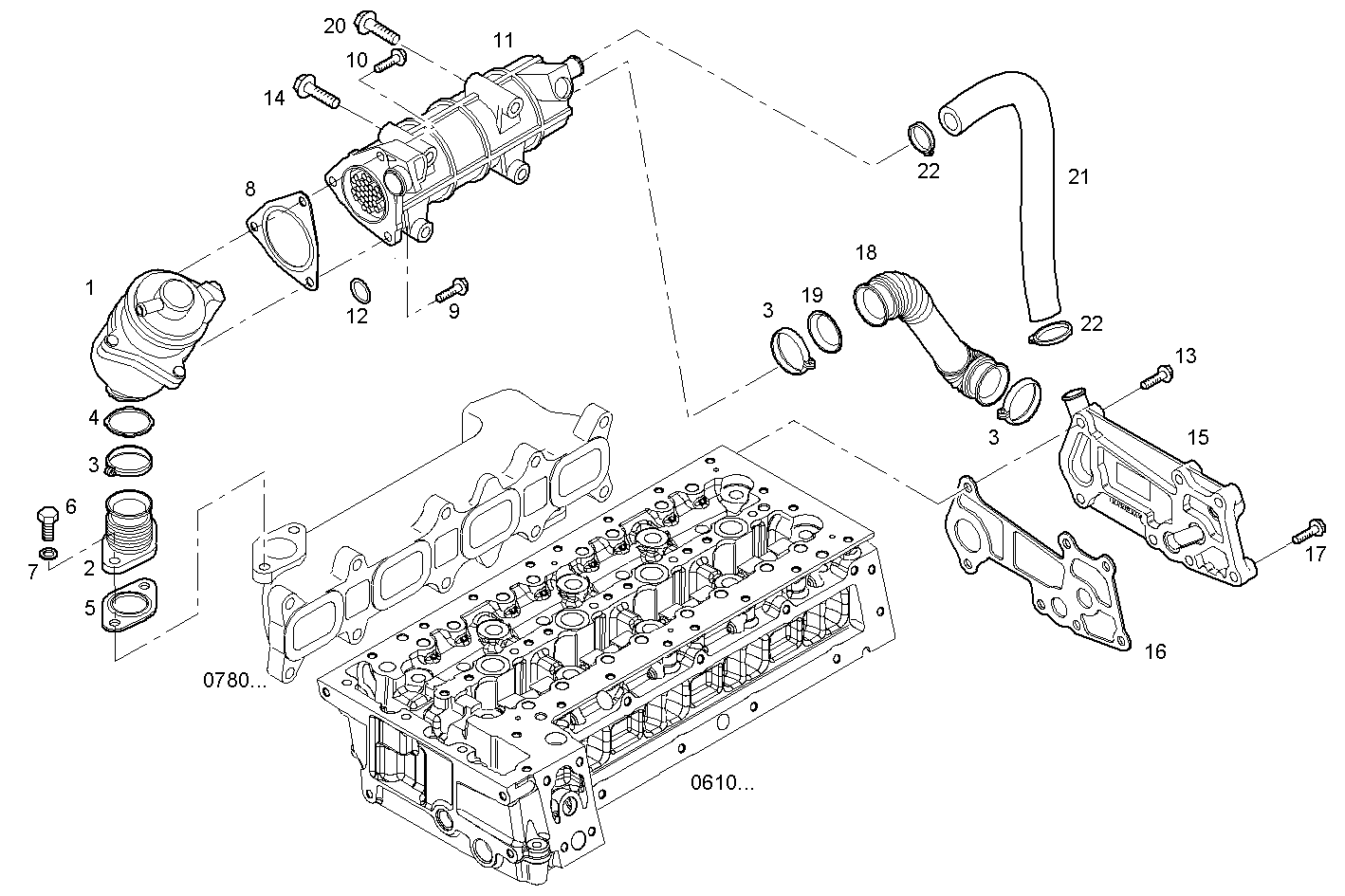

EGR

Assembly ID: 0750.001

EGR

Parts

# Part number Description Note Quantity
1 504121701 CONTROL VALVE 1
2 504092261 FLANGE 1
3 504196032 CLIP 3
4 504196616 SEAL GASKET 1
5 504167862 EXH. MANIFOLD GKT 1
6 16690534 HEXAGON BOLT 2
7 17094914 WASHER 2
8 504072973 EXH. MANIFOLD GKT 1
9 16673835 HEXAGON BOLT 2
10 16592525 HEXAGON BOLT 1
11 504136967 HEAT EXCHANGER 1
12 504184692 O-RING 1
13 16592625 HEXAGON BOLT 3
14 16296524 HEXAGON BOLT 1
15 504135948 COVER 1
16 504130519 FLAT ENGINE GASKET 1
17 16586825 HEXAGON BOLT 4
18 504136791 CONNECTION PIPE 1
19 504196620 SEAL GASKET 1
20 16586625 HEXAGON BOLT 3
21 504136788 RUBBER SLEEVE 1
22 18088392 CLIP 2

Applies to engines

Engine Family
F1CE0481F*A001 SOFIM HPI 3.0L - EURO 4 view
S30ENT422.10P002 SOFIM HPI 3.0L - EURO 4 view
F1CE0481F*C501 SOFIM HPI 3.0L - EURO 4 view
S30ENT422.40A001 SOFIM HPI 3.0L - EURO 4 view
S30ENT422.40A002 SOFIM HPI 3.0L - EURO 4 view
F1CE0487K*C502 SOFIM HPI 3.0L - EURO 4 view
S30ENT422.80A001 SOFIM HPI 3.0L - EURO 4 view
S30ENT422.80A002 SOFIM HPI 3.0L - EURO 4 view
S30ENT422.80A003 SOFIM HPI 3.0L - EURO 4 view
F1CE0481F*C503 SOFIM HPI 3.0L - EURO 4 view
F1CE0481F*C001 SOFIM HPI 3.0L - EURO 4 view
S30ENT422.30A001 SOFIM HPI 3.0L - EURO 4 view
S30ENT422.91L003 SOFIM HPI 3.0L - EURO 4 view
F1CE0481F*C504 SOFIM HPI 3.0L - EURO 4 view
S30ENT422.70A002 SOFIM HPI 3.0L - EURO 4 view
F1CE0481F*A002 SOFIM HPI 3.0L - EURO 4 view
S30ENT422.11A001 SOFIM HPI 3.0L - EURO 4 view
F1CE0481F*A003 SOFIM HPI 3.0L - EURO 4 view
