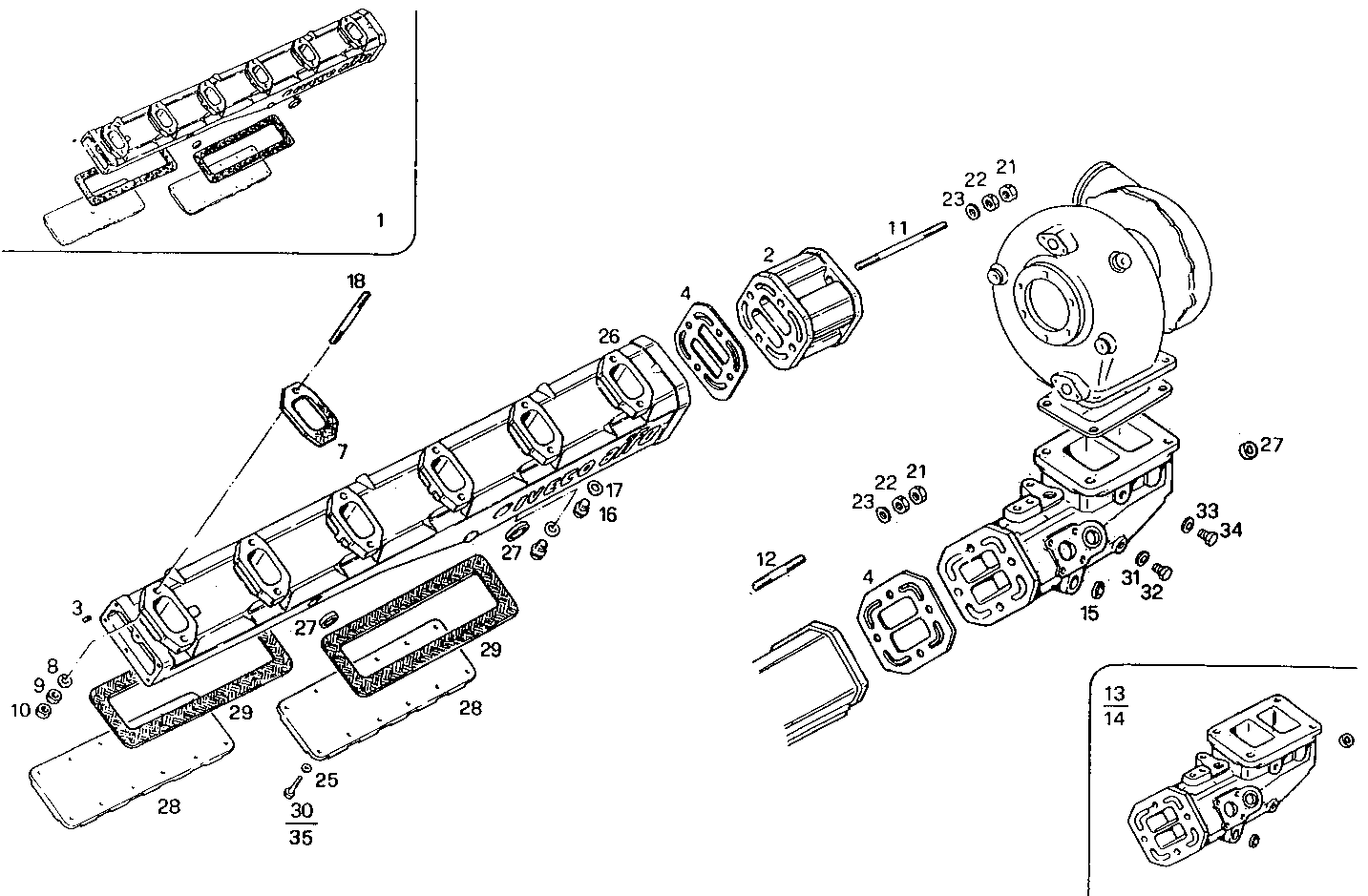

| 1 |
8011365
|
COOLED EXHAUST MANIF.
|
|
2
|
|
| 2 |
8009000
|
SPACING BAR
|
|
1
|
|
| 3 |
17873371
|
THREADED INSERT
|
|
18
|
|
| 4 |
8006874
|
GASKET
|
|
3
|
|
| 7 |
8051541
|
EXH. MANIFOLD GKT
|
|
12
|
|
| 8 |
16665614
|
WASHER
|
|
24
|
|
| 9 |
4927248
|
NUT
|
|
24
|
|
| 10 |
8100961
|
NUT
|
|
24
|
|
| 11 |
13554830
|
STUD
|
|
4
|
|
| 12 |
13552630
|
STUD
|
|
4
|
|
| 13 |
8015276
|
EXHAUST COOL. ELBOW
|
|
1
|
|
| 14 |
8015280
|
EXHAUST COOL. ELBOW
|
|
1
|
|
| 15 |
16990870
|
LOCK PLUG
|
|
3
|
|
| 16 |
16992540
|
PLUG
|
|
2
|
|
| 17 |
4858610
|
WASHER
|
|
2
|
|
| 18 |
13449830
|
STUD
|
|
24
|
|
| 21 |
8103206
|
NUT
|
|
8
|
|
| 22 |
8103197
|
NUT
|
|
8
|
|
| 23 |
16665714
|
WASHER
|
|
8
|
|
|
16665704 |
WASHER |
|
8 |
|
| 25 |
17089474
|
SPRING WASHER
|
|
24
|
|
| 27 |
16991170
|
LOCK PLUG
|
|
8
|
|
| 28 |
8021358
|
COVER
|
|
4
|
|
|
8029960 |
COVER |
|
4 |
|
| 29 |
8021800
|
GASKET
|
|
4
|
|
| 30 |
16605424
|
SCREW
|
|
20
|
|
| 31 |
4858608
|
SEAL GASKET
|
|
4
|
|
| 32 |
16992340
|
THREADED PLUG
|
|
4
|
|
| 33 |
4858607
|
WASHER
|
|
2
|
|
| 34 |
16992211
|
THREADED PLUG
|
|
2
|
|
| 35 |
16605524
|
HEXAGON BOLT
|
|
4
|
|
