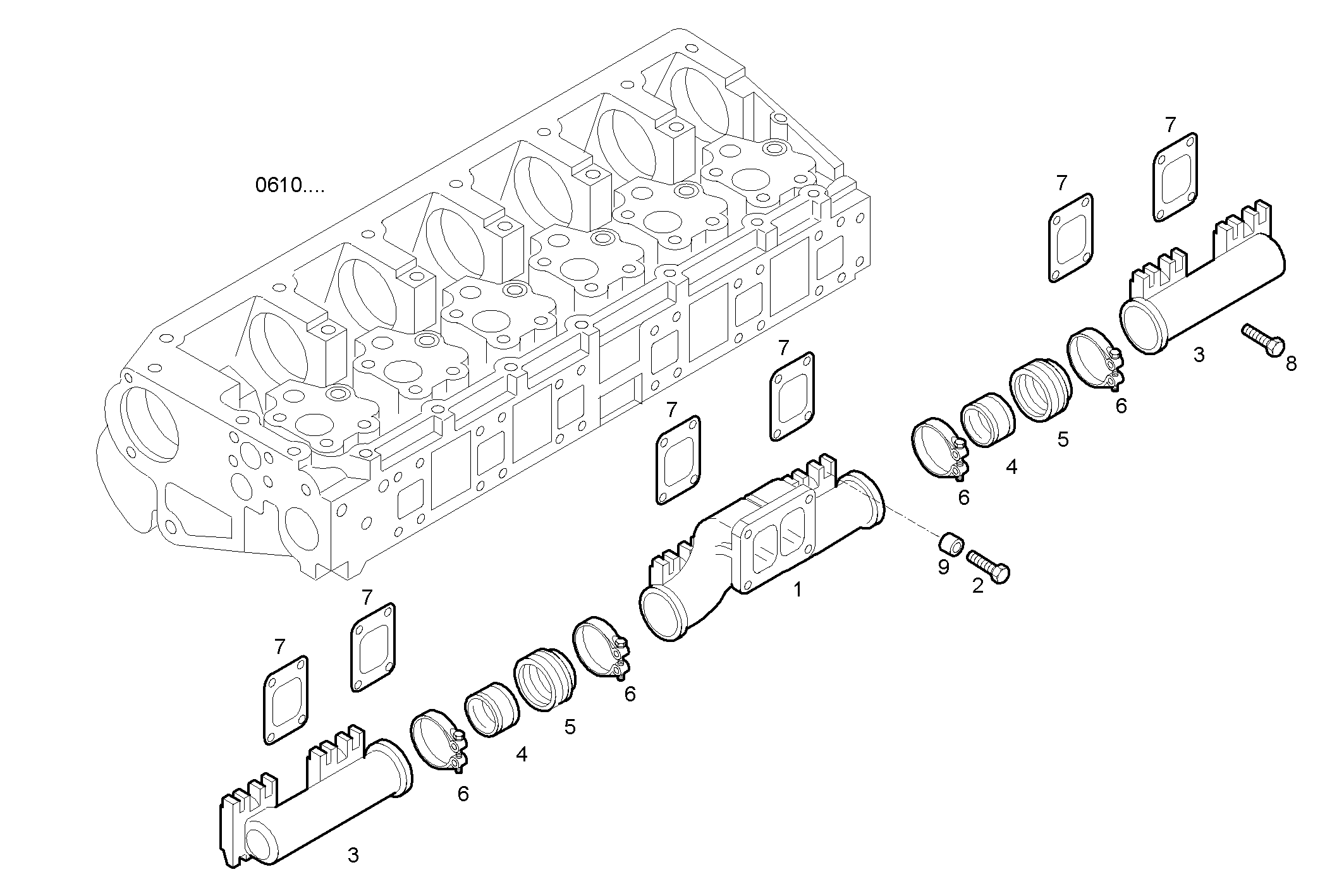

EXHAUST MANIFOLD
Assembly ID: 0780.026
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504238690 | EXHAUST MANIFOLD | 1 | ||
| 2 | 504078465 | SCREW | 24 | ||
| 3 | 504030852 | EXHAUST MANIFOLD | 2 | ||
| 4 | 99443770 | CONNECTOR SLEEVE | 2 | ||
| 5 | 99443769 | RING | 2 | ||
| 6 | 500305816 | CLIP | 4 | ||
| 7 | 504154280 | EXH. MANIFOLD GKT | 6 | ||
| 8 | 99443210 | SCREW | 24 | ||
| 9 | 504074155 | SPACING BAR | 24 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3CE0684B*E003 | CURSOR 13 TCD - TIER 3 | view |
| F3CE0684A*E001 | CURSOR 13 TCD - TIER 3 | view |
| F3CE0684C*E002 | CURSOR 13 TCD - TIER 3 | view |
| F3CE0684E*E004 | CURSOR 13 TCD - TIER 3 | view |
| F3CE0684B*E005 | CURSOR 13 TCD - TIER 3 | view |
