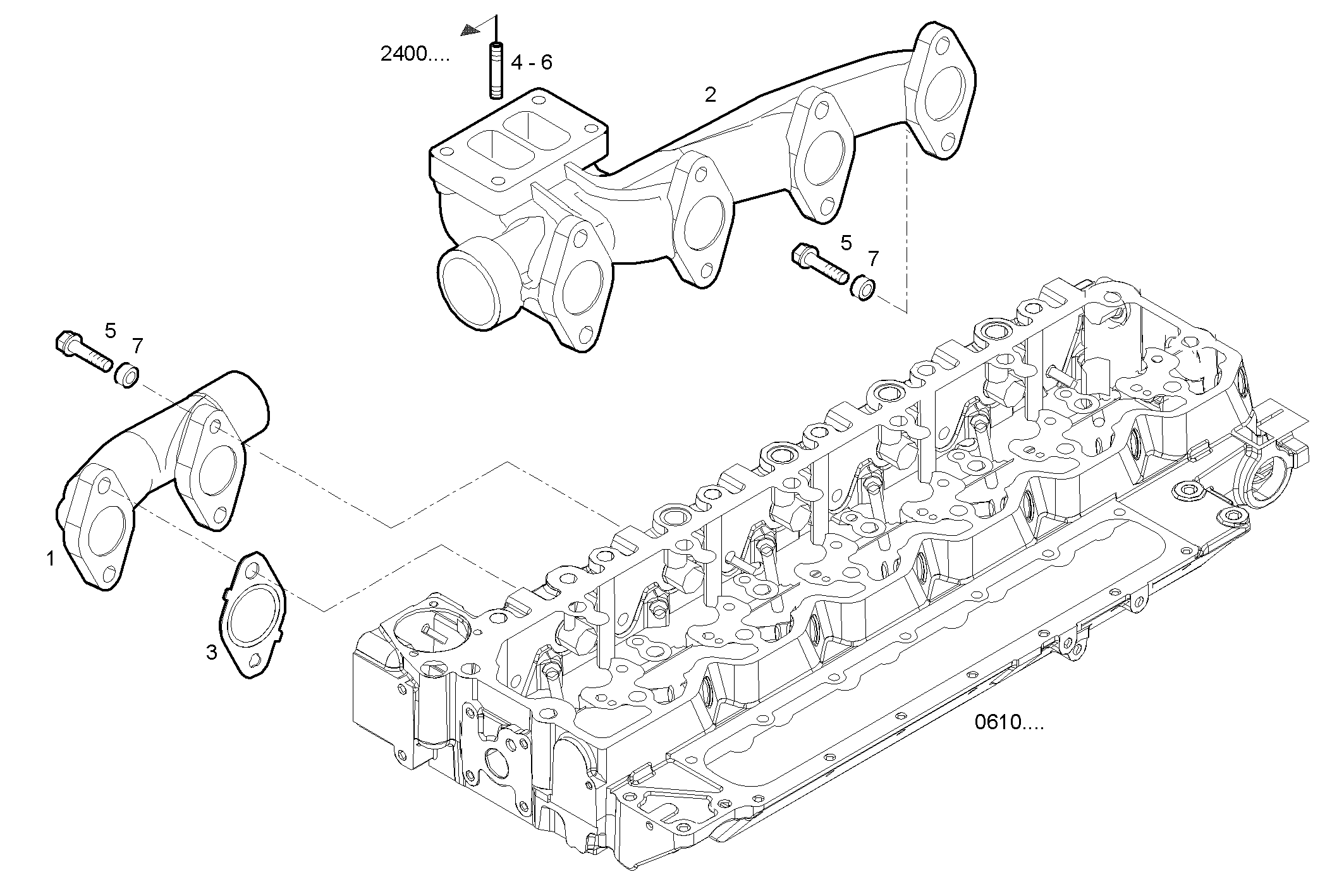

EXHAUST MANIFOLD
Assembly ID: 0780.047
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 2831205 | EXHAUST MANIFOLD | 1 | ||
| 2 | 504078426 | EXHAUST MANIFOLD | 1 | ||
| 3 | 2830444 | EXH. MANIFOLD GKT | 6 | ||
| 4 | 4899085 | STUD | 3 | ||
| 5 | 504085705 | HEXAGON BOLT | 12 | ||
| 6 | 16731434 | STUD | 1 | ||
| 7 | 2831209 | SPACING BAR | 12 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4DE9684A*J100 | NEF 6 electron. - TIER 3 | view |
| F4DE9684Q*J100 | NEF 6 electron. - TIER 3 | view |
| F4DE9684W*J100 | NEF 6 electron. - TIER 3 | view |
| F4HE9684A*J100 | NEF 6 electron. - TIER 3 | view |
| F4HE9684Q*J100 | NEF 6 electron. - TIER 3 | view |
| F4HE9684W*J100 | NEF 6 electron. - TIER 3 | view |
| F4DE9684W*J101 | NEF 6 electron. - TIER 3 | view |
| F4DE9684Q*J101 | NEF 6 electron. - TIER 3 | view |
| F4DE9684A*J101 | NEF 6 electron. - TIER 3 | view |
| F4DE9684A*J102 | NEF 6 electron. - TIER 3 | view |
| F4DE9684Q*J102 | NEF 6 electron. - TIER 3 | view |
| F4DE9684W*J102 | NEF 6 electron. - TIER 3 | view |
| F4HE9684A*J101 | NEF 6 electron. - TIER 3 | view |
| F4HE9684Q*J101 | NEF 6 electron. - TIER 3 | view |
| F4HE9684W*J102 | NEF 6 electron. - TIER 3 | view |
