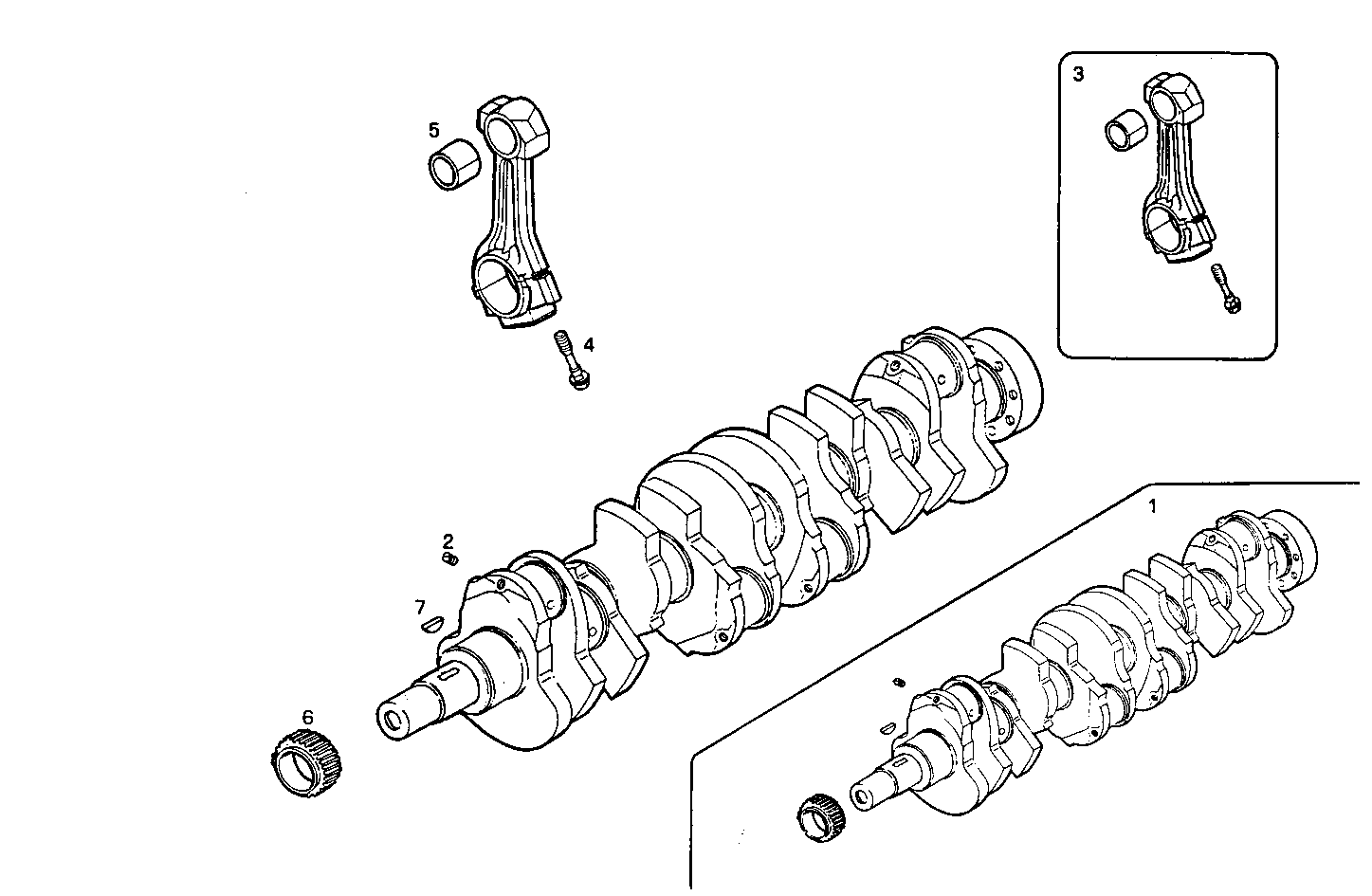

CRANK SHAFT - CONNECTING RODS
Assembly ID: 0800.014
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4832171 | CRANK SHAFT | 1 | ||
| 2 | 38952312 | LOCK PLUG | 6 | ||
| 3 | 4821454 | CONN.ROD ASSY. | 6 | ||
| 4 | 4722162 | BIG-END BOLT | 12 | ||
| 5 | 4803660 | BIG-END BUSH | 6 | ||
| 6 | 4861875 | TIMING DRIVE GEAR | 1 | ||
| 7 | 8817913 | KEY | 1 |
