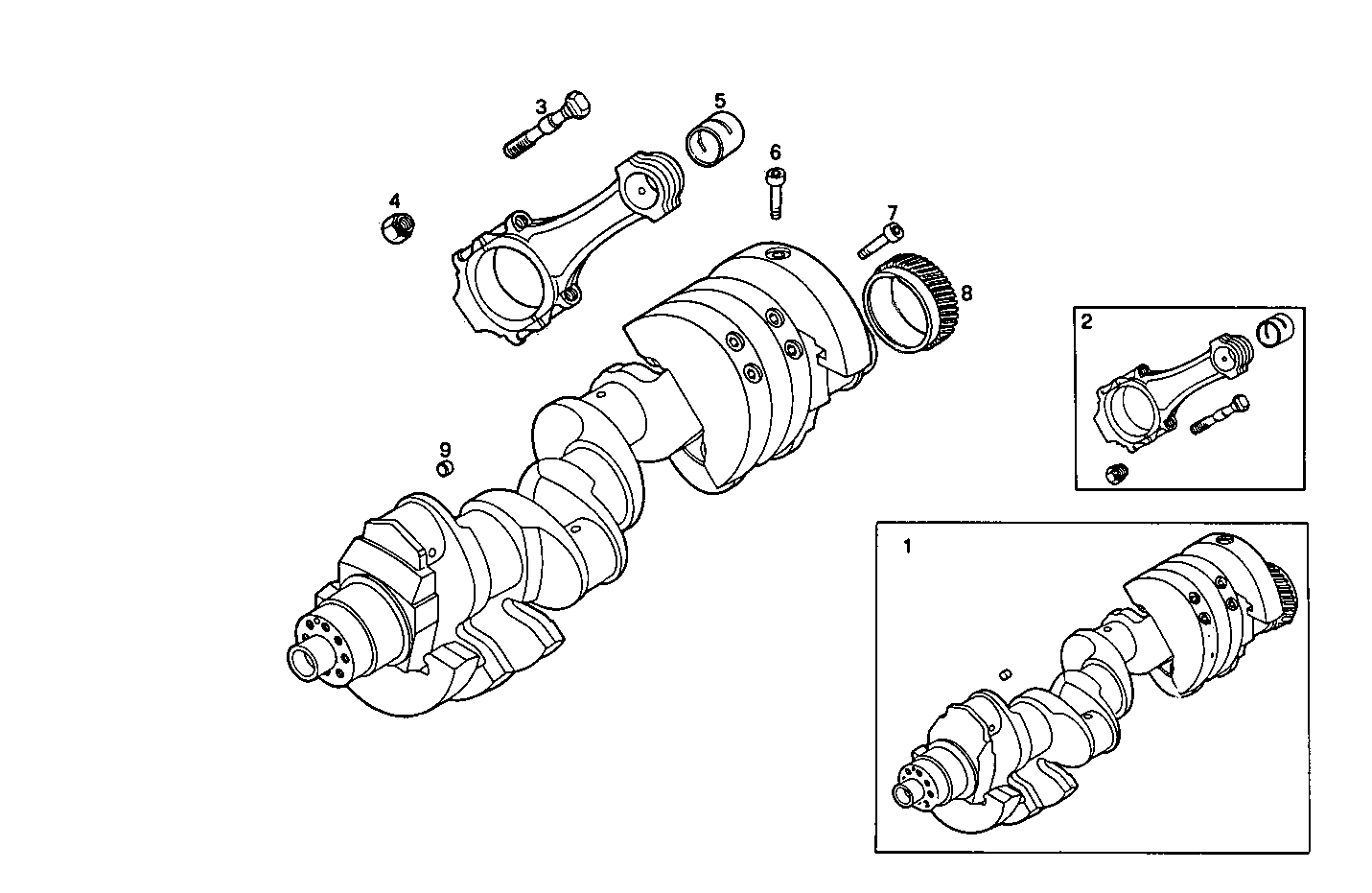

CRANK SHAFT - CONNECTING RODS
Assembly ID: 0800.026
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4814975 | CRANK SHAFT | 1 | ||
| 2 | 4815044 | CONN.ROD ASSY. | 8 | ||
| 3 | 4693050 | BIG-END BOLT | 16 | ||
| 4 | 4693706 | BIG END NUT | 16 | ||
| 5 | 4800461 | BIG-END BUSH | 8 | ||
| 6 | 4687338 | SOCKET-HEAD SCREW | 4 | ||
| 7 | 4687337 | SOCKET-HEAD SCREW | 8 | ||
| 8 | 4671822 | OIL PUMP DRIV.GEA | 1 | ||
| 9 | 14281970 | LOCK PLUG | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| GE8281SRM44.10A60E | GE8281SRM44 | view |
| GE8281SRM44.10A61E | GE8281SRM44 | view |
| GE8281SRM44.10A62E | GE8281SRM44 | view |
| GE8281SRM44.10A67E | GE8281SRM44 | view |
| GE8281SRM44.30A60E | GE8281SRM44 | view |
| 8281i03.00 | 8281i03 | view |
| 8281Si10.00 | 8281Si10 | view |
| 8281Si15.00 | 8281Si15 | view |
| 8281SRi10.00 | 8281SRi10 | view |
| 8281SRM44.10 | 8281SRM44 | view |
| 8281SRM44.30 | 8281SRM44 | view |
| 8281SRM70.10 | 8281SRM70 | view |
| 8281SRM70.11 | 8281SRM70 | view |
| 8281SRM70.30 | 8281SRM70 | view |
| 8281M32.10 | 8281M32 | view |
| 8281M32.30 | 8281M32 | view |
| 8281SRM70.40 | 8281SRM70 | view |
| 8281SM32.10 | 8281SM32 | view |
| GE8281M32.30A001 | GE8281M32 | view |
| 8281I03.00A803 | 8281i03 | view |
| PU8281SI10.00A103 | PU8281Si10 | view |
| PU8281SRI10.00A102 | PU8281SRI10 | view |
