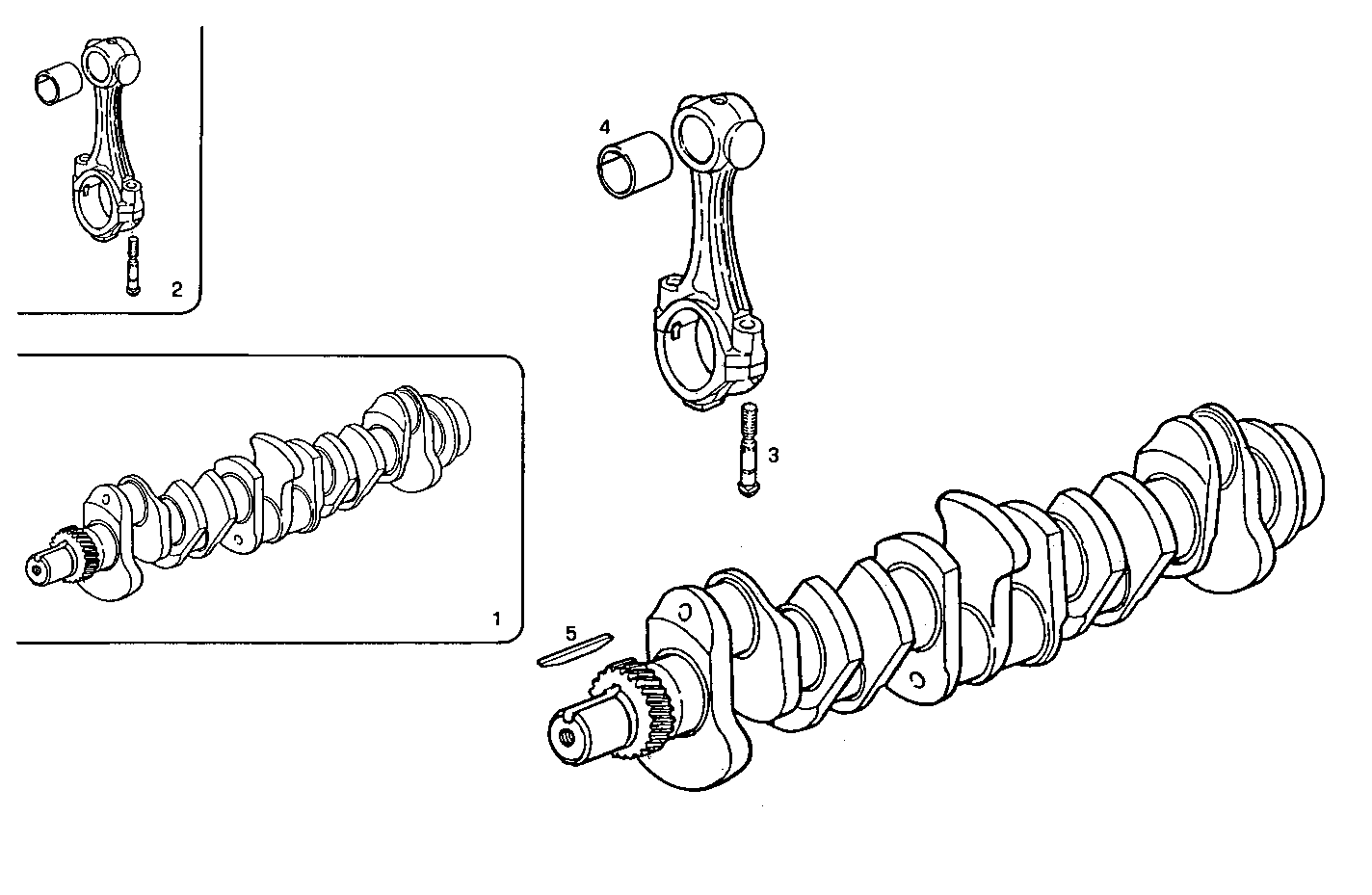

CRANK SHAFT - CONNECTING RODS
Assembly ID: 0800.034
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 81869025 | CRANK SHAFT | 1 | ||
| 2 | 81875622 | CONN.ROD ASSY. | 6 | ||
| 3 | 83991682 | SCREW | 12 | ||
| 4 | 87840995 | BUSH | 6 | ||
| 5 | 83956433 | KEY | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| GE7675i15.05A905 | GE7675i15 | view |
| GE7675G86.05A70E | GE7675G86 | view |
| GE7675G86.05A71E | GE7675G86 | view |
| 7675G75.05C001 | 7675G75 | view |
| 7675G76.05C001 | 7675G76 | view |
| 7675G86.05C001 | 7675G86 | view |
| 7675i10.05 | 7675i10 | view |
| 7675i15.05 | 7675i15 | view |
| PU7675i10.05A100 | PU7675i10 | view |
| 7675i10.05A800 | 7675i10 | view |
| 7675i15.05A520 | 7675i15 | view |
| 7675G75.05A600 | 7675G75 | view |
| 7675G76.05A600 | 7675G76 | view |
| 7675G86.05A502 | 7675G86 | view |
