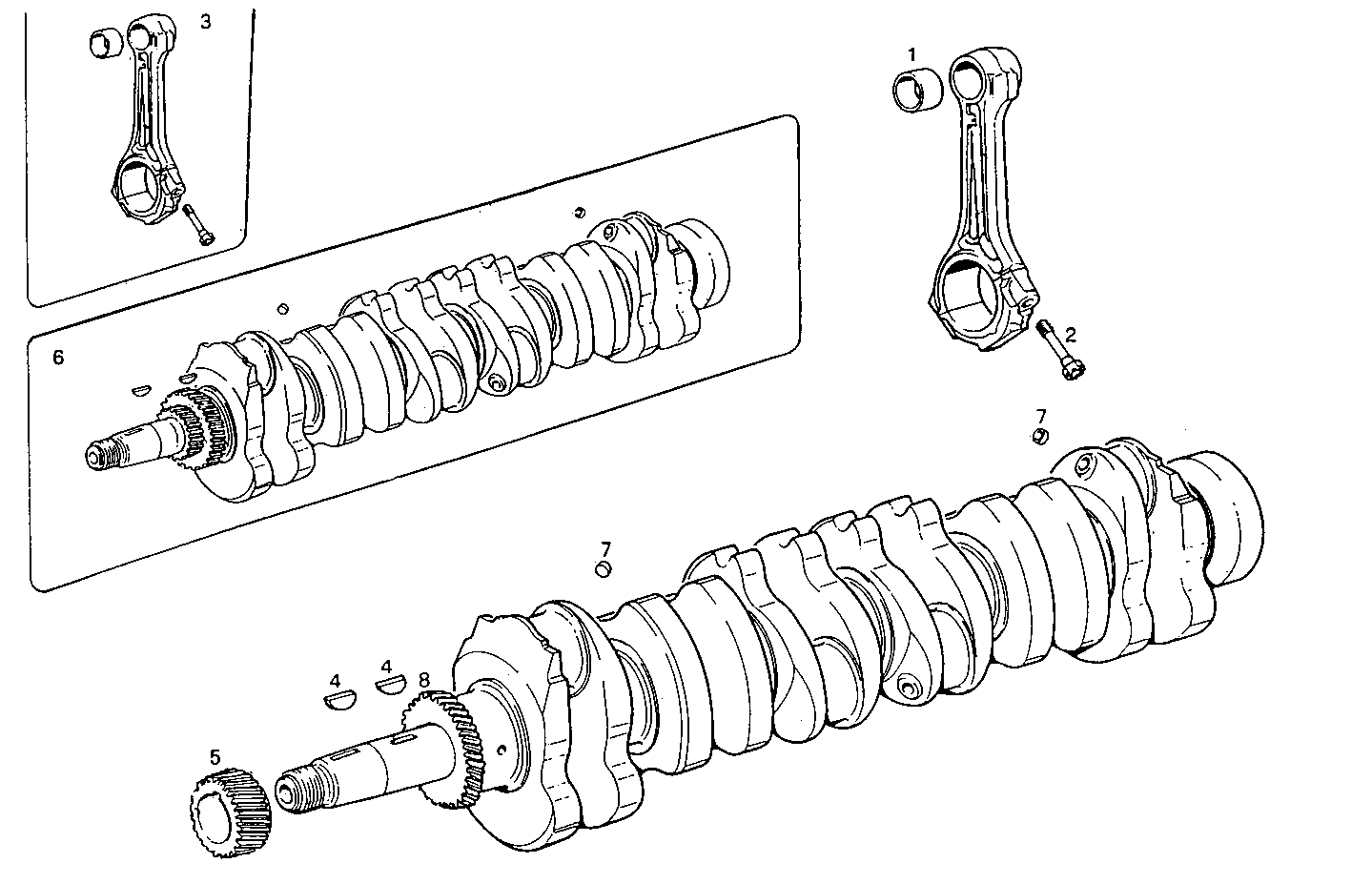

CRANK SHAFT - CONNECTING RODS
Assembly ID: 0800.036
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 98459977 | BIG-END BUSH | 6 | ||
| 2 | 4780627 | BIG-END BOLT | 12 | ||
| 3 | 99472584 | CONN.ROD ASSY. | 1 | ||
| 4 | 4655844 | KEY | 2 | ||
| 5 | 4809524 | TIMING DRIVE GEAR | 1 | ||
| 6 | 8017180 | CRANK SHAFT | 1 | ||
| 7 | 16987601 | PLUG | 6 | ||
| 8 | 4770255 | OIL PUMP DRIV.GEA | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8061SRM33.10 | 8061SRM33 | view |
| 8061SRM33.40 | 8061SRM33 | view |
