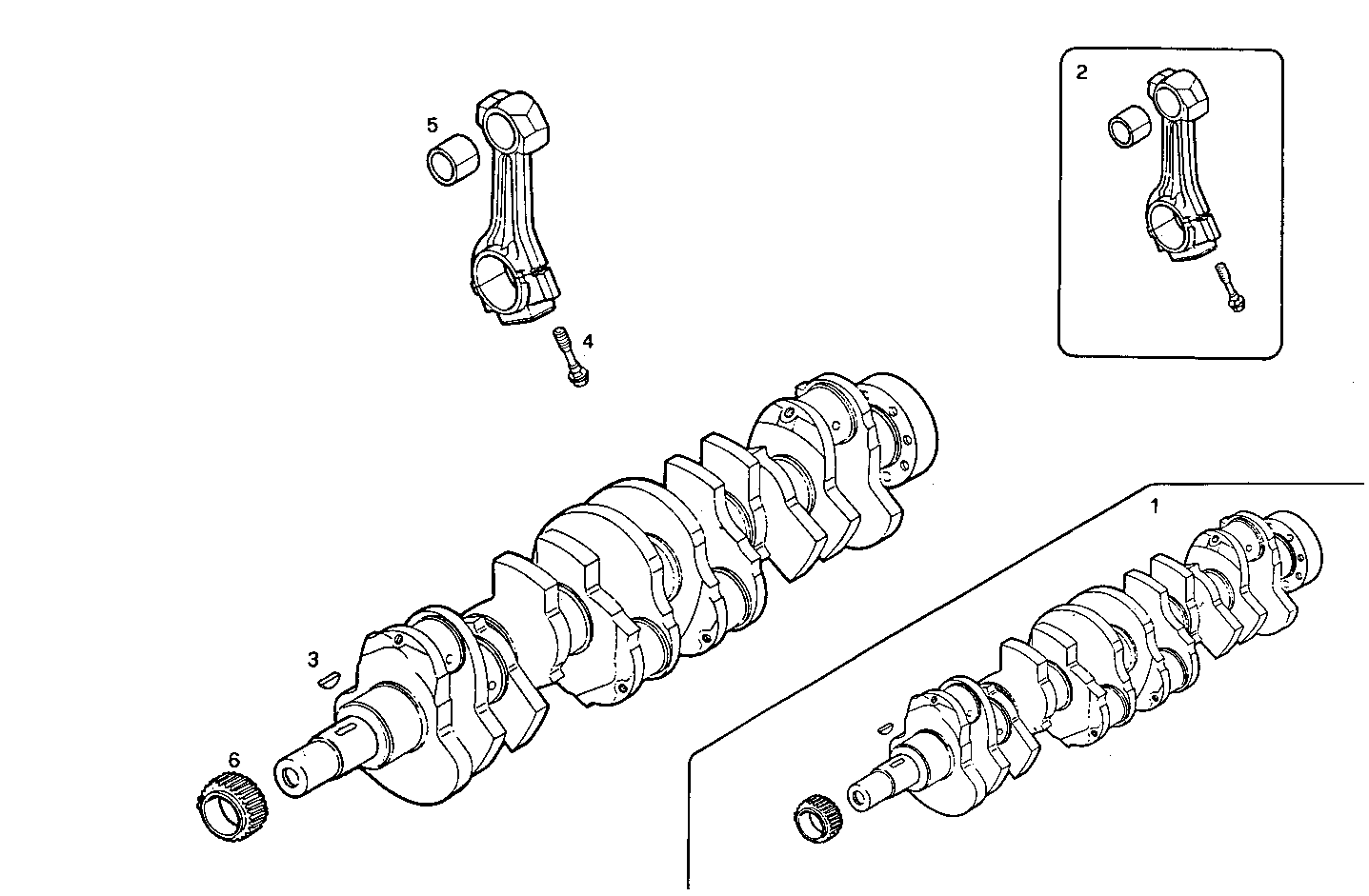

CRANK SHAFT - CONNECTING RODS
Assembly ID: 0800.037
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4851914 | CRANK SHAFT | 1 | ||
| 2 | 4852757 | CONN.ROD ASSY. | 6 | ||
| 3 | 8817913 | KEY | 1 | ||
| 4 | 4722162 | BIG-END BOLT | 12 | ||
| 5 | 4803660 | BIG-END BUSH | 6 | ||
| 6 | 4861824 | OIL PUMP DRIV.GEA | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8361SRi12.00 | 8361SRi12 | view |
| 8361SRE11.00 | 8361SRE11 | view |
| 8361SRE11.00A001 | 8361SRE11 | view |
| 8361SRI12.00A800 | 8361SRi12 | view |
