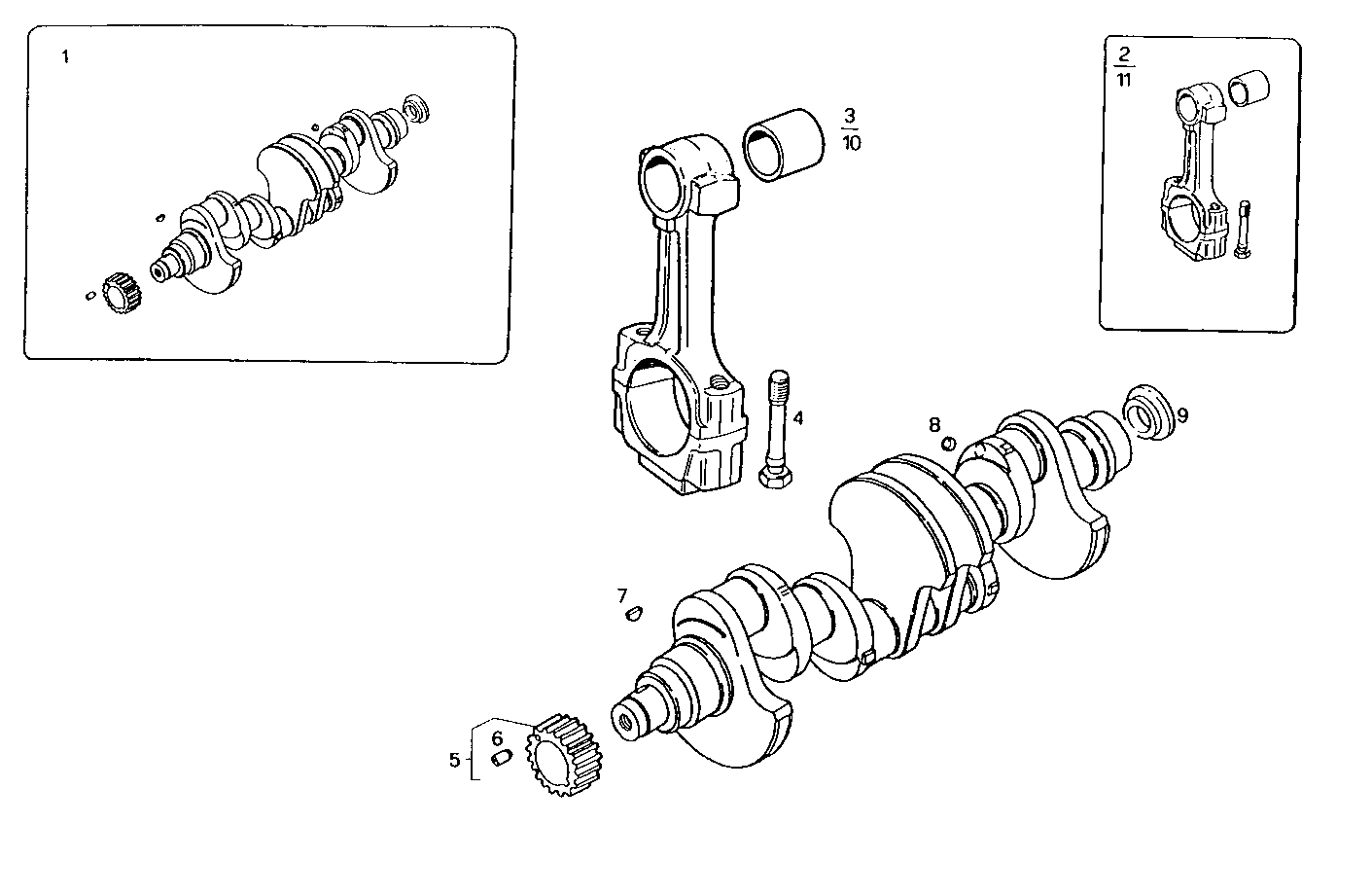

CRANK SHAFT - CONNECTING RODS
Assembly ID: 0800.065
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 99436244 | CRANK SHAFT | 1 | ||
| 2 | 7473171 | CONN.ROD ASSY. | 4 | ||
| 3 | 7302028 | BIG-END BUSH | 4 | ||
| 4 | 98460577 | BIG-END BOLT | 8 | ||
| 5 | 98419244 | CAMSHAFT PINION | 1 | ||
| 6 | 10332010 | PARALLEL PIN | 1 | ||
| 7 | 4655844 | KEY | 1 | ||
| 8 | 14328101 | LOCK PLUG | 4 | ||
| 9 | 98426373 | CENTERING RING | 1 | ||
| 10 | 500329617 | BIG-END BUSH | 4 | ||
| 11 | 500352497 | CONN.ROD ASSY. | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8140SC23.00 | 8140SC23 | view |
| 8140SC23.00A002 | 8140SC23 | view |
| 8140SRC20.10 | 8140SRC20 | view |
| 8140SC00.10 | 8140SC00 | view |
| 8140SC23.00A005 | 8140SC23 | view |
| 8140SC23.00A010 | 8140SC23 | view |
| 8140SRC20.30 | 8140SRC20 | view |
| 8140SC00.20 | 8140SC00 | view |
| 8140.43.3931 | 8140.43 | view |
| 8140SE00.00 | 8140SE00 | view |
| 8140SE00.00A012 | 8140SE00 | view |
| 8140SE00.00A015 | 8140SE00 | view |
| 8140SE00.00A016 | 8140SE00 | view |
