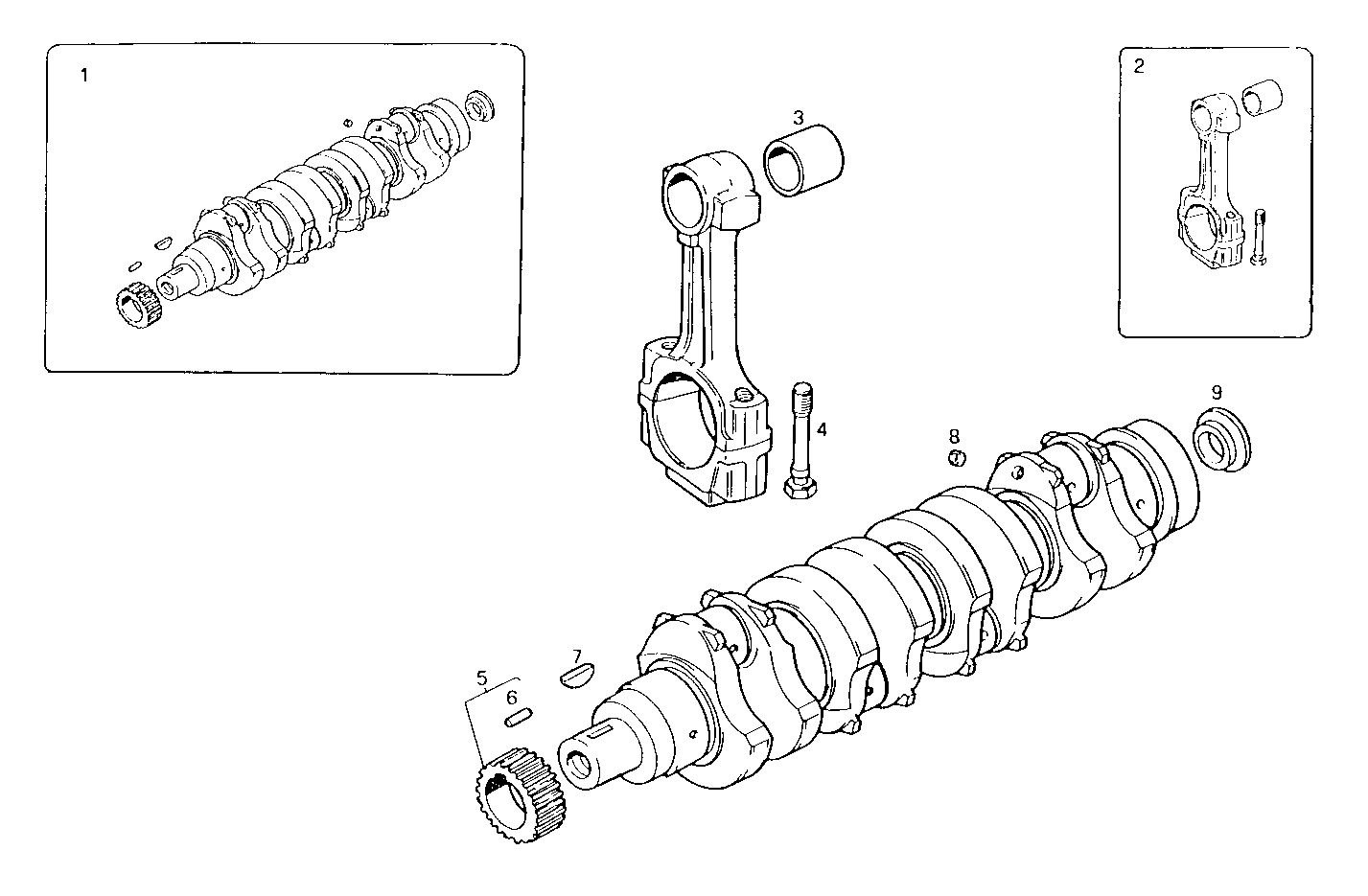

CRANK SHAFT - CONNECTING RODS
Assembly ID: 0800.068
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 500314779 | CRANK SHAFT | 1 | ||
| 2 | 500352497 | CONN.ROD ASSY. | 4 | ||
| 3 | 500329617 | BIG-END BUSH | 4 | ||
| 4 | 98460577 | BIG-END BOLT | 8 | ||
| 5 | 98419244 | CAMSHAFT PINION | 1 | ||
| 6 | 10332010 | PARALLEL PIN | 1 | ||
| 7 | 4655844 | KEY | 1 | ||
| 8 | 14328101 | LOCK PLUG | 4 | ||
| 9 | 98426373 | CENTERING RING | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8140C00.00A006 | 8140C00 | view |
| 8141C00.00 | 8141C00 | view |
| 8141E00.00 | 8141E00 | view |
| 8141.67F.3000 | 8141.67F | view |
