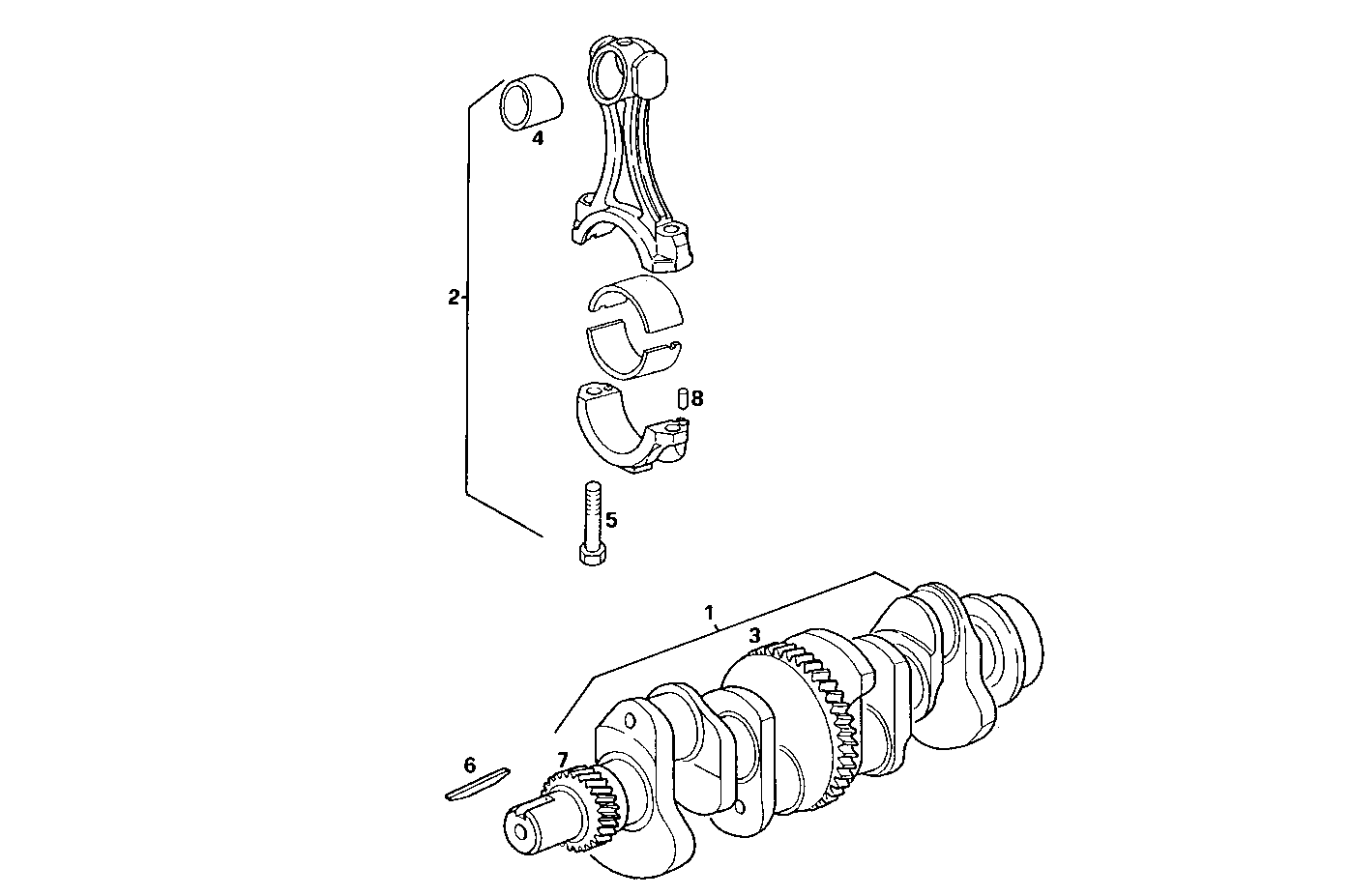

CRANK SHAFT - CONNECTING RODS
Assembly ID: 0800.085
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 87800523 | CRANK SHAFT | 1 | ||
| 2 | 87801219 | CONN.ROD ASSY. | 4 | ||
| 3 | 81872682 | GEAR | 1 | ||
| 4 | 87840994 | BUSH | 4 | ||
| 5 | 83991682 | SCREW | 8 | ||
| 6 | 83999925 | KEY | 1 | ||
| 7 | 83998053 | GEAR | 1 | ||
| 8 | 83991680 | PIN | 8 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 7450SE00.00 | 7450SE00 | view |
| 7450SU00.00 | 7450SU00 | view |
