CRANK SHAFT

Assembly ID: 0801.000

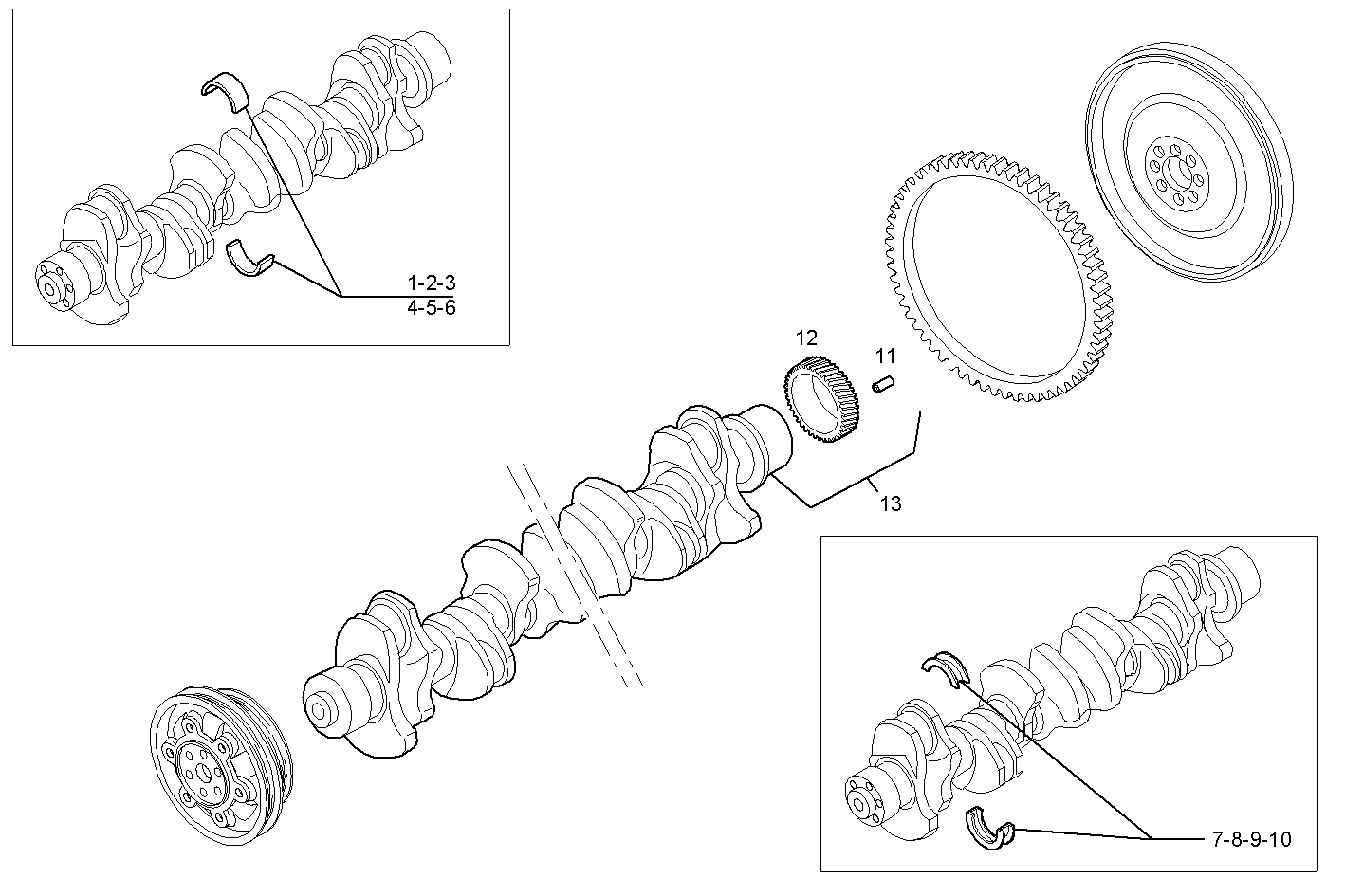

CRANK SHAFT

Parts

# Part number Description Note Quantity
1 2991500 MAIN BEARING SET STD 6
2 2991501 MAIN BEARING SET STD 6
3 2991502 MAIN BEAR.SET -0,127 6
4 2991503 MAIN BEAR.SET -0,127 6
5 2991504 MAIN BEAR.SET -0,254 6
6 2991505 MAIN BEAR.SET -0,508 6
7 2991506 THRUSTRING SET STD 1
8 2991507 THRUSTRING SET STD 1
9 2991510 THRUSTRING SET STD 1
10 2991511 THRUSTRING SET STD 1
11 99435760 DOWEL PIN 1
12 99482408 TIMING DRIVE GEAR 1
13 99485949 CRANK SHAFT 1

Applies to engines

Engine Family
C78ENTD20.00 CURSOR 8 - TIER 2 view
F2BE0684B*B131 CURSOR 8 - TIER 2 view
C78ENTE20.00 CURSOR 8 - TIER 2 view
F2BE0687A*B301 CURSOR 8 - TIER 2 view
F2BE0687B*B301 CURSOR 8 - TIER 2 view
F2BE0687C*B301 CURSOR 8 - TIER 2 view
C78ENTM50.11 CURSOR 8 view
C78ENTM50.11A001 CURSOR 8 view
C78ENTE20.00A001 CURSOR 8 - TIER 2 view
C78ENTM30.10-D 01/04 CURSOR 8 view
F2BE0686C*B201 CURSOR 8 view
C78ENTM30.10A002 CURSOR 8 view
C78ENTM55.10 CURSOR 8 view
C78ENTM55.10A001 CURSOR 8 view
C78ENTD20.00A800 CURSOR 8 - TIER 2 view
F2BE0642A*A002 CURSOR 8 CNG view
F2BE0642A*A003 CURSOR 8 CNG view
F2BE0681A*BC13 CURSOR 8 - EURO 3 view
C78ENTC26.00A004 CURSOR 8 - EURO 3 view
C78ENSM20.10 CURSOR 8 view
C78ENAM12.00 CURSOR 8 view
F2BE0682F*B403 CURSOR 8 - EURO 3 view
PUC78ENTD20.00A100 CURSOR 8 - TIER 2 view
C78ENTC25.00A003 CURSOR 8 - EURO 3 view
F2BE0642B*A001 CURSOR 8 CNG view
C78ENSM20.30 CURSOR 8 view
F2BE3681B*U056 CURSOR 8 - EURO 5 view
F2BE4683A*E001 CURSOR 8 CE 04/26 STAGE III B view
F2BE0642F*B007 CURSOR 8 CNG view
F2BE0687A*B302 CURSOR 8 - TIER 2 view
C78ENTD20.20 CURSOR 8 - TIER 2 view
PUC78ENTD20.20A100 CURSOR 8 - TIER 2 view
F2BE0642A*A009 CURSOR 8 CNG view
C78ENTG20.00A001 CURSOR 8 CNG view
