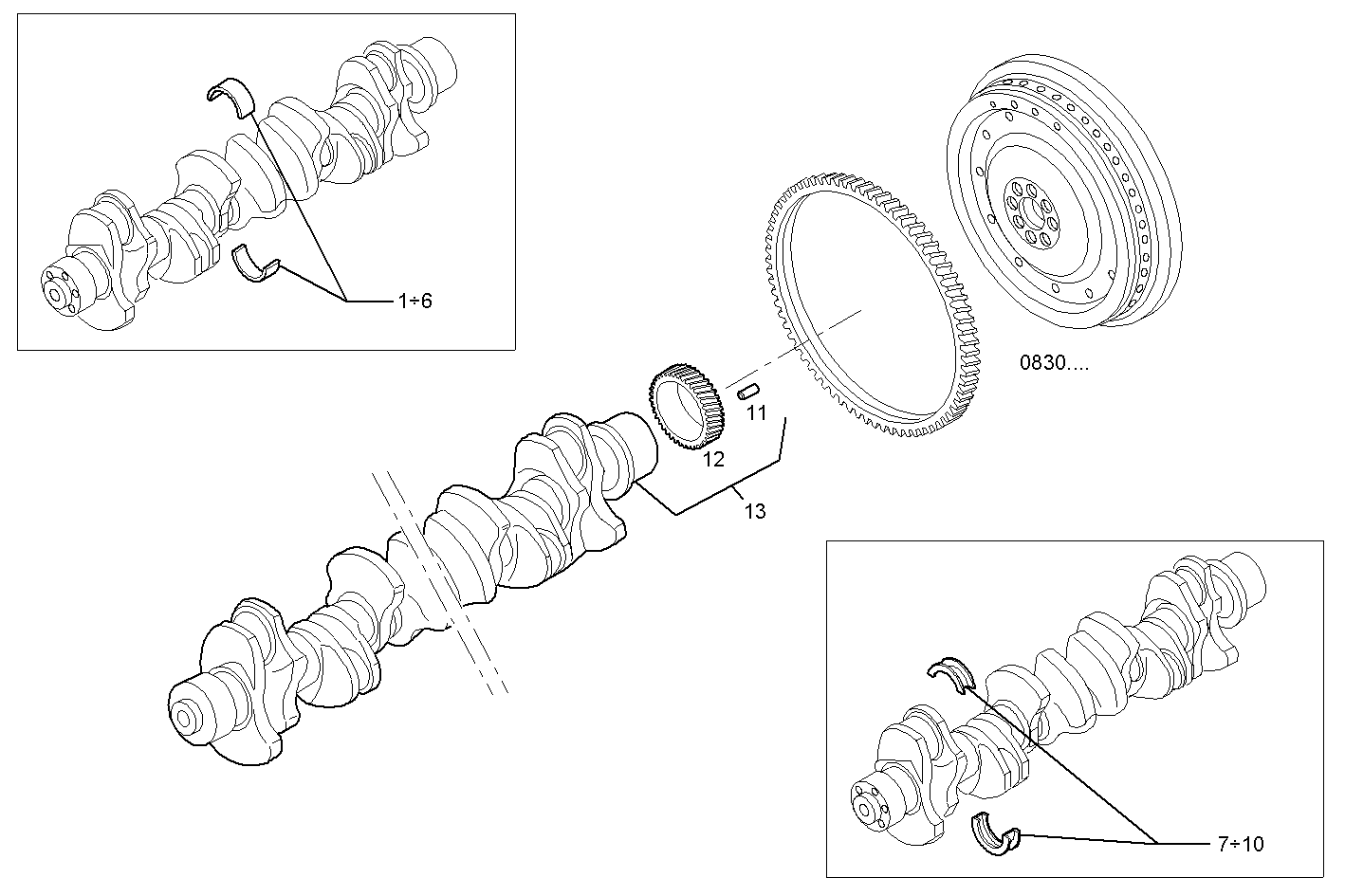

CRANK SHAFT

Assembly ID: 0801.001

CRANK SHAFT

Parts

# Part number Description Note Quantity
1 2992137 MAIN BEARING SET STD 6
2 2992138 MAIN BEARING SET STD 6
3 2992139 MAIN BEAR.SET -0,127 6
4 2992140 MAIN BEAR.SET -0,127 6
5 2992141 MAIN BEAR.SET -0,254 6
6 2992142 MAIN BEAR.SET -0,508 6
7 2992143 THRUSTRING SET STD 1
8 2992144 THRUSTRING SET STD 1
9 2992146 THRUSTRING SET+0.508 1
10 2992145 THRUSTRING SET+0.254 1
11 17275410 DOWEL PIN 1
12 99437423 GEAR 1
13 99438979 CRANK SHAFT 1

Applies to engines

Engine Family
F3BE0684A*B002 CURSOR 13 - TIER 2 view
F3BE0684E*B003 CURSOR 13 - TIER 2 view
F3BE0687A*B301 CURSOR 13 - TIER 2 view
C13ENTD20.00 CURSOR 13 - TIER 2 view
C13ENTE20.00 CURSOR 13 - TIER 2 view
C78ENTE20.00A002 CURSOR 8 - TIER 2 view
GECURSOR400ES.R990 GECURSOR 13 - 2002/88/CE view
F3BE0684E*B101 CURSOR 13 - TIER 2 view
F3BE0686A*B101 CURSOR 13 view
F3BE0685A*B001 CURSOR 13 - TIER 2 view
C13ENTE60.00 CURSOR 13 - TIER 2 view
GECURSOR400E.R990 GECURSOR 13 - TIER 2 view
CURSOR13TE3.A003 CURSOR 13 - TIER 2 view
C13ENTE61.00 CURSOR 13 - TIER 2 view
C13ENTE62.00 CURSOR 13 - TIER 2 view
CURSOR13TE2.A001 CURSOR 13 - TIER 2 view
CURSOR13TE2.A002 CURSOR 13 - TIER 2 view
C13ENTM77.10 CURSOR 13 view
F3BE0686C*B201 CURSOR 13 view
C13ENTM50.10 CURSOR 13 view
C13ENTD20.00A800 CURSOR 13 - TIER 2 view
CURSOR13TE3.A001 CURSOR 13 - TIER 2 view
CURSOR13TE3.A002 CURSOR 13 - TIER 2 view
CURSOR13TE1.A001 CURSOR 13 - TIER 2 view
CURSOR13TE1.A002 CURSOR 13 - TIER 2 view
GECURSOR300E.R990 GECURSOR 13 - TIER 2 view
GECURSOR350E.R990 GECURSOR 13 - TIER 2 view
C13ENTI20.00 CURSOR 13 - TIER 2 view
C13ENTI20.00A100 CURSOR 13 - TIER 2 view
F3BE0684G*E901 CURSOR 13 - TIER 3 view
F3BE0684H*E902 CURSOR 13 - TIER 3 view
CURSOR13TE1.A003 CURSOR 13 - TIER 2 view
F3BE9685A*E001 CURSOR 13 - TIER 3 view
C13ENTX60.00 CURSOR 13 - TIER 3 view
C13ENTX61.00 CURSOR 13 - TIER 3 view
C13ENTX62.00 CURSOR 13 - TIER 3 view
CURSOR13TE1.A559 CURSOR 13 - TIER 2 view
GECURSOR300E.A551 GECURSOR 13 - TIER 2 view
GECURSOR300E.A71M GECURSOR 13 - TIER 2 view
CURSOR13TE2.A559 CURSOR 13 - TIER 2 view
GECURSOR350E.A551 GECURSOR 13 - TIER 2 view
GECURSOR350E.A71M GECURSOR 13 - TIER 2 view
CURSOR13TE3.A559 CURSOR 13 - TIER 2 view
GECURSOR400E.A551 GECURSOR 13 - TIER 2 view
GECURSOR400E.A71M GECURSOR 13 - TIER 2 view
C13ENSM33.10 CURSOR 13 view
C13ENAM19.00 CURSOR 13 view
F3BE0684H*E901 CURSOR 13 - TIER 3 view
CURSOR13TE3X.R991 CURSOR 13 - TIER 3 view
F3BE9687A*E001 CURSOR 13 - TIER 3 view
C13ENSM33.30 CURSOR 13 view
C13ENTX20.00 CURSOR 13 - TIER 3 view
C13ENTX20.00A800 CURSOR 13 - TIER 3 view
C13ENTX20.00A801 CURSOR 13 - TIER 3 view
F3BE0681M*B722 CURSOR 13 - EURO 3 view
F3BE0684J*E902 CURSOR 13 - TIER 3 view
C13ENTX20.00A802 CURSOR 13 - TIER 3 view
F3CE0684B*E003 CURSOR 13 TCD - TIER 3 view
C13ENTX20.00A005 CURSOR 13 - TIER 3 view
F3CE0684A*E001 CURSOR 13 TCD - TIER 3 view
F3BE0684N*E904 CURSOR 13 - TIER 3 view
F3BE0684Q*E901 CURSOR 13 - TIER 3 view
F3BE0684R*E901 CURSOR 13 - TIER 3 view
F3BE0684N*E903 CURSOR 13 - TIER 3 view
PUC13ENTD20.00 CURSOR 13 - TIER 2 view
PUC13ENTD20.00A100 CURSOR 13 - TIER 2 view
GECURSOR350ES.R990 GECURSOR 13 - 2002/88/CE view
GECURSOR350ES.A71M GECURSOR 13 - 2002/88/CE view
GECURSOR350ES.A551 GECURSOR 13 - 2002/88/CE view
GECURSOR350ES.A001 GECURSOR 13 - 2002/88/CE view
CURSOR13TE2S.A559 CURSOR 13 - 2002/88/CE view
CURSOR13TE2S.A004 CURSOR 13 - 2002/88/CE view
CURSOR13TE2S.A003 CURSOR 13 - 2002/88/CE view
CURSOR13TE2S.A002 CURSOR 13 - 2002/88/CE view
CURSOR13TE2S.A001 CURSOR 13 - 2002/88/CE view
F3CE0684C*E002 CURSOR 13 TCD - TIER 3 view
CURSOR13TE3S.A001 CURSOR 13 - 2002/88/CE view
F3BE0684Q*E905 CURSOR 13 - TIER 3 view
F3BE0684R*E905 CURSOR 13 - TIER 3 view
F3BE0685A*B101 CURSOR 13 - 2002/88/CE view
C13ENTA60.00 CURSOR 13 - 2002/88/CE view
CURSOR13TE3A.A001 CURSOR 13 - 2002/88/CE view
CURSOR13TE3A.A002 CURSOR 13 - 2002/88/CE view
CURSOR13TE3A.A003 CURSOR 13 - 2002/88/CE view
CURSOR13TE3A.A559 CURSOR 13 - 2002/88/CE view
CURSOR13TE3A.S550 CURSOR 13 - 2002/88/CE view
GECURSOR400EA.A001 GECURSOR 13 - 2002/88/CE view
GECURSOR400EA.A551 GECURSOR 13 - 2002/88/CE view
GECURSOR400EA.A71M GECURSOR 13 - 2002/88/CE view
GECURSOR400EA.R990 GECURSOR 13 - 2002/88/CE view
C13ENTA61.00 CURSOR 13 - 2002/88/CE view
CURSOR13TE2A.A001 CURSOR 13 - 2002/88/CE view
CURSOR13TE2A.A002 CURSOR 13 - 2002/88/CE view
CURSOR13TE2A.A003 CURSOR 13 - 2002/88/CE view
CURSOR13TE2A.A004 CURSOR 13 - 2002/88/CE view
CURSOR13TE2A.A559 CURSOR 13 - 2002/88/CE view
CURSOR13TE2A.S550 CURSOR 13 - 2002/88/CE view
GECURSOR350EA.A001 GECURSOR 13 - 2002/88/CE view
GECURSOR350EA.A551 GECURSOR 13 - 2002/88/CE view
GECURSOR350EA.A71M GECURSOR 13 - 2002/88/CE view
GECURSOR350EA.R990 GECURSOR 13 - 2002/88/CE view
F3CE0684E*E004 CURSOR 13 TCD - TIER 3 view
C13ENTM83.10 CURSOR 13 view
CURSOR13TE3X.A001 CURSOR 13 - TIER 3 view
CURSOR13TE2S.S550 CURSOR 13 - 2002/88/CE view
CURSOR13TE3S.S550 CURSOR 13 - 2002/88/CE view
F3BE0687A*B302 CURSOR 13 - TIER 2 view
C13ENTD20.20 CURSOR 13 - TIER 2 view
F3BE0685C*B001 CURSOR 13 - TIER 2 view
F3BE0684N*E906 CURSOR 13 - TIER 3 view
F3CE0684B*E005 CURSOR 13 TCD - TIER 3 view
CURSOR13TE3X.A008 CURSOR 13 - TIER 3 view
C13ENTM50.30 CURSOR 13 view
GECURSOR300E.A001 GECURSOR 13 - TIER 2 view
GECURSOR350E.A001 GECURSOR 13 - TIER 2 view
GECURSOR400E.A001 GECURSOR 13 - TIER 2 view
CURSOR13TE2.A003 CURSOR 13 - TIER 2 view
CURSOR13TE3S.A003 CURSOR 13 - 2002/88/CE view
CURSOR13TE3X.A011 CURSOR 13 - TIER 3 view
PUC13ENTD20.20A100 CURSOR 13 - TIER 2 view
F3BE3681B*R401 CURSOR 13 - EURO 4 view
F3BE3681B*R402 CURSOR 13 - EURO 4 view
F3BE3681B*R403 CURSOR 13 - EURO 4 view
F3BE3681B*R404 CURSOR 13 - EURO 4 view
C13ENTM50.12 CURSOR 13 view
CURSOR13TE3S.A002 CURSOR 13 - 2002/88/CE view
CURSOR13TE3S.S550 CURSOR 13 - 2002/88/CE view
CURSOR13TE3S.A559 CURSOR 13 - 2002/88/CE view
F3BE0684Q*E902 CURSOR 13 - TIER 3 view
