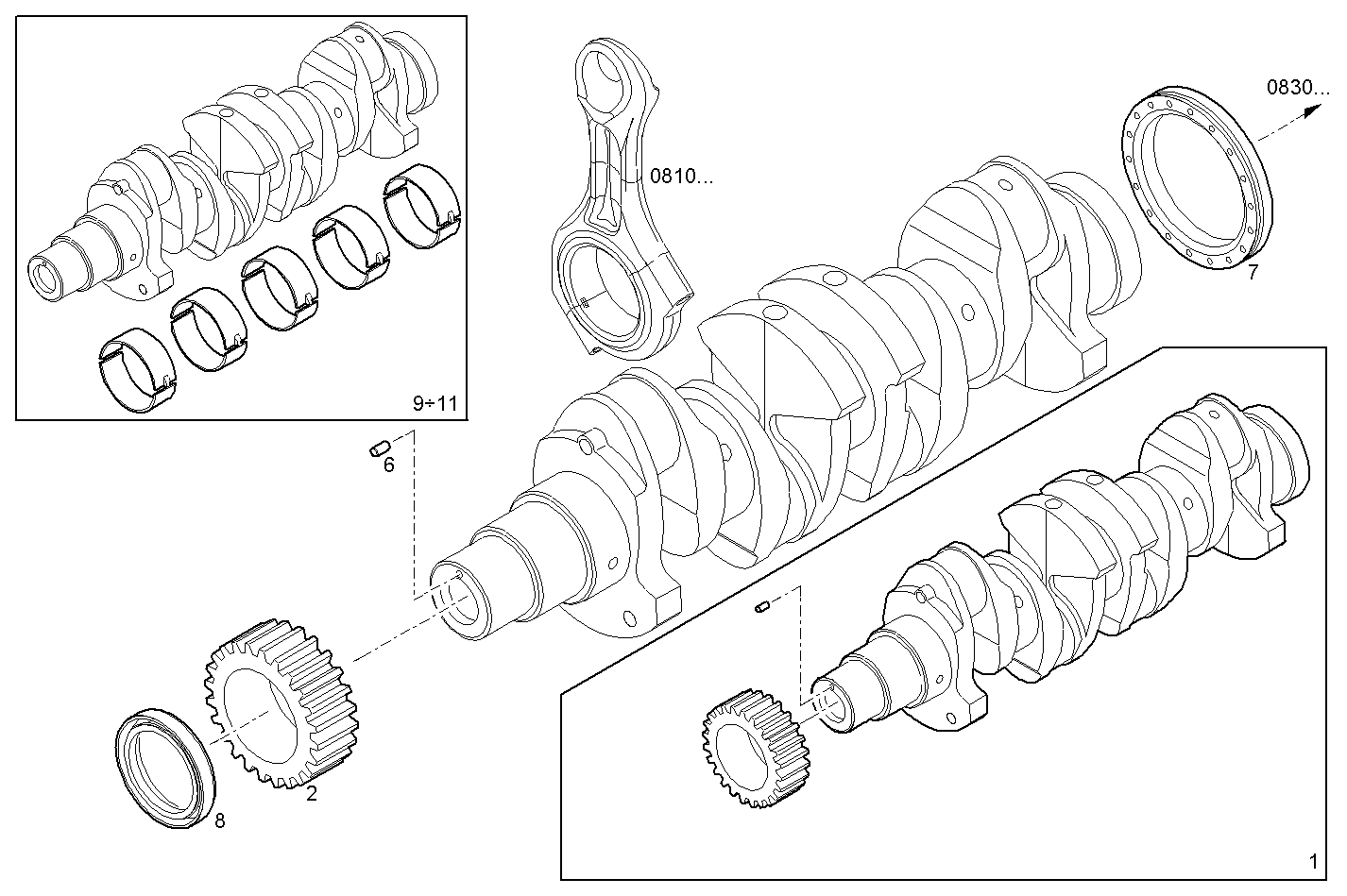

CRANK SHAFT

Assembly ID: 0801.030

CRANK SHAFT

Parts

# Part number Description Note Quantity
1 504276025 CRANK SHAFT 1
2 504240426 CAMSHAFT PINION 1
6 17236324 PIN 1
7 504014232 SHAFT SEAL 1
8 504056152 SHAFT SEAL 1
9 2995574 MAIN BEARING SET STD 1
10 2995575 MAIN BEAR.SET -0,254 1
11 2995576 MAIN BEAR.SET -0,508 1

Applies to engines

Engine Family
F5CE9454E*A005 F32 mechanic. - TIER 3 view
F5CE9454E*A001 F32 mechanic. - TIER 3 view
F5CE9454C*A001 F32 mechanic. - TIER 3 view
F5CE9454G*A001 F32 mechanic. - TIER 3 view
F5CE9454E*A004 F32 mechanic. - TIER 3 view
F5CE9454E*A002 F32 mechanic. - TIER 3 view
F5CE9459B*A001 F32 mechanic. - 2002/88/CE view
F5CE9405A*A001 F32 mechanic. - TIER 2 view
F5CE9454E*A006 F32 mechanic. - TIER 3 view
F32MNSX00.00 F32 mechanic. - TIER 3 view
F5CE0455A*B001 F32 mechanic. - 2002/88/CE view
F5CE9455B*A001 F32 mechanic. - TIER 3 view
F5CE9484G*A001 F32 mechanic. - TIER 3 view
F5CE9484B*A002 F32 mechanic. - TIER 3 view
F5CE0485A*B001 F32 mechanic. - TIER 2 view
F5CE9485B*A001 F32 mechanic. - TIER 3 view
F5CE0405A*B001 F32 mechanic. - 2002/88/CE view
F32MNTX88.00 F32 mechanic. - TIER 3 view
F32TM1X.A008 F32 mechanic. - TIER 3 view
F32MNSX00.00A800 F32 mechanic. - TIER 3 view
F32MNSA85.00A001 F32 mechanic. - 2002/88/CE view
F32MNSA85.10 F32 mechanic. - 2002/88/CE view
F32SM1A.S500 F32 mechanic. - 2002/88/CE view
GEF3240MA.R980 GEF32 mechanic. - 2008/88/CE view
F32MNTA85.00 F32 mechanic. - TIER 2 view
F32TM1A.S500 F32 mechanic. - 2002/88/CE view
GEF3250MA.R980 GEF32 mechanic. - 2008/88/CE view
F5CE9484E*A001 F32 mechanic. - TIER 3 view
F32MNTX20.00 F32 mechanic. - TIER 3 view
F32MNAA85.00 F32 mechanic. - 2002/88/CE view
F32MNTX20.00A800 F32 mechanic. - TIER 3 view
F32AM1A.S500 F32 mechanic. - 2002/88/CE view
GEF3230MA.R980 GEF32 mechanic. - 2008/88/CE view
