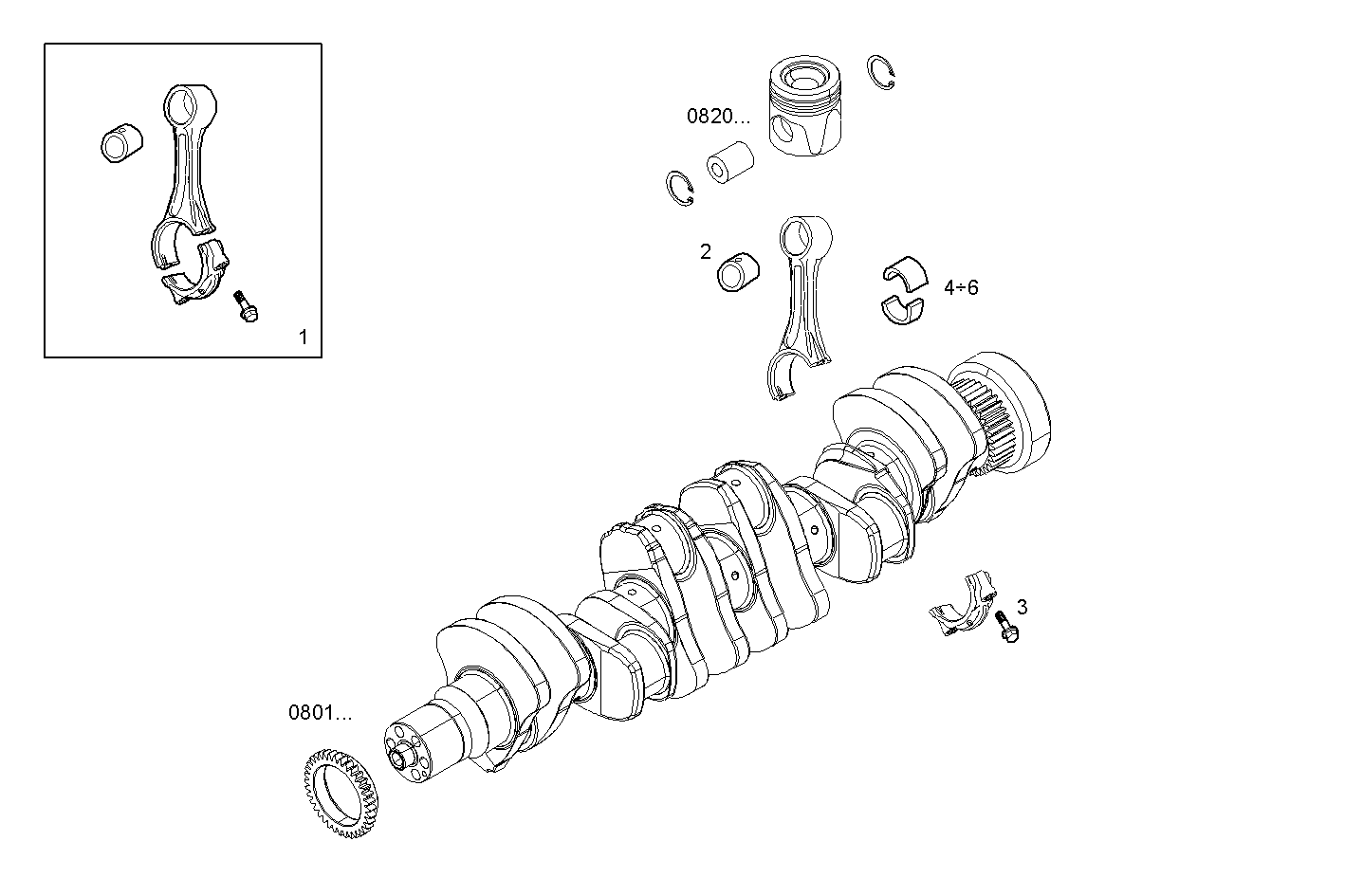

CONNECTING ROD
Assembly ID: 0810.159
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 2831298 | CONN.ROD ASSY. | 6 | ||
| 2 | 4892708 | BIG-END BUSH | 6 | ||
| 3 | 2831297 | CYLIND-HEAD SCREW | 12 | ||
| 4 | 8093882 | CON.ROD BEAR STD. | 6 | ||
| 5 | 8094960 | CON.ROD BEAR-0,250 | 6 | ||
| 6 | 8094961 | CON.ROD BEAR-0,500 | 6 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4HE0684E*D100 | NEF 6 electron. - TIER 2 | view |
| F4HE0684F*D100 | NEF 6 electron. - TIER 2 | view |
| F4HE0684B*D100 | NEF 6 electron. - TIER 2 | view |
| F4HE0684E*D102 | NEF 6 electron. - TIER 2 | view |
| F4HE0684B*D101 | NEF 6 electron. - TIER 2 | view |
| F4HE0684E*D103 | NEF 6 electron. - TIER 2 | view |
| F4HE9684Q*J100 | NEF 6 electron. - TIER 3 | view |
| F4HE9684W*J100 | NEF 6 electron. - TIER 3 | view |
| F4HE9684X*J101 | NEF 6 electron. - TIER 3 | view |
| F4HE9687E*J101 | NEF 6 electron. - TIER 3 | view |
| F4HE9687B*J101 | NEF 6 electron. - TIER 3 | view |
| F4DE9687E*J103 | NEF 6 electron. - TIER 3 | view |
| F4DE9684X*J102 | NEF 6 electron. - TIER 3 | view |
| F4DE9687B*J100 | NEF 6 electron. - TIER 3 | view |
| F4HE9684W*J101 | NEF 6 electron. - TIER 3 | view |
| N67ENTX24.00A001 | NEF 6 electron. - TIER 3 | view |
| F4DE9684W*J101 | NEF 6 electron. - TIER 3 | view |
| F4DE9684Q*J101 | NEF 6 electron. - TIER 3 | view |
| F4DE9684Q*J102 | NEF 6 electron. - TIER 3 | view |
| F4DE9684W*J102 | NEF 6 electron. - TIER 3 | view |
| F4HE9684Q*J101 | NEF 6 electron. - TIER 3 | view |
| F4HE9684W*J102 | NEF 6 electron. - TIER 3 | view |
