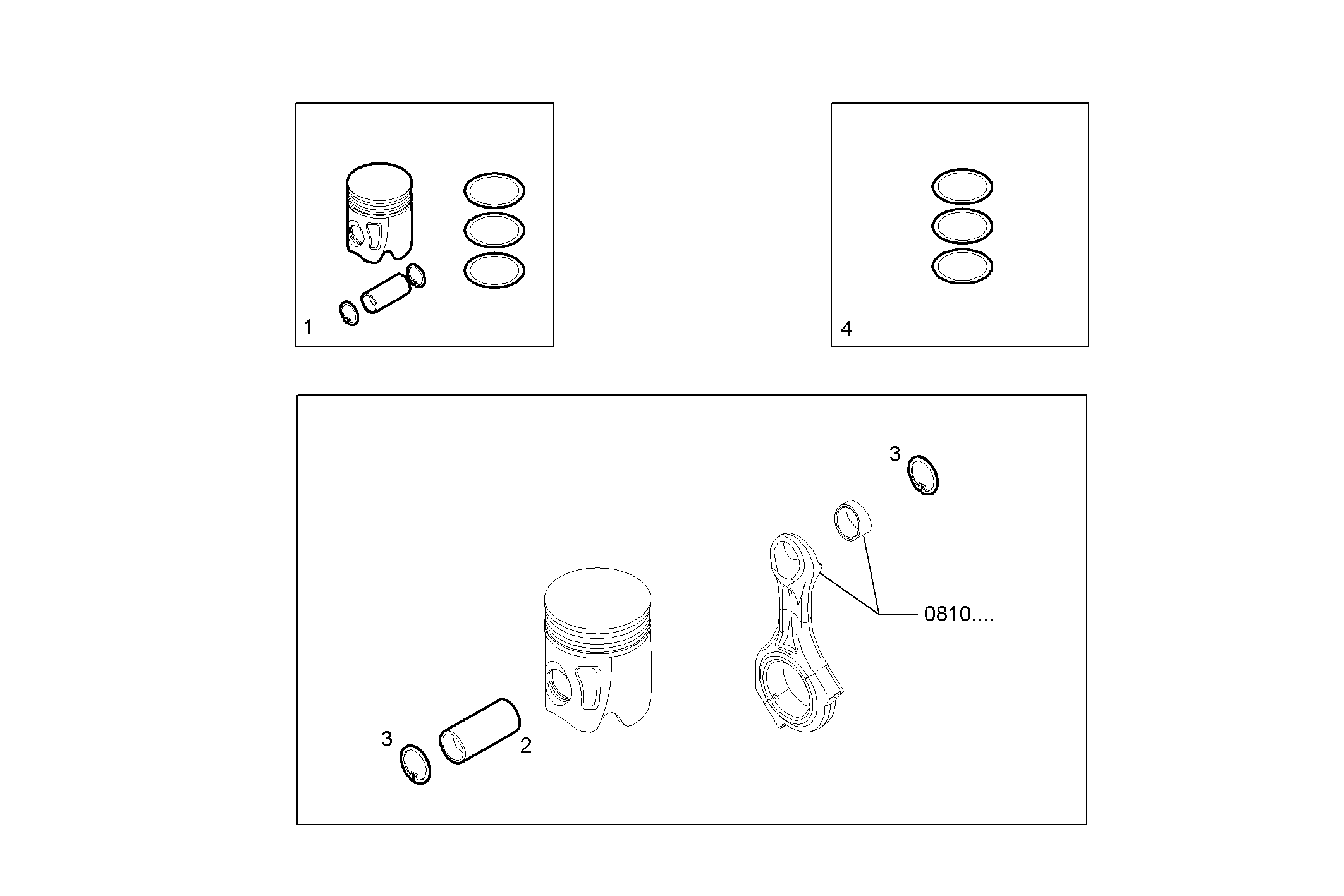

PISTON ASSY - PISTON RINGS - PISTON PIN
Assembly ID: 0820.010
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 2996172 | PISTON ASSY | 6 | ||
| 2 | 504006110 | PISTON PIN | 6 | ||
| 3 | 16877273 | CIRCLIP | 12 | ||
| 4 | 2996174 | PISTONRING SET STD | 6 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3BE3681B*R401 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R402 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R403 | CURSOR 13 - EURO 4 | view |
| F3BE3681B*R404 | CURSOR 13 - EURO 4 | view |
