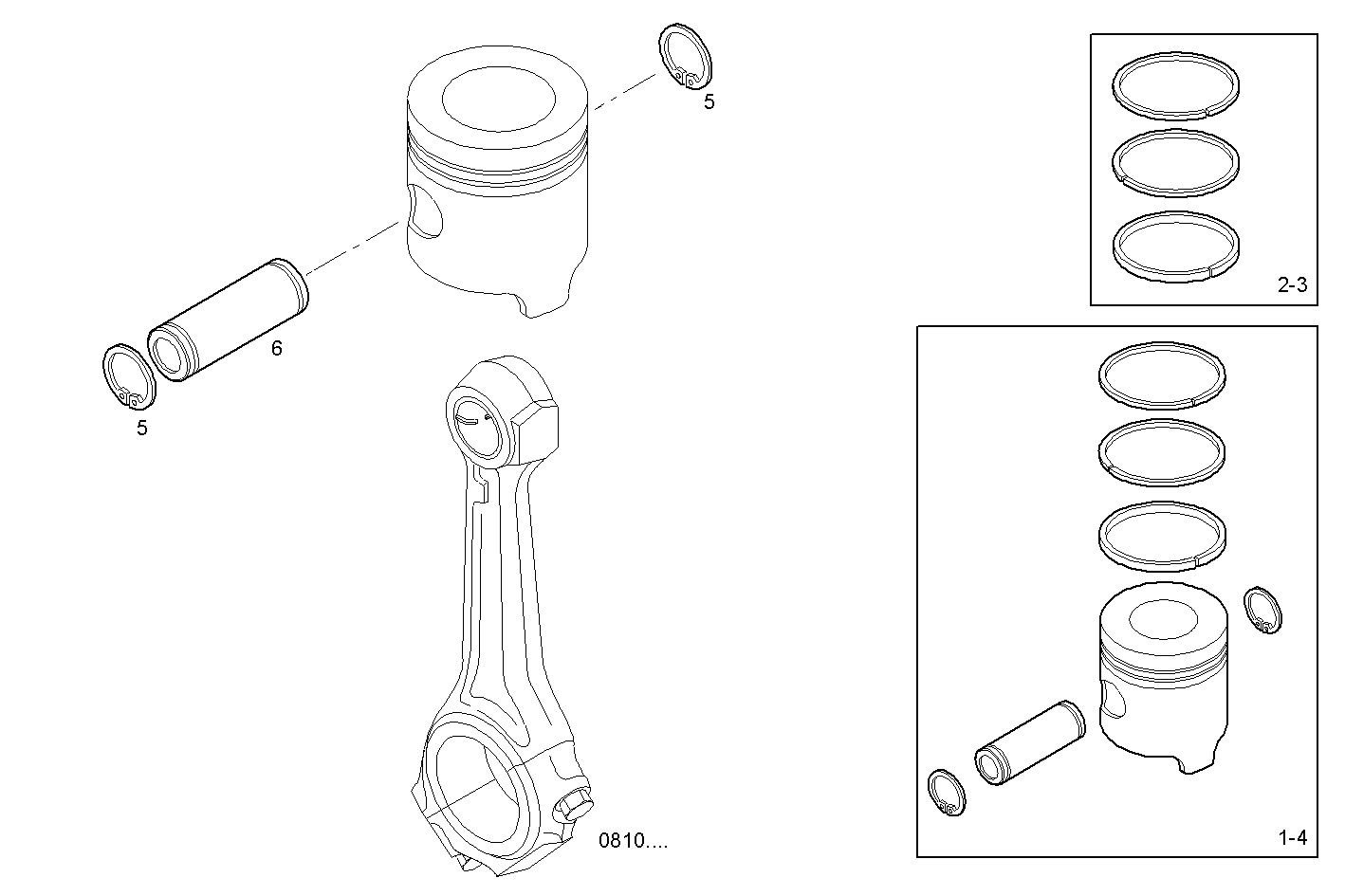

PISTON ASSY - PISTON RINGS - PISTON PIN
Assembly ID: 0820.013
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 1931002 | PISTON ASSY | 3 | ||
| 2 | 1931200 | PISTONRING SET STD | 3 | ||
| 3 | 1931001 | PISTONRING SET+0.6 | 3 | ||
| 4 | 1931003 | PISTON ASSY. +0.6 | 3 | ||
| 5 | 4770452 | CIRCLIP | 6 | ||
| 6 | 4801851 | PISTON PIN | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8035.05.450 | 8035.05 | view |
| 8035U00.01 | 8035U00 | view |
| 8035U00.01A800 | 8035U00 | view |
| 8035U00.01A801 | 8035U00 | view |
| 8035.05.550 | 8035.05 | view |
