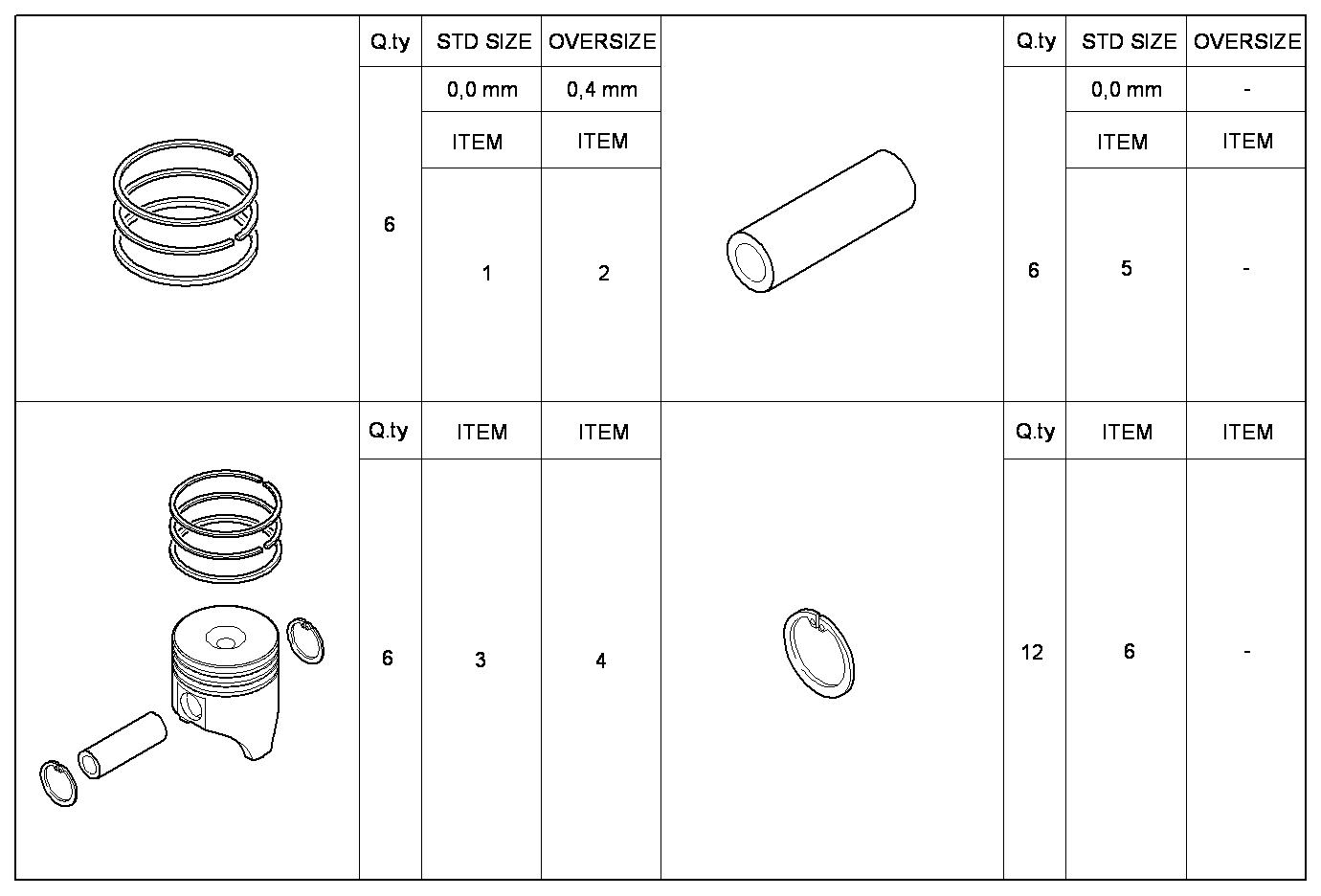

PISTON ASSY - PISTON RINGS - PISTON PIN
Assembly ID: 0820.014
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 1904678 | PISTONRING SET STD | 6 | ||
| 2 | 1904679 | PISTONRING SET+0.4 | 6 | ||
| 3 | 1907634 | PISTON ASSY | 6 | ||
| 4 | 1907635 | PISTON ASSY. +0.4 | 6 | ||
| 5 | 4835569 | PISTON PIN | 6 | ||
| 6 | 4770452 | CIRCLIP | 12 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8061SM20.12 | 8061SM20 | view |
| 8061SM20.32 | 8061SM20 | view |
| 8061SM20.42 | 8061SM20 | view |
| 8061SRM25.12 | 8061SRM25 | view |
| 8061SRM25.42 | 8061SRM25 | view |
| 8061SRM33.10 | 8061SRM33 | view |
| 8061SRM33.40 | 8061SRM33 | view |
| 8061SRM25.13 | 8061SRM25 | view |
| 8061SRM25.33 | 8061SRM25 | view |
| 8061SRM33.12 | 8061SRM33 | view |
| 8061SRM33.42 | 8061SRM33 | view |
