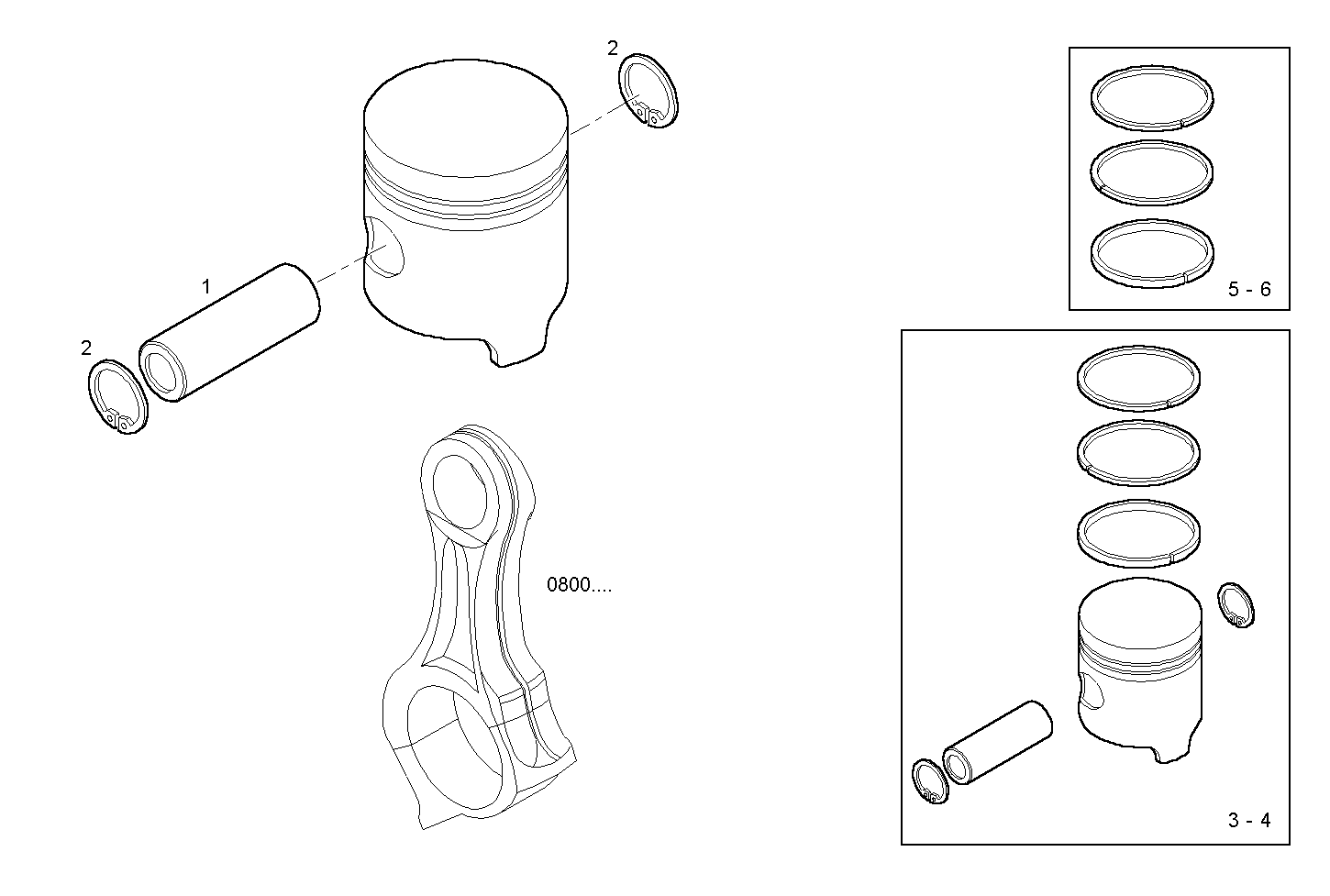

PISTON ASSY - PISTON RINGS - PISTON PIN
Assembly ID: 0820.100
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504000828 | PISTON PIN | 4 | ||
| 2 | 500378522 | SPRING LOCKWASHER | 8 | ||
| 3 | 2995759 | PISTON ASSY | 4 | ||
| 4 | 2995760 | PISTON ASSY. +0.4 | 4 | ||
| 5 | 2992540 | PISTONRING SET STD | 4 | ||
| 6 | 2992541 | PISTONRING SET+0.4 | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F1AE0481L*A001 | SOFIM HPI 2.3L - TIER 2 | view |
| S23ENSC24.20A001 | SOFIM HPI 2.3L - TIER 2 | view |
