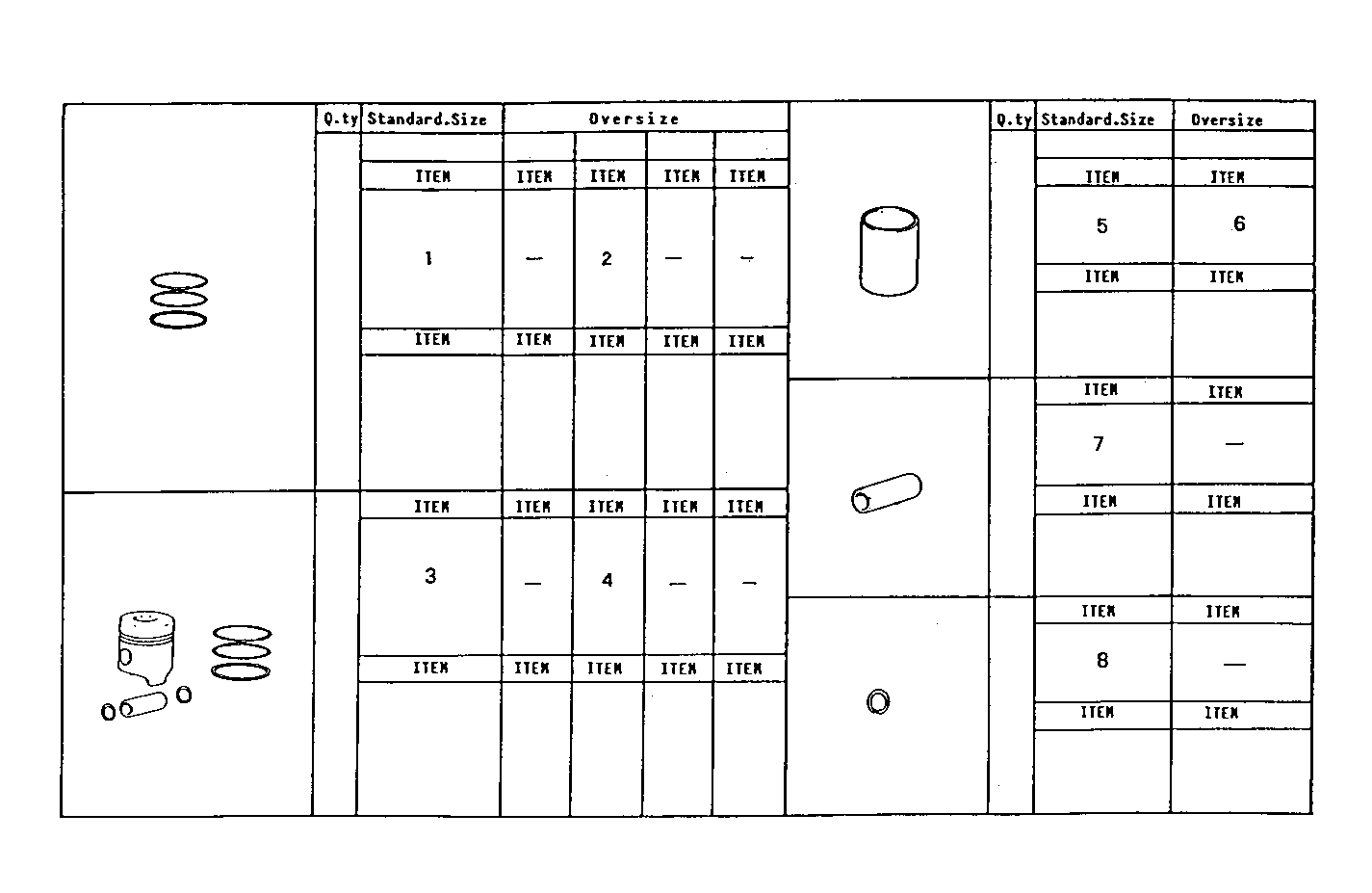

PISTON ASSY - PISTON RINGS - PISTON PIN
Assembly ID: 0820.111
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4837306 | PISTONRING SET STD | 4 | ||
| 2 | 99482121 | PISTONRING SET+0.4 | 4 | ||
| 3 | 99437233 | PISTON ASSY | 4 | ||
| 4 | 99437234 | PISTON SET +0.4 | 4 | ||
| 5 | 0820.111-005 | CYLINDER LINER | 4 | ||
| 6 | 0820.111-006 | CYLINDERLINER +0.2 | 4 | ||
| 7 | 4758573 | PISTON PIN | 4 | ||
| 8 | 4758576 | SPRING LOCKWASHER | 8 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8140C00.00 | 8140C00 | view |
| 8140C00.00A006 | 8140C00 | view |
| 8140C00.00A005 | 8140C00 | view |
| 8141C67.03A005 | 8141C67 | view |
| 8141.67.2000 | 8141.67 | view |
| 8141i67.02A010 | 8141i67 | view |
| 8141.67F.3000 | 8141.67F | view |
