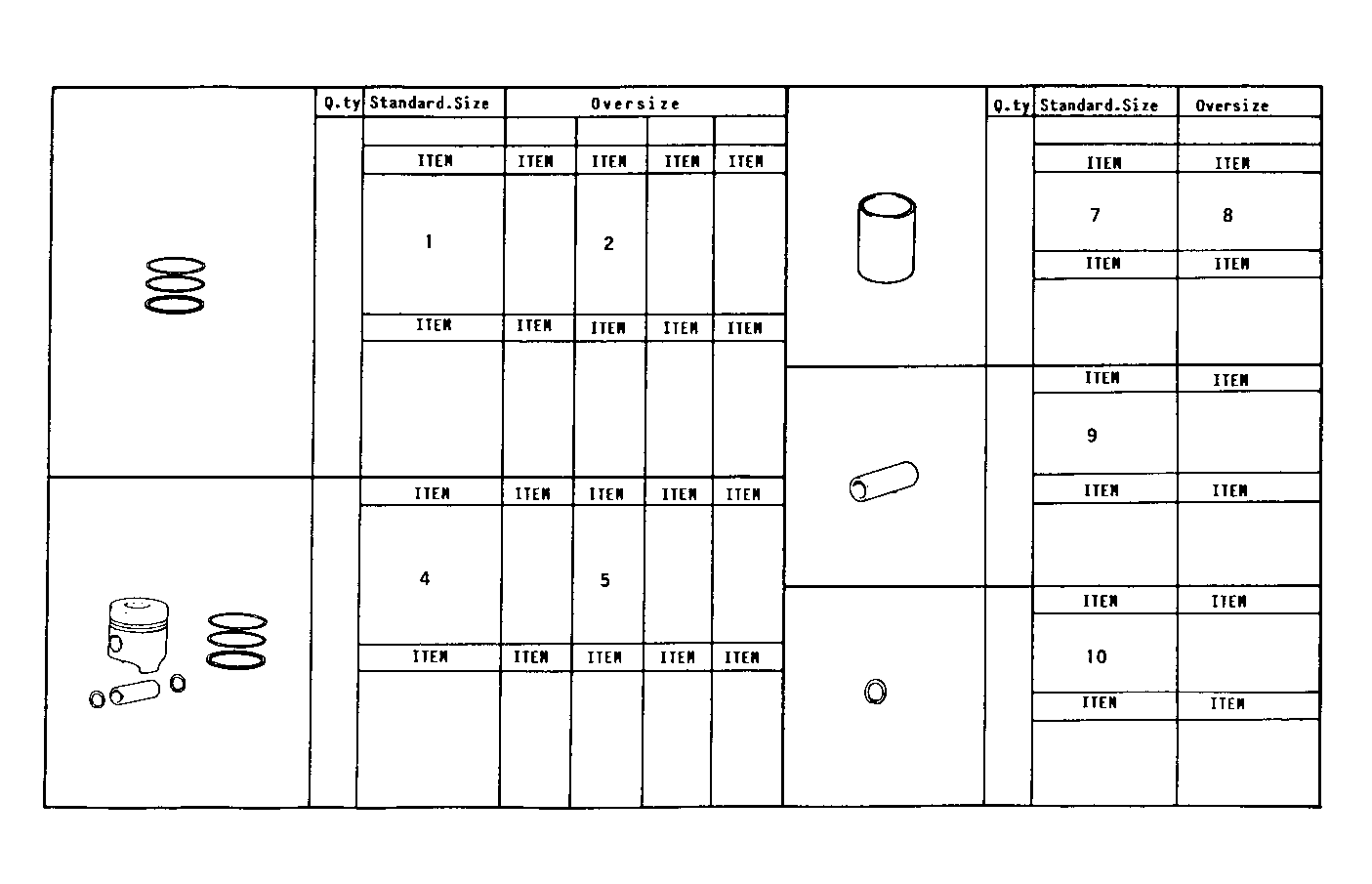

PISTON ASSY - PISTON RINGS - PISTON PIN

Assembly ID: 0820.128

PISTON ASSY - PISTON RINGS - PISTON PIN

Parts

# Part number Description Note Quantity
1 1931000 PISTONRING SET STD 3
2 1931001 PISTONRING SET+0.6 3
4 1931002 PISTON ASSY 3
5 1931003 PISTON ASSY. +0.6 3
7 0820.128-007 CYLINDER LINER 3
8 0820.128-008 CYLINDERLINER +0.2 3
9 4801851 PISTON PIN 3
10 4770452 CIRCLIP 6

Applies to engines
