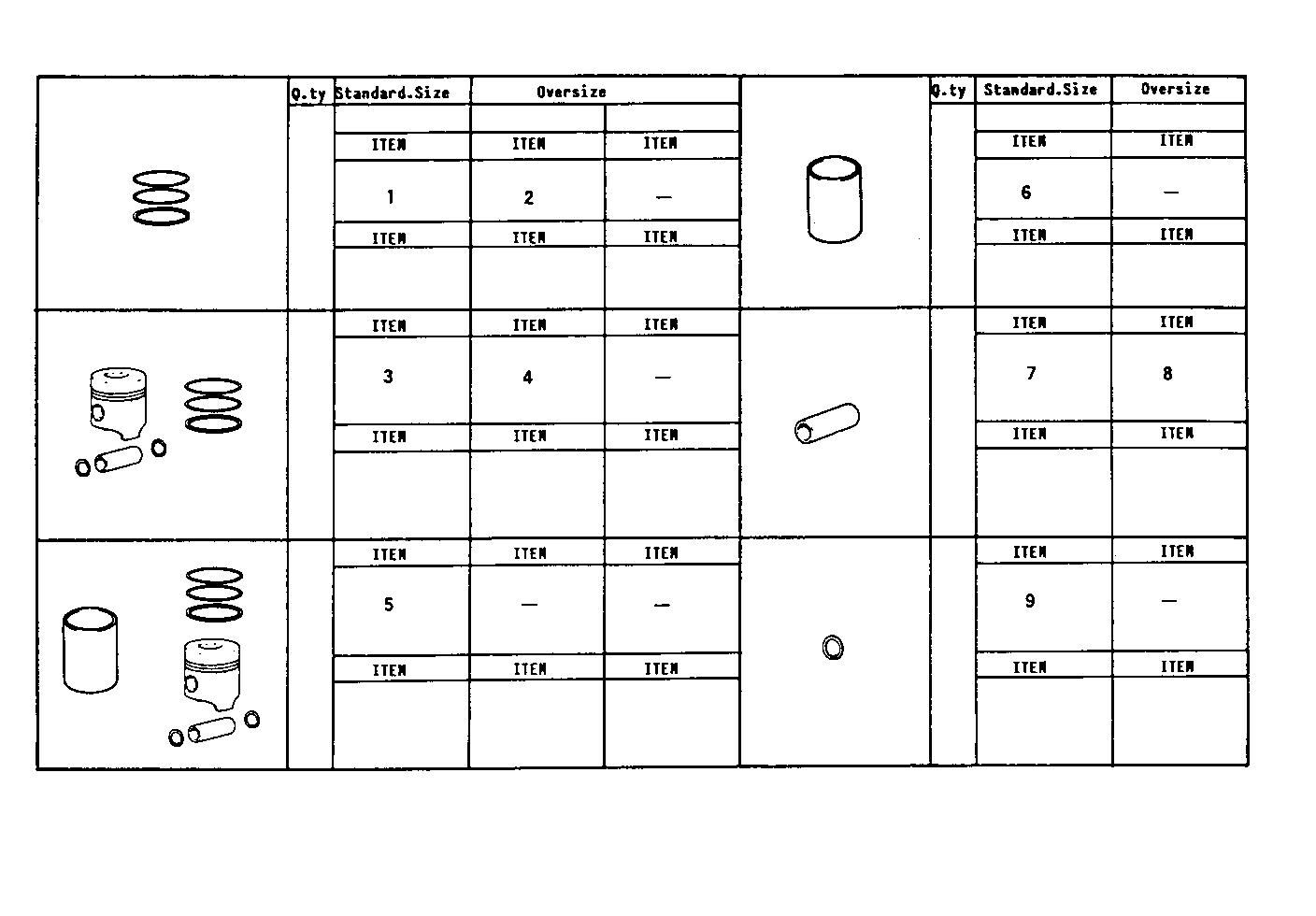

PISTON ASSY - PISTON RINGS - PISTON PIN
Assembly ID: 0820.138
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 2991564 | PISTONRING SET STD | 6 | ||
| 3 | 2991572 | PISTON ASSY | 6 | ||
| 5 | 1908843 | KIT PISTON/CYLIN. | 6 | ||
| 6 | 0820.138-006 | CYLINDER LINER | 6 | ||
| 7 | 61321409 | PISTON PIN | 6 | ||
| 9 | 16873276 | CIRCLIP | 12 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8460SRC21.20 | 8460SRC21 | view |
| 8460SRC21.20A001 | 8460SRC21 | view |
| 8460SRC20.00 | 8460SRC20 | view |
| 8460SRC20.10 | 8460SRC20 | view |
| 8460SRC20.20 | 8460SRC20 | view |
| 8460SRC21.00 | 8460SRC21 | view |
| 8460SRC21.10 | 8460SRC21 | view |
| 8460SRC21.20A002 | 8460SRC21 | view |
