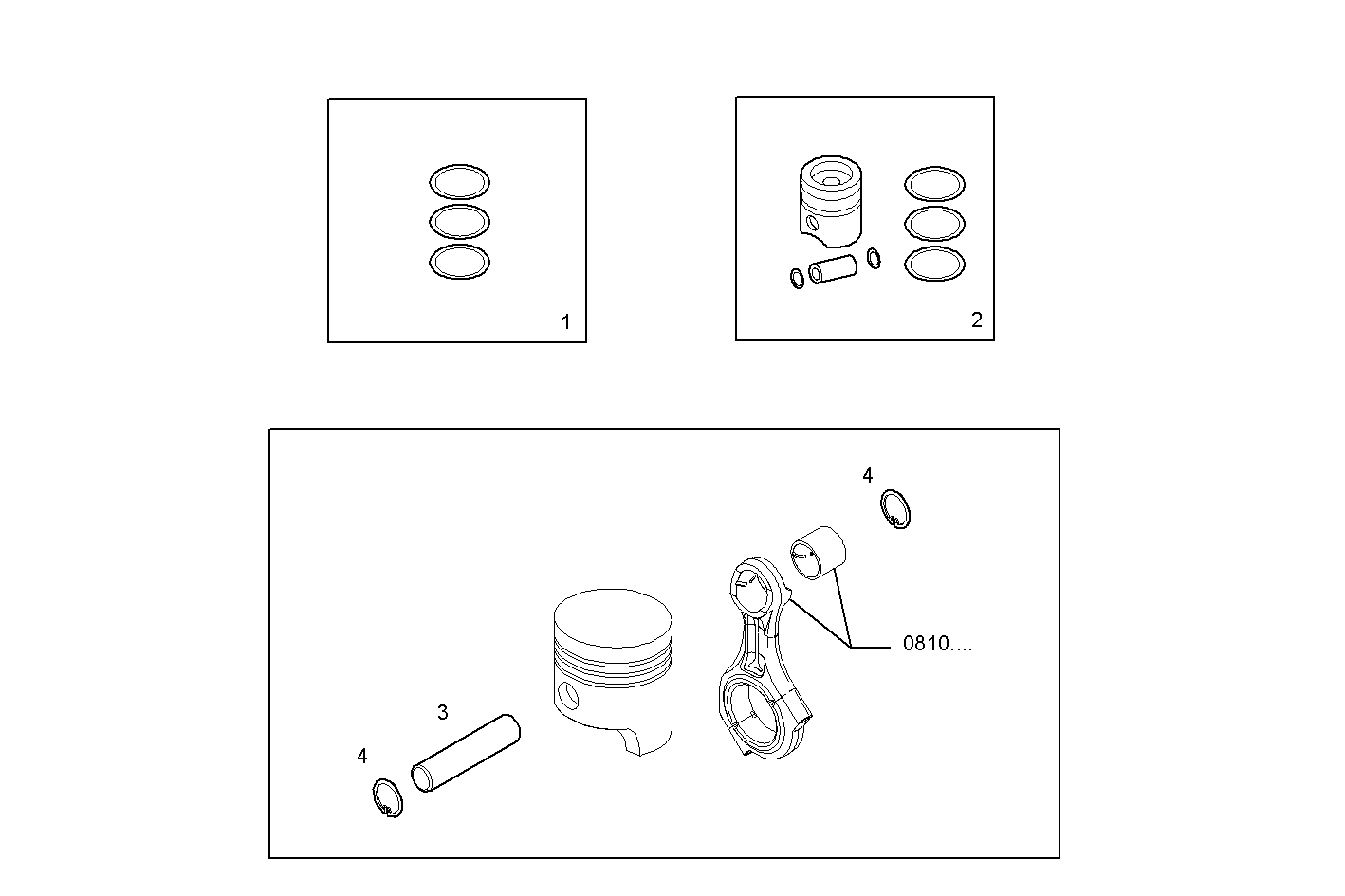

PISTON ASSY - PISTON RINGS - PISTON PIN
Assembly ID: 0820.176
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8093827 | PISTONRING SET STD | 8 | ||
| 2 | 8093828 | PISTON ASSY | 8 | ||
| 3 | 504029014 | PISTON PIN | 8 | ||
| 4 | 16873976 | SPRING LOCKWASHER | 16 |
Applies to engines
| Engine | Family | |
|---|---|---|
| FVQE2883X*A200 | VECTOR 8 | view |
| PPVZ2883X*Q400 | POWER PACK | view |
| FVQE2883X*A201 | VECTOR 8 | view |
| PPVZ2883X*Q440 | POWER PACK | view |
| FVQE2883X*A202 | VECTOR 8 | view |
| FVAE2885X*A100 | VECTOR 8 | view |
| VECTOR8TE2.A001 | VECTOR 8 | view |
| FVAE2884A*B200 | VECTOR 8 | view |
| FVAE2884A*B201 | VECTOR 8 | view |
| FVAE2884X*B200 | VECTOR 8 | view |
| VECTOR8TE2.A002 | VECTOR 8 | view |
| GEVECTOR650E.A500 | GEVECTOR 8 - TIER 2 | view |
| FVQE2883Z*C200 | VECTOR 8 | view |
