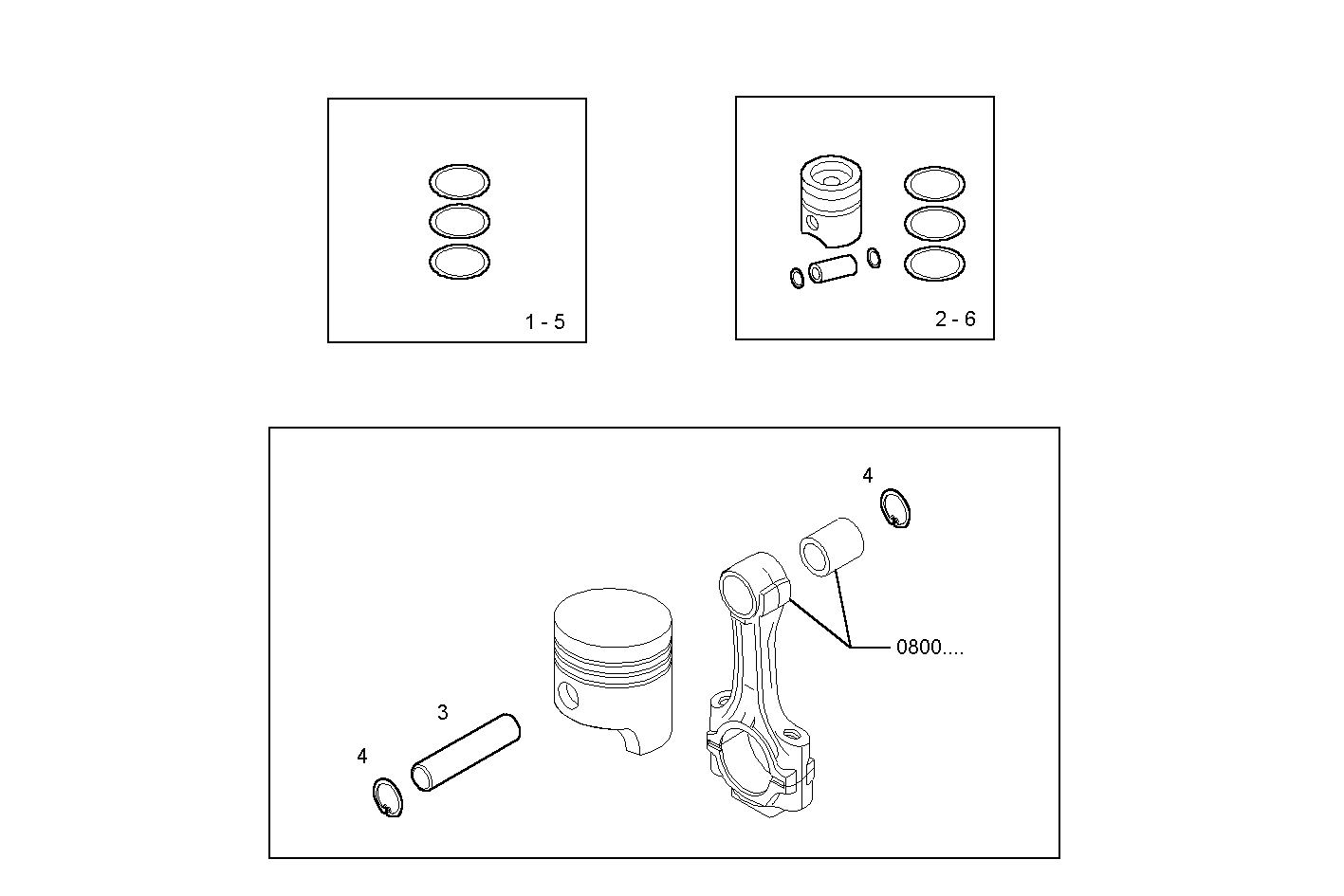

PISTON ASSY - PISTON RINGS - PISTON PIN

Assembly ID: 0820.180

PISTON ASSY - PISTON RINGS - PISTON PIN

Parts

# Part number Description Note Quantity
1 2994118 PISTONRING SET STD 6
2 8093811 PISTON ASSY 6
3 504046494 PISTON PIN 6
4 4895088 SPRING LOCKWASHER 12
5 2995673 PISTONRING SET+0.5 6
6 8094930 PISTON ASSY+0.5 6

Applies to engines

Engine Family
GENEF180E.R980 GENEF 6 electron. - TIER 2 view
N60ENTE66.00 NEF 6 electron. - TIER 2 view
NEF60TE1.A001 NEF 6 electron. - TIER 2 view
N60ENTM37.10 NEF 6 electron. view
F4AE0685A*F100 NEF 6 electron. - TIER 2 view
F4AE0685A*F101 NEF 6 electron. - TIER 2 view
N60ENTE60.00 NEF 6 electron. - TIER 2 view
NEF6TAGE2.A002 NEF 6 electron. - TIER 2 view
NEF60TE2.00 NEF 6 electron. - TIER 2 view
GENEF200E.R980 GENEF 6 electron. - TIER 2 view
NEF60TE2.A559 NEF 6 electron. - TIER 2 view
NEF60TE2.A001 NEF 6 electron. - TIER 2 view
GENEF200E.R990 GENEF 6 electron. - TIER 2 view
GENEF200E.A71M GENEF 6 electron. - TIER 2 view
GENEF200E.A551 GENEF 6 electron. - TIER 2 view
GENEF200E.A72M GENEF 6 electron. - TIER 2 view
GENEF200E.A552 GENEF 6 electron. - TIER 2 view
NEF60TE2.A558 NEF 6 electron. - TIER 2 view
NEF60TE2.A002 NEF 6 electron. - TIER 2 view
NEF60TE2.A003 NEF 6 electron. - TIER 2 view
NEF60TE2.A004 NEF 6 electron. - TIER 2 view
NEF60TE1.A002 NEF 6 electron. - TIER 2 view
N60ENTM40.10 NEF 6 electron. view
F4AE0686C*E100 NEF 6 electron. view
NEF60TE2.A005 NEF 6 electron. - TIER 2 view
GENEF200E.A002 GENEF 6 electron. - TIER 2 view
GENEF200E.A001 GENEF 6 electron. - TIER 2 view
GENEF180E.A002 GENEF 6 electron. - TIER 2 view
GENEF180E.A001 GENEF 6 electron. - TIER 2 view
F4AE0687A*B100 NEF 6 electron. view
N60ENTF40.00 NEF 6 electron. view
N60ENTM40.10A001 NEF 6 electron. view
