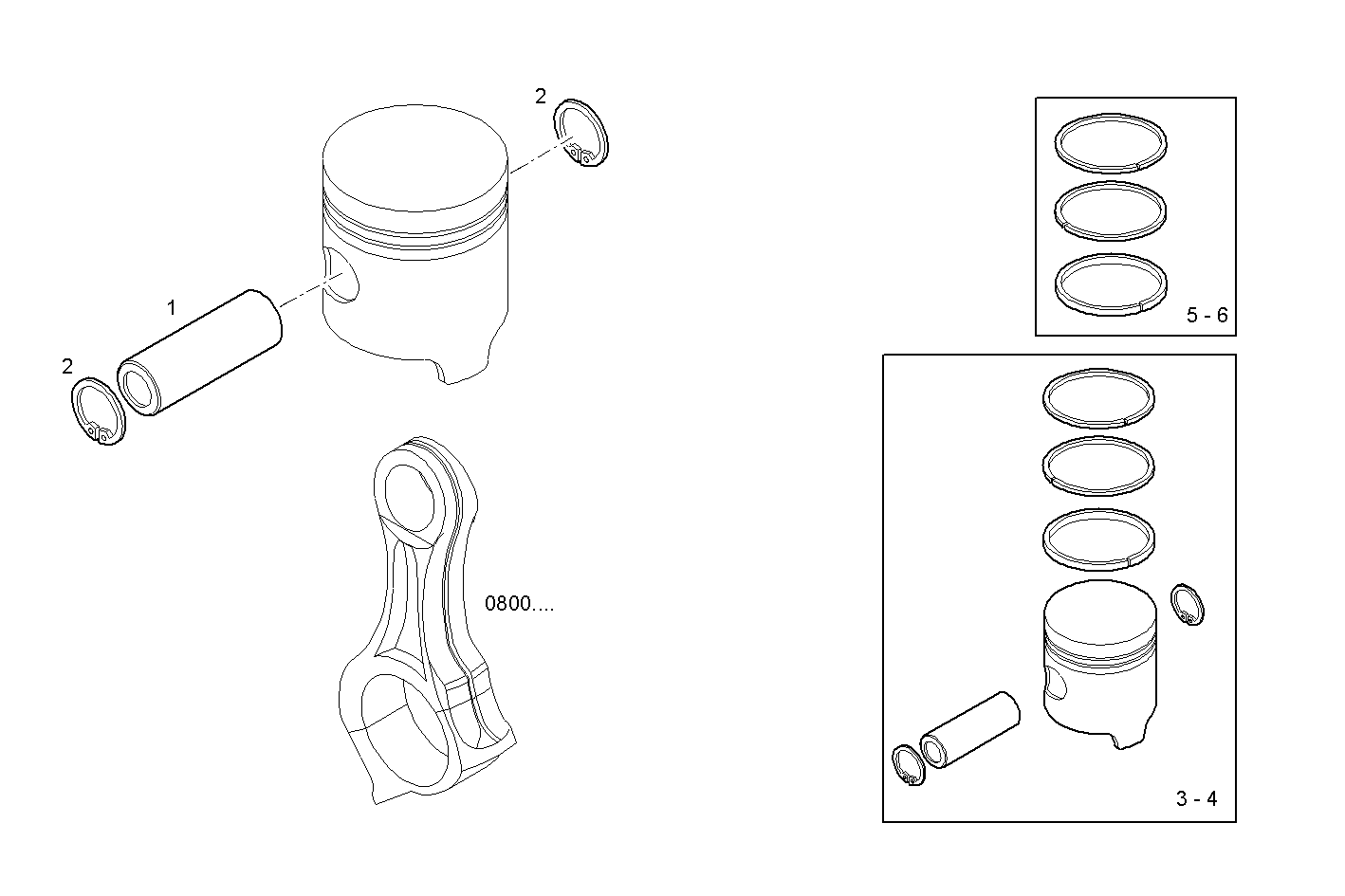

PISTON ASSY - PISTON RINGS - PISTON PIN
Assembly ID: 0820.203
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504000828 | PISTON PIN | 4 | ||
| 2 | 500378522 | SPRING LOCKWASHER | 8 | ||
| 3 | 504049347 | PISTON ASSY | 4 | ||
| 4 | 504049349 | PISTON ASSY. +0.4 | 4 | ||
| 5 | 504049351 | PISTONRING SET STD | 4 | ||
| 6 | 504049353 | PISTONRING SET+0.4 | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F1AE0481A*A002 - C | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481B*A002 - C | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A004 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A006 - C | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A008 - C | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A005 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A006 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A007 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A009 | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481A*A002 - D | SOFIM HPI 2.3L - EURO 3 | view |
