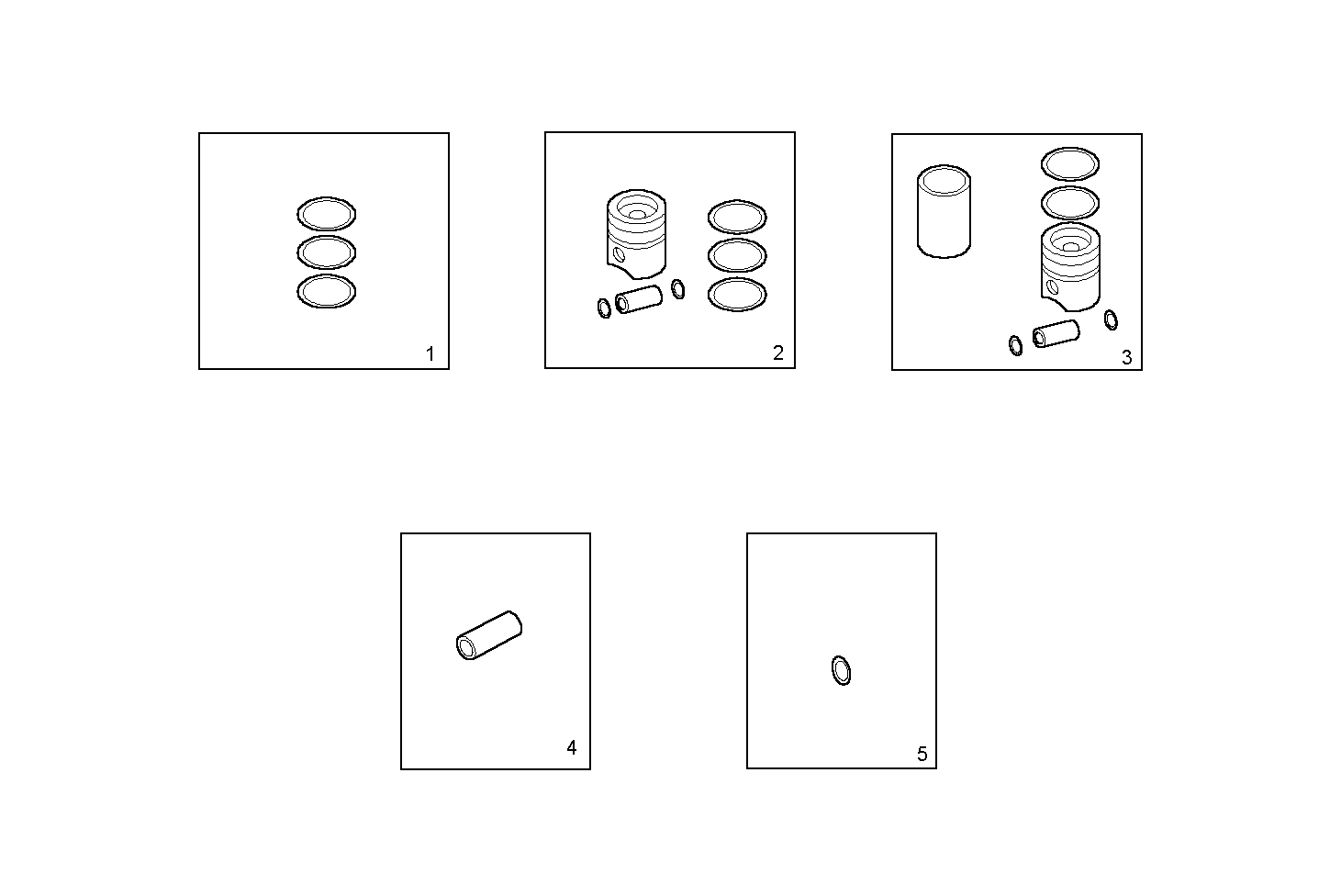

PISTON ASSY - PISTON RINGS - PISTON PIN
Assembly ID: 0820.215
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8094839 | PISTONRING SET STD | 6 | ||
| 2 | 8094840 | PISTON ASSY | 6 | ||
| 3 | 8094841 | KIT PISTON/CYLIN. | 6 | ||
| 4 | 504006110 | PISTON PIN | 6 | ||
| 5 | 16877273 | CIRCLIP | 6 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3BE0684G*E901 | CURSOR 13 - TIER 3 | view |
| F3BE0684H*E902 | CURSOR 13 - TIER 3 | view |
| F3BE9685A*E001 | CURSOR 13 - TIER 3 | view |
| C13ENTX60.00 | CURSOR 13 - TIER 3 | view |
| C13ENTX61.00 | CURSOR 13 - TIER 3 | view |
| C13ENTX62.00 | CURSOR 13 - TIER 3 | view |
| F3BE0684H*E901 | CURSOR 13 - TIER 3 | view |
| CURSOR13TE3X.R991 | CURSOR 13 - TIER 3 | view |
| F3BE9687A*E001 | CURSOR 13 - TIER 3 | view |
| C13ENTX20.00 | CURSOR 13 - TIER 3 | view |
| C13ENTX20.00A800 | CURSOR 13 - TIER 3 | view |
| C13ENTX20.00A801 | CURSOR 13 - TIER 3 | view |
| F3BE0684J*E902 | CURSOR 13 - TIER 3 | view |
| C13ENTX20.00A802 | CURSOR 13 - TIER 3 | view |
| F3CE0684B*E003 | CURSOR 13 TCD - TIER 3 | view |
| C13ENTX20.00A005 | CURSOR 13 - TIER 3 | view |
| F3CE0684A*E001 | CURSOR 13 TCD - TIER 3 | view |
| F3BE0684N*E904 | CURSOR 13 - TIER 3 | view |
| F3BE0684Q*E901 | CURSOR 13 - TIER 3 | view |
| F3BE0684R*E901 | CURSOR 13 - TIER 3 | view |
| F3BE0684N*E903 | CURSOR 13 - TIER 3 | view |
| F3CE0684C*E002 | CURSOR 13 TCD - TIER 3 | view |
| F3BE0684Q*E905 | CURSOR 13 - TIER 3 | view |
| F3BE0684R*E905 | CURSOR 13 - TIER 3 | view |
| F3CE0684E*E004 | CURSOR 13 TCD - TIER 3 | view |
| CURSOR13TE3X.A001 | CURSOR 13 - TIER 3 | view |
| F3BE0684N*E906 | CURSOR 13 - TIER 3 | view |
| F3CE0684B*E005 | CURSOR 13 TCD - TIER 3 | view |
| CURSOR13TE3X.A008 | CURSOR 13 - TIER 3 | view |
| CURSOR13TE3X.A011 | CURSOR 13 - TIER 3 | view |
| F3BE0684Q*E902 | CURSOR 13 - TIER 3 | view |
