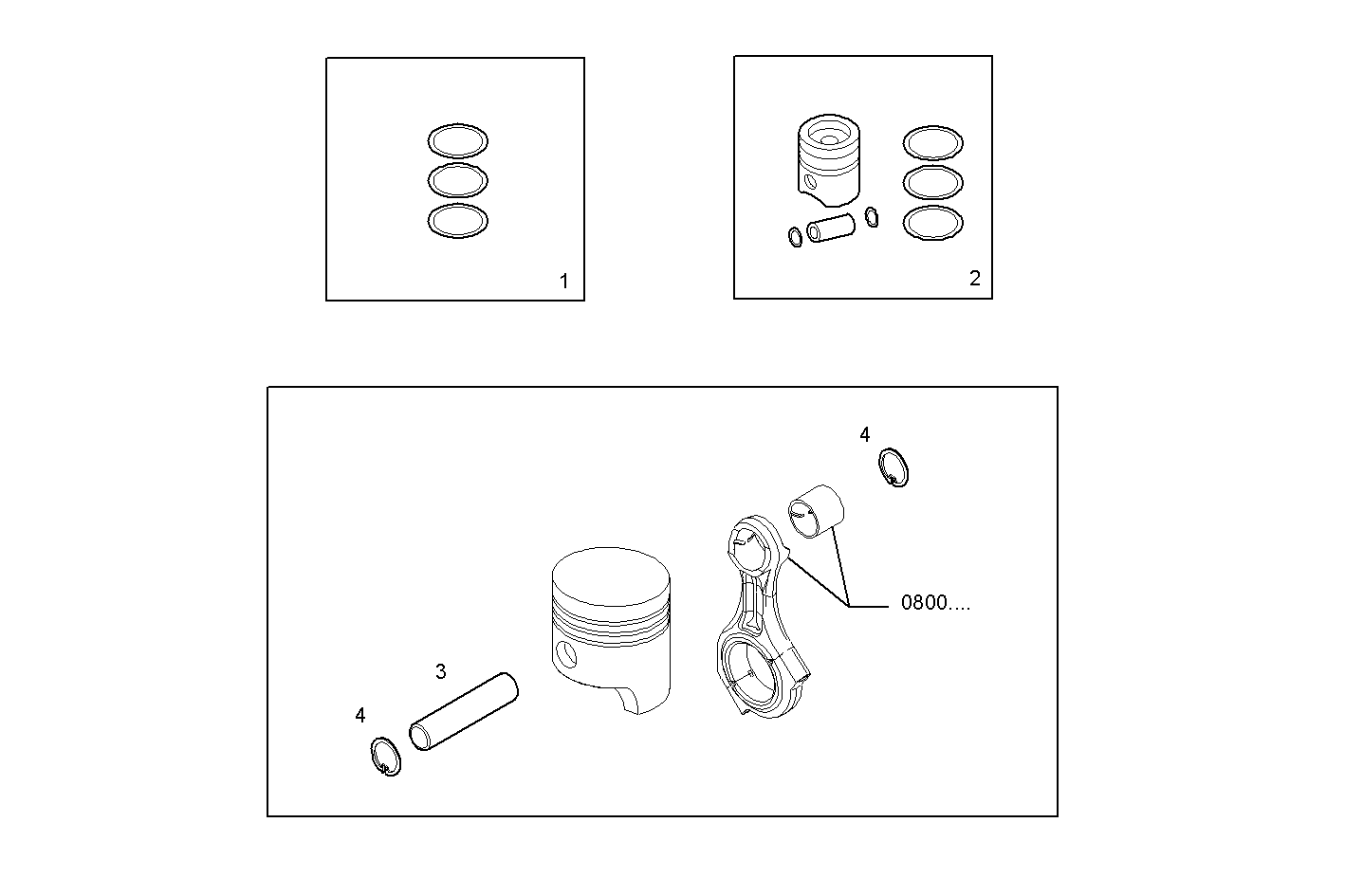

PISTON ASSY - PISTON RINGS - PISTON PIN
Assembly ID: 0820.218
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8093827 | PISTONRING SET STD | 8 | ||
| 2 | 8094822 | PISTON ASSY | 8 | ||
| 3 | 504029014 | PISTON PIN | 8 | ||
| 4 | 16873976 | SPRING LOCKWASHER | 16 |
Applies to engines
| Engine | Family | |
|---|---|---|
| V08ENTM11.10D210 | VECTOR 8 | view |
| V08ENTM75.10A210 | VECTOR 8 | view |
| V08ENTM75.10B210 | VECTOR 8 | view |
| V08ENTM75.10B230 | VECTOR 8 | view |
| V08ENTM11.10C210 | VECTOR 8 | view |
| V08ENTM11.10P210 | VECTOR 8 | view |
| V08ENTM11.10R210 | VECTOR 8 | view |
| V08ENTM12.10A210 | VECTOR 8 | view |
| V08ENTM12.10B210 | VECTOR 8 | view |
