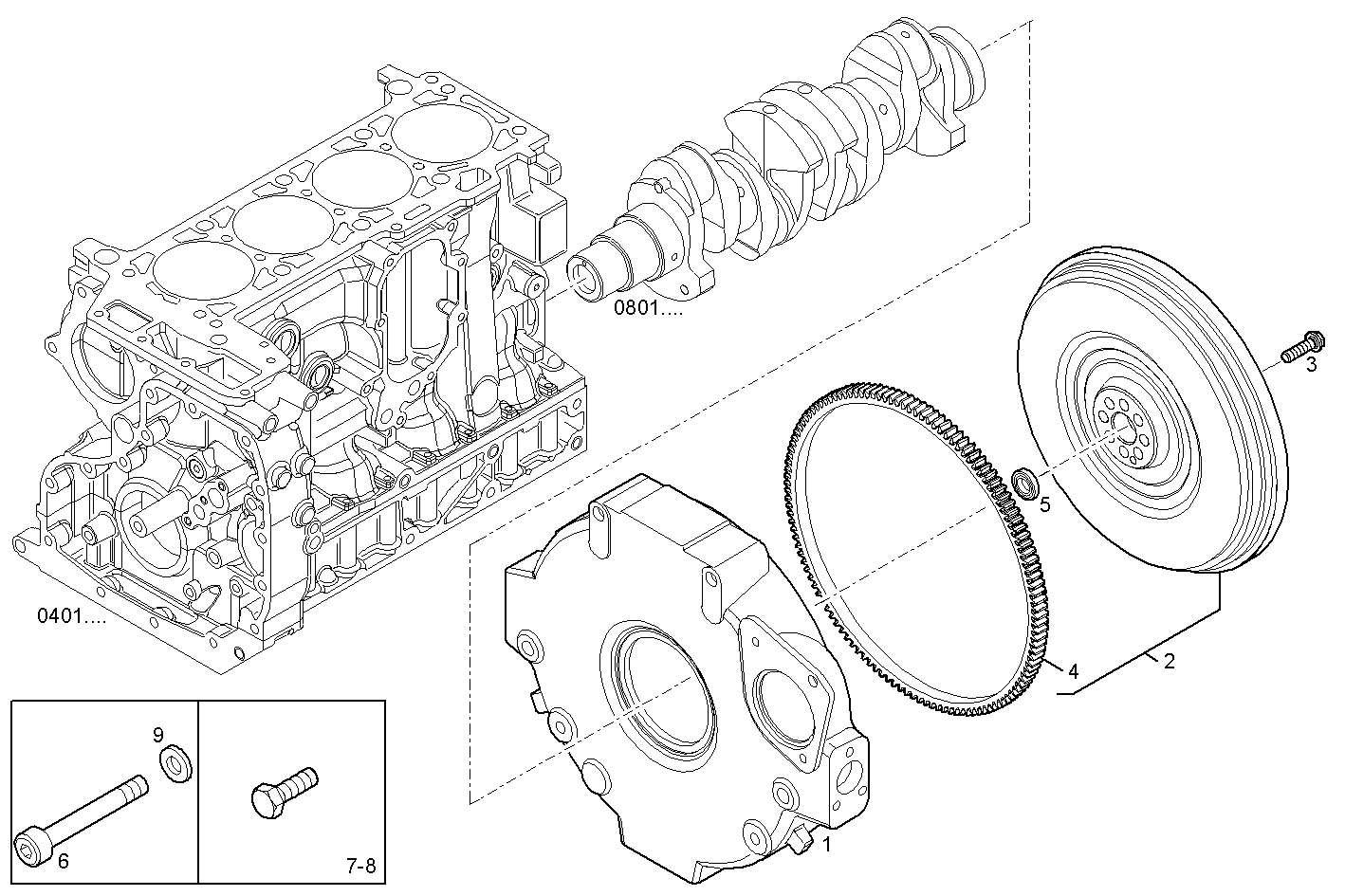

ENGINE FLYWHEEL
Assembly ID: 0830.022
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8044940 | FLYWHEEL HOUSING | 1 | ||
| 2 | 8045369 | FLYWHEEL | 1 | ||
| 3 | 500347046 | HEXAGON BOLT | 8 | ||
| 4 | 4279804 | RING GEAR | 1 | ||
| 5 | 504103418 | ENGINE BEARINGS | 1 | ||
| 6 | 16693924 | CYLIND-HEAD SCREW | 2 | ||
| 7 | 15540834 | SCREW | 2 | ||
| 8 | 15231821 | SCREW | 2 | ||
| 9 | 4726707 | WASHER | 2 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F1CE0487K*C502 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.80A001 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.80A002 | SOFIM HPI 3.0L - EURO 4 | view |
| S30ENT422.80A003 | SOFIM HPI 3.0L - EURO 4 | view |
