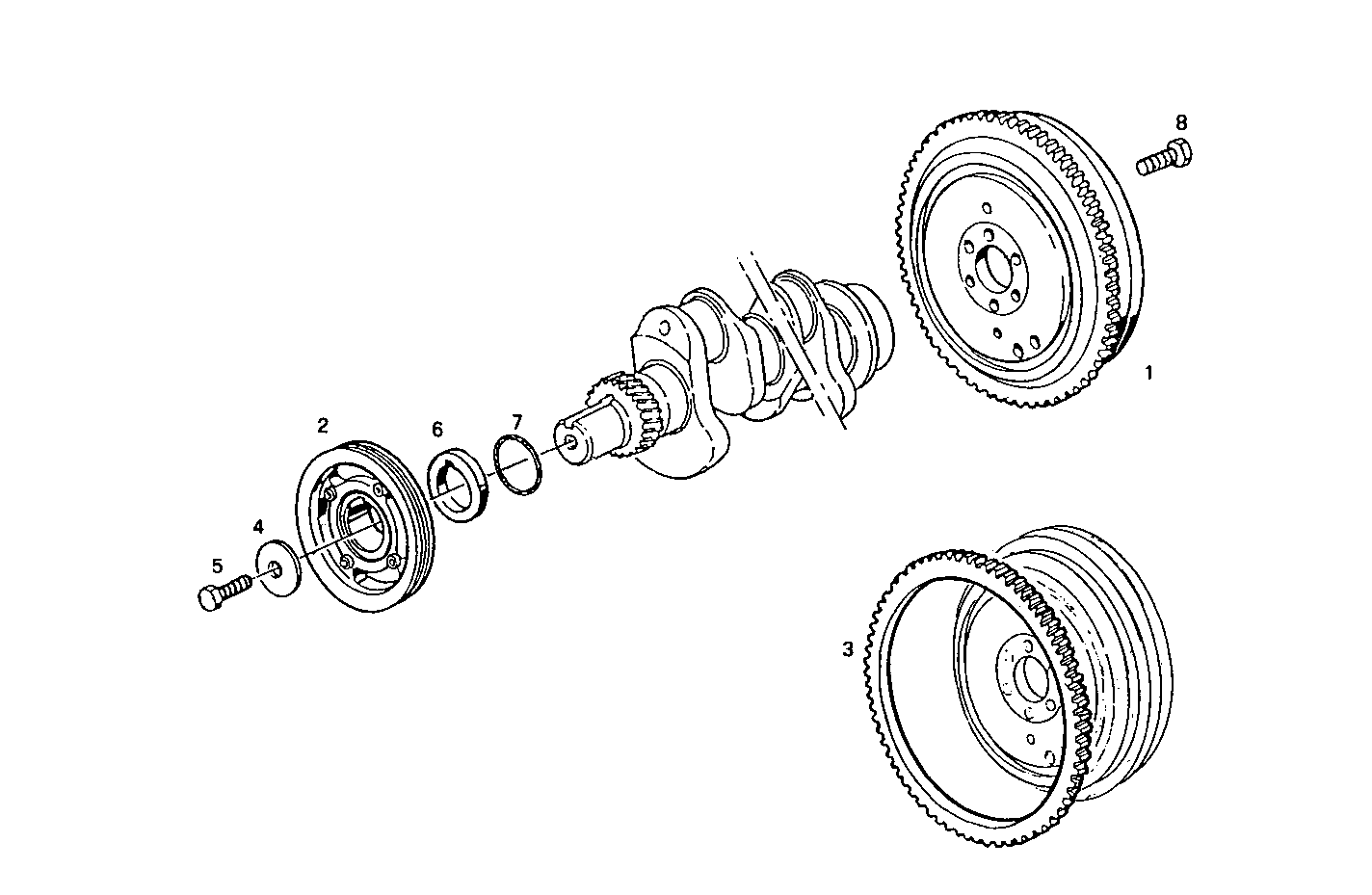

ENGINE FLYWHEEL - DAMPER
Assembly ID: 0830.092
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 8013197 | FLYWHEEL | 1 | ||
| 2 | 8093078 | PULLEY | 1 | ||
| 3 | 8012478 | RING GEAR | 1 | ||
| 4 | 83990589 | WASHER | 1 | ||
| 5 | 82895561 | SCREW | 1 | ||
| 6 | 87800706 | SPACING BAR | 1 | ||
| 7 | 83948687 | WASHER | 1 | ||
| 8 | 8014885 | SCREW | 6 |
Applies to engines
| Engine | Family | |
|---|---|---|
| GE7450G86.05A71E | GE7450G86 | view |
| GE7675G86.05A70E | GE7675G86 | view |
| GE7675G86.05A71E | GE7675G86 | view |
| GE7450G86.05A70E | GE7450G86 | view |
| 7450G75.05C001 | 7450G75 | view |
| 7450G76.05C001 | 7450G76 | view |
| 7450G86.05C001 | 7450G86 | view |
| 7675G75.05C001 | 7675G75 | view |
| 7675G76.05C001 | 7675G76 | view |
| 7675G86.05C001 | 7675G86 | view |
| 7450G75.05A600 | 7450G75 | view |
| 7450G76.05A600 | 7450G76 | view |
| 7675G75.05A600 | 7675G75 | view |
| 7675G76.05A600 | 7675G76 | view |
| 7450G86.05A502 | 7450G86 | view |
| 7675G86.05A502 | 7675G86 | view |
