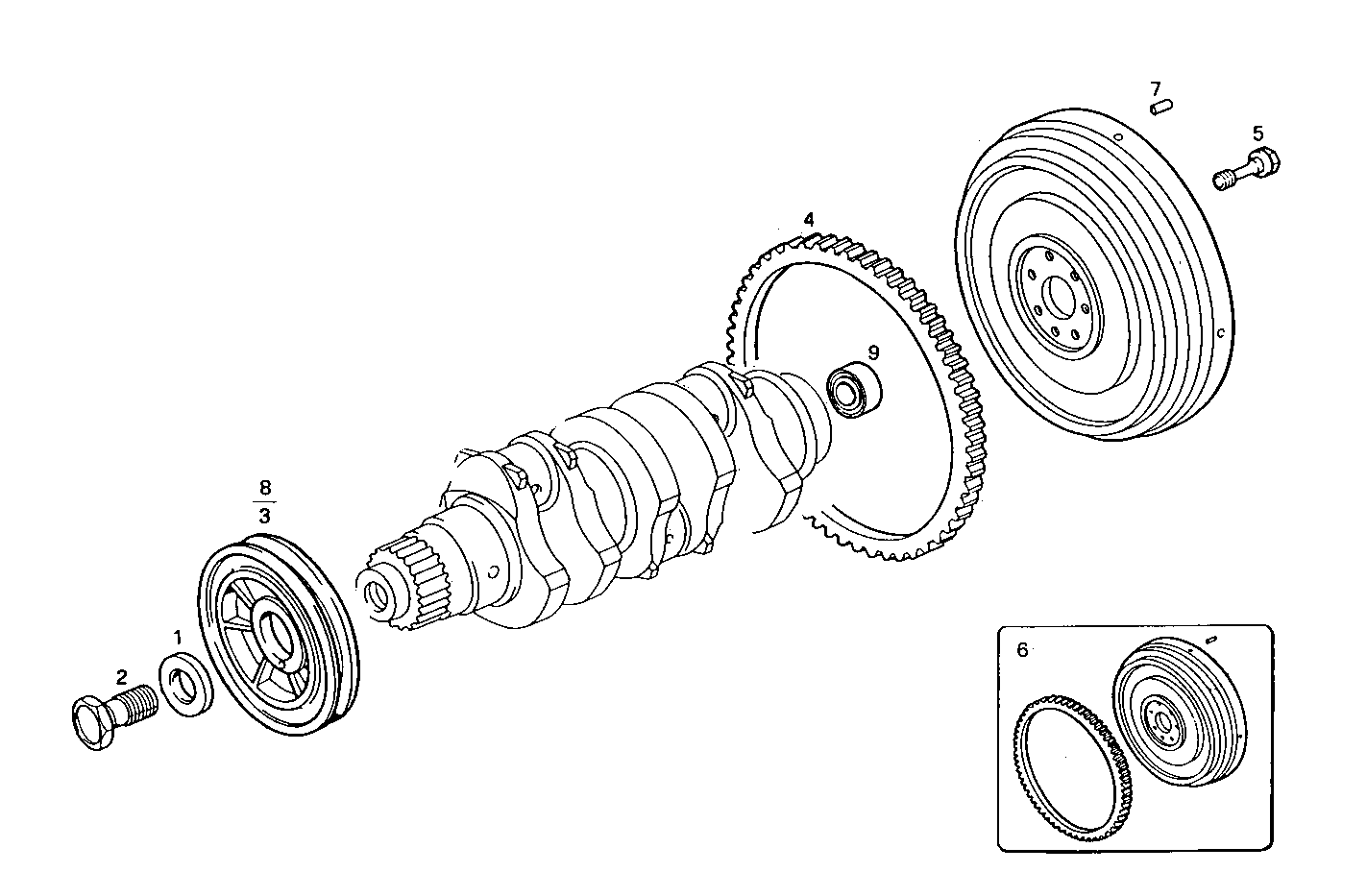

ENGINE FLYWHEEL - DAMPER
Assembly ID: 0830.099
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 98431967 | WASHER | 1 | ||
| 2 | 98419203 | SCREW | 1 | ||
| 3 | 98439039 | CRANKSHAFT PULLEY | 1 | ||
| 4 | 4279804 | RING GEAR | 1 | ||
| 5 | 98430735 | SCREW | 6 | ||
| 6 | 8021240 | FLYWHEEL | 1 | ||
| 7 | 17239610 | DOWEL PIN | 3 | ||
| 8 | 500349565 | CRANKSHAFT PULLEY | 1 | ||
| 9 | 98426210 | ENGINE BEARINGS | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8141Si27.02 | 8141Si27 | view |
