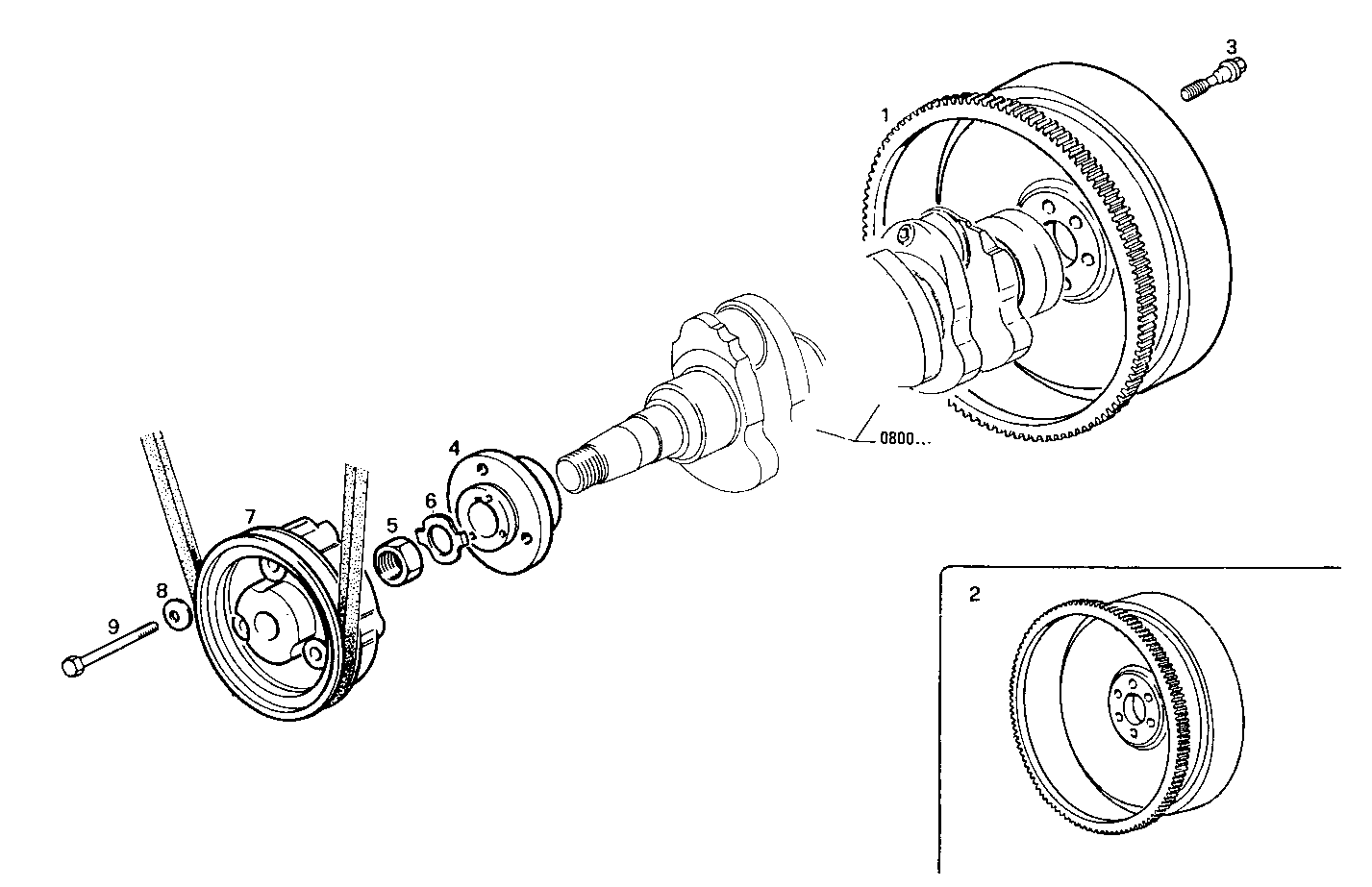

ENGINE FLYWHEEL - DAMPER
Assembly ID: 0830.114
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4862411 | RING GEAR | 1 | ||
| 2 | 4818113 | FLYWHEEL | 1 | ||
| 3 | 4779122 | HEXAGON BOLT | 7 | ||
| 4 | 4655845 | HUB | 1 | ||
| 5 | 4600189 | NUT | 1 | ||
| 6 | 4600190 | LOCKING PLATE | 1 | ||
| 7 | 4600187 | PULLEY | 1 | ||
| 8 | 17090274 | WASHER | 3 | ||
| 9 | 15888721 | HEXAGON BOLT | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| GE8041i06.55A905 | GE8041i06 | view |
| GS8041i06.55A612 | GS8041i06 | view |
| GS8041i06.55A614 | GS8041i06 | view |
| 8041i06.55 | 8041i06 | view |
| 8041i06.55A520 | 8041i06 | view |
| 8041i06.55A550 | 8041i06 | view |
| 8041i06.55A500 | 8041i06 | view |
| 8041i06.55A520 | 8041i06 | view |
| 8041i06.55A550 | 8041i06 | view |
| GE8041i06.55N900 | GE8041i06 | view |
| GE8041i06.55N920 | GE8041i06 | view |
| GE8041i06.55R900 | GE8041i06 | view |
| GE8041i06.55R920 | GE8041i06 | view |
