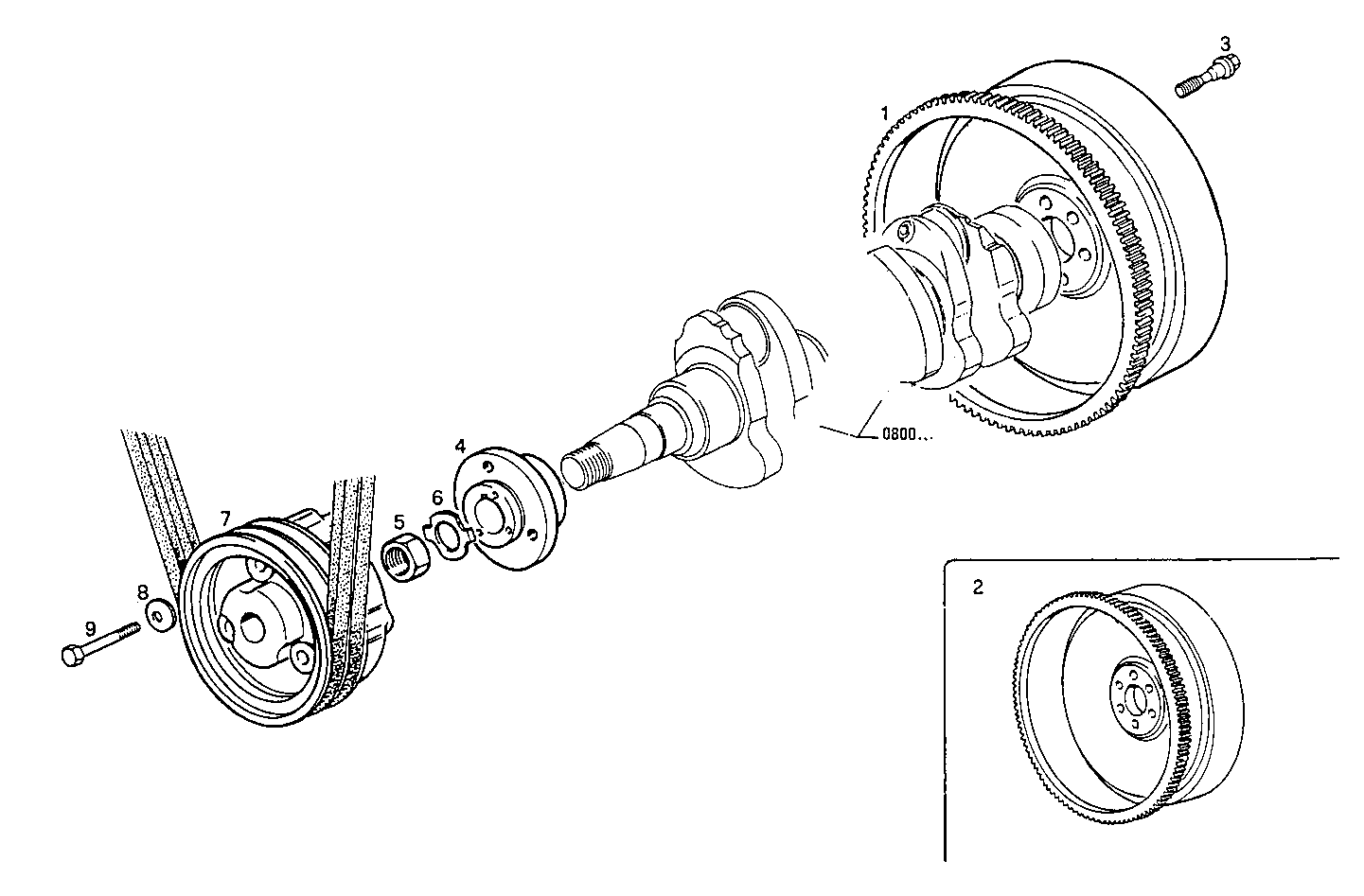

ENGINE FLYWHEEL - DAMPER
Assembly ID: 0830.185
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 4862411 | RING GEAR | 1 | ||
| 2 | 98428894 | FLYWHEEL | 1 | ||
| 3 | 4779121 | HEXAGON BOLT | 7 | ||
| 4 | 4655847 | HUB | 1 | ||
| 5 | 4600189 | NUT | 1 | ||
| 6 | 4600190 | LOCKING PLATE | 1 | ||
| 7 | 4765044 | PULLEY | 1 | ||
| 8 | 17090174 | SPRING WASHER | 6 | ||
| 9 | 11288024 | HEXAGON BOLT | 6 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8045E00.59A003 | 8045E00 | view |
| 8045E00.59A005 | 8045E00 | view |
