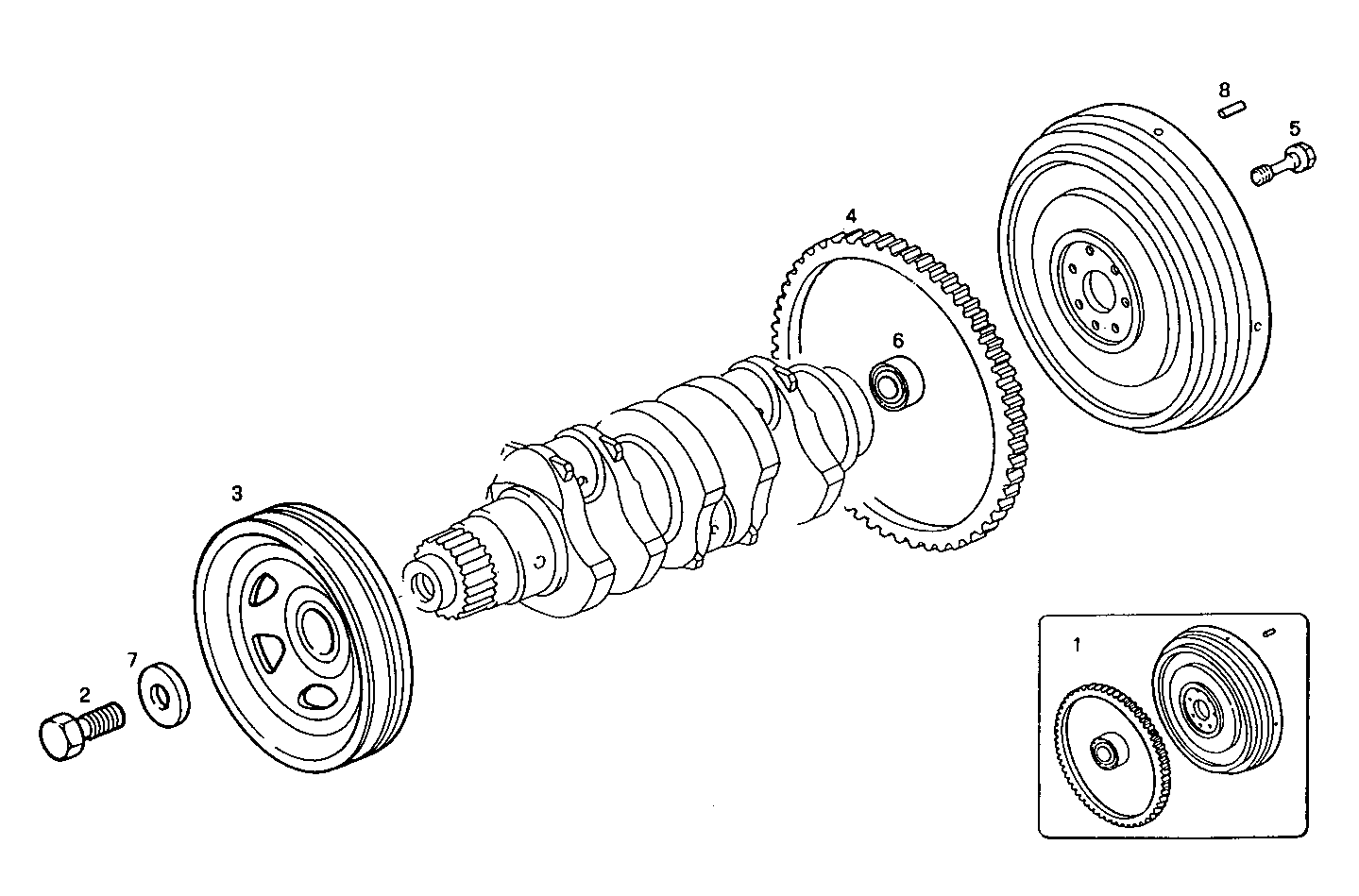

ENGINE FLYWHEEL - DAMPER
Assembly ID: 0830.189
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 500346698 | FLYWHEEL | 1 | ||
| 2 | 98419203 | SCREW | 1 | ||
| 3 | 99463370 | PULLEY | 1 | ||
| 4 | 4279804 | RING GEAR | 1 | ||
| 5 | 98430735 | SCREW | 6 | ||
| 6 | 98426210 | ENGINE BEARINGS | 1 | ||
| 7 | 98429488 | SPACING BAR | 1 | ||
| 8 | 98428116 | DOWEL PIN | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8140SRC21.00 | 8140SRC21 | view |
