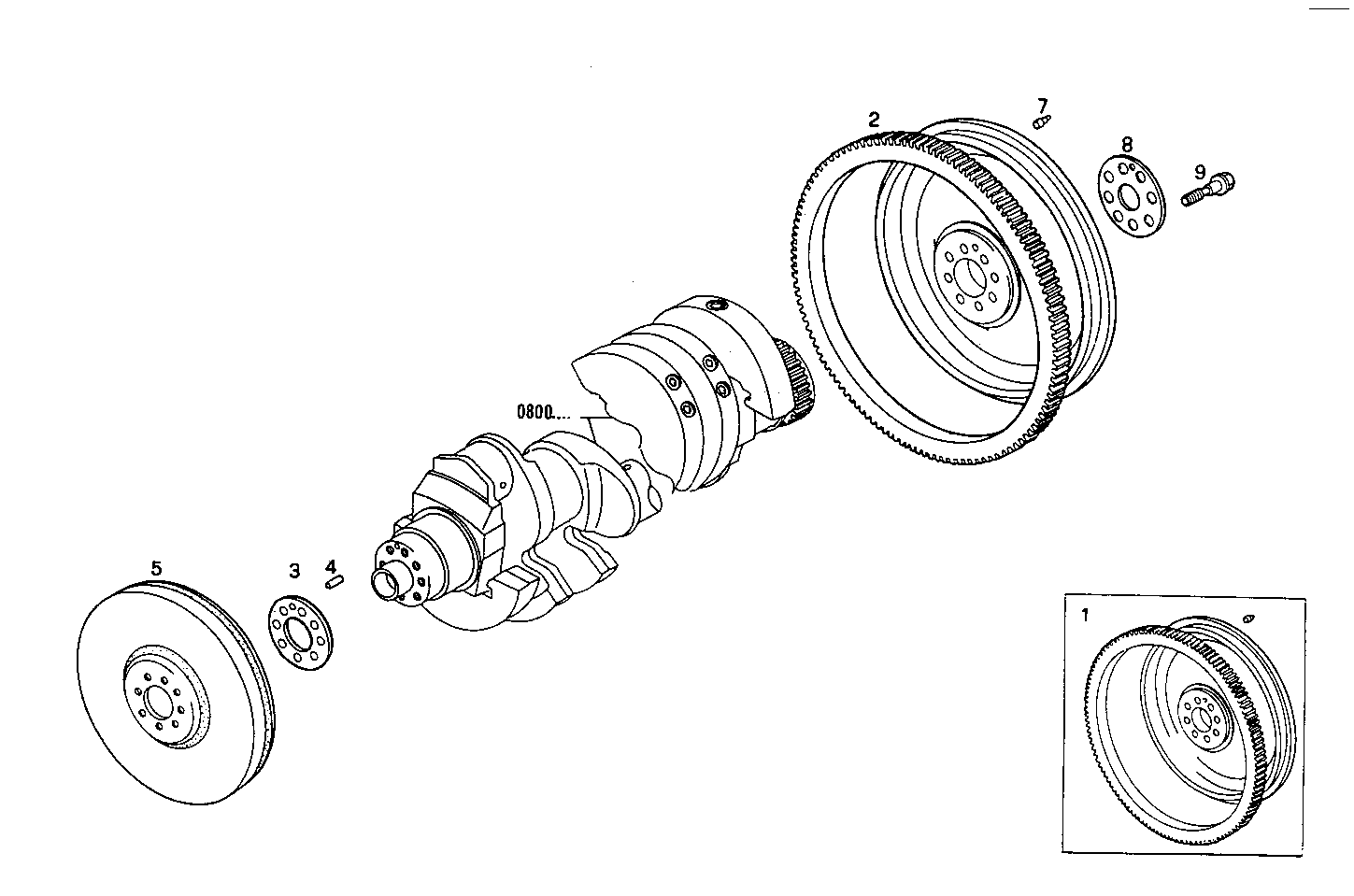

ENGINE FLYWHEEL - DAMPER
Assembly ID: 0830.190
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 98452375 | FLYWHEEL | 1 | ||
| 2 | 4854033 | RING GEAR | 1 | ||
| 3 | 98438003 | SPACING BAR | 1 | ||
| 4 | 14606870 | DOWEL PIN | 1 | ||
| 5 | 99455429 | VIBRATION DAMPER | 1 | ||
| 7 | 14170470 | DOWEL PIN | 1 | ||
| 8 | 4688312 | STOP WASHER | 1 | ||
| 9 | 4818509 | HEXAGON BOLT | 8 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8281SRM70.12 | 8281SRM70 | view |
