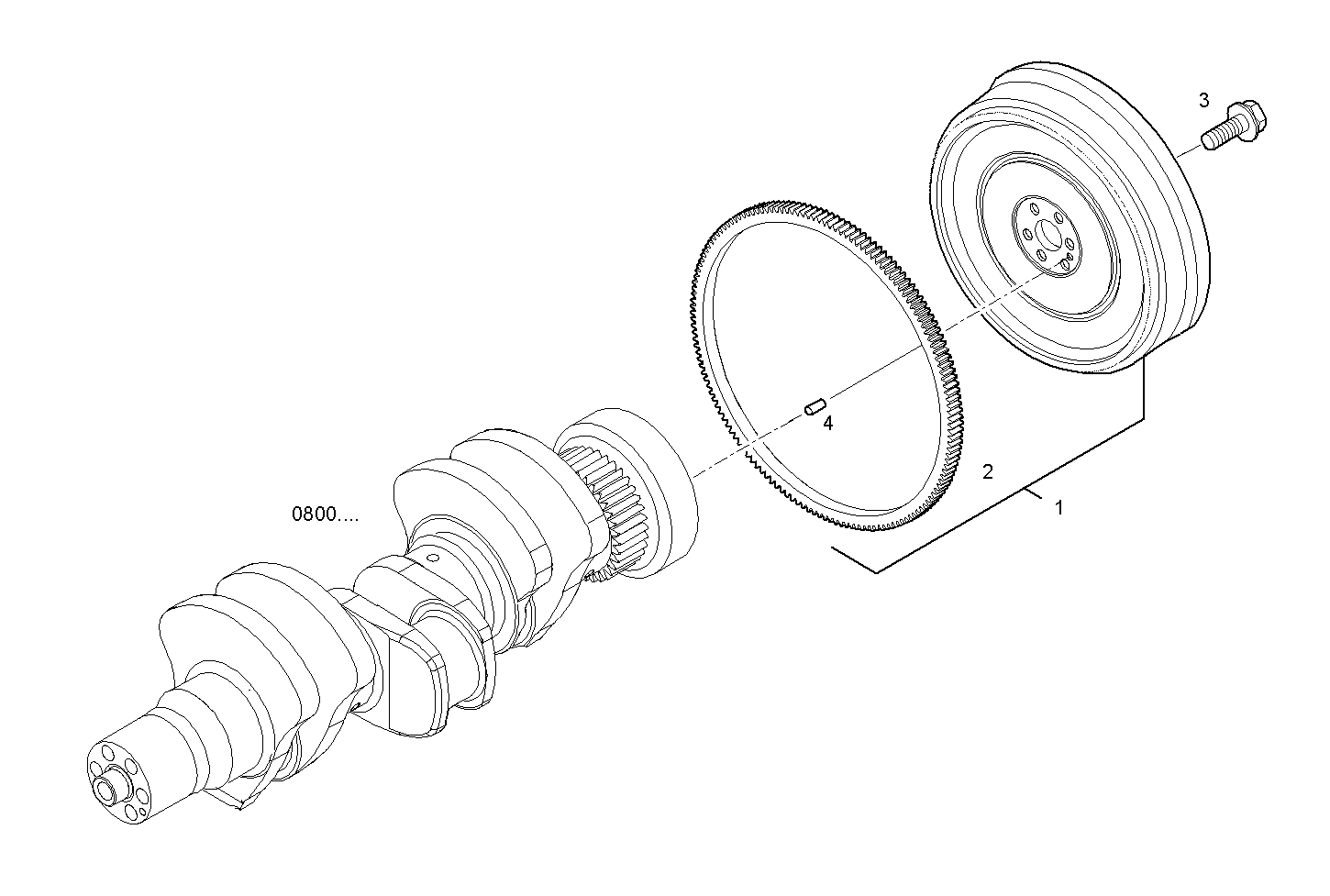

ENGINE FLYWHEEL - DAMPER
Assembly ID: 0830.233
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504061173 | FLYWHEEL | 1 | ||
| 2 | 4897821 | RING GEAR | 1 | ||
| 3 | 4894641 | HEXAGON BOLT | 8 | ||
| 4 | 17275510 | DOWEL PIN | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F4CE0354C*D601 | NEF 3 - TIER 2 | view |
| F4CE0354A*D600 | NEF 3 - TIER 2 | view |
| F4CE0354C*D600 | NEF 3 - TIER 2 | view |
| F4CE0304B*D600 | NEF 3 - TIER 2 | view |
| F4CE0304B*D601 | NEF 3 - TIER 2 | view |
