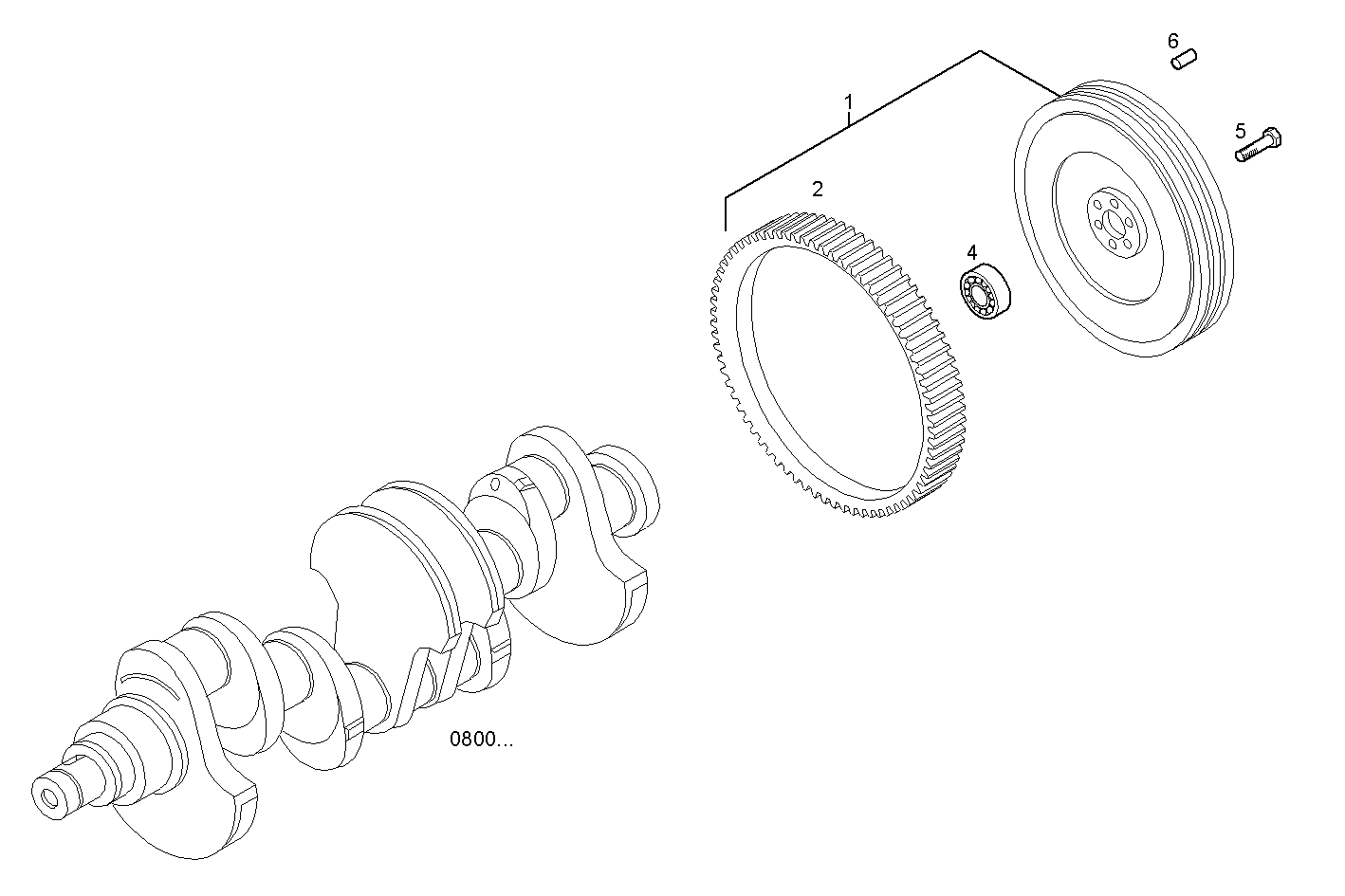

ENGINE FLYWHEEL - DAMPER
Assembly ID: 0830.281
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 500346700 | FLYWHEEL | 1 | ||
| 2 | 4279804 | RING GEAR | 1 | ||
| 4 | 98426210 | ENGINE BEARINGS | 1 | ||
| 5 | 98430735 | SCREW | 6 | ||
| 6 | 98428116 | DOWEL PIN | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| 8140SRC30.20A005 | 8140SRC30 | view |
| 8140.43B.4305 | 8140.43 | view |
| 8140.43N.4300 | 8140.43 | view |
| 8140.43S.4300 | 8140.43 | view |
| 8140SRC30.20 | 8140SRC30 | view |
| 8140SRC30.20A002 | 8140SRC30 | view |
| 8140SRC30.20A001 | 8140SRC30 | view |
| 8140SRC30.20A003 | 8140SRC30 | view |
| 8140SRC30.20A004 | 8140SRC30 | view |
| 8140SRC36.10A002 | 8140SRC36 | view |
| 8140SRC36.10A003 | 8140SRC36 | view |
| 8140SRC36.10A005 | 8140SRC36 | view |
| 8140SRC36.10A006 | 8140SRC36 | view |
