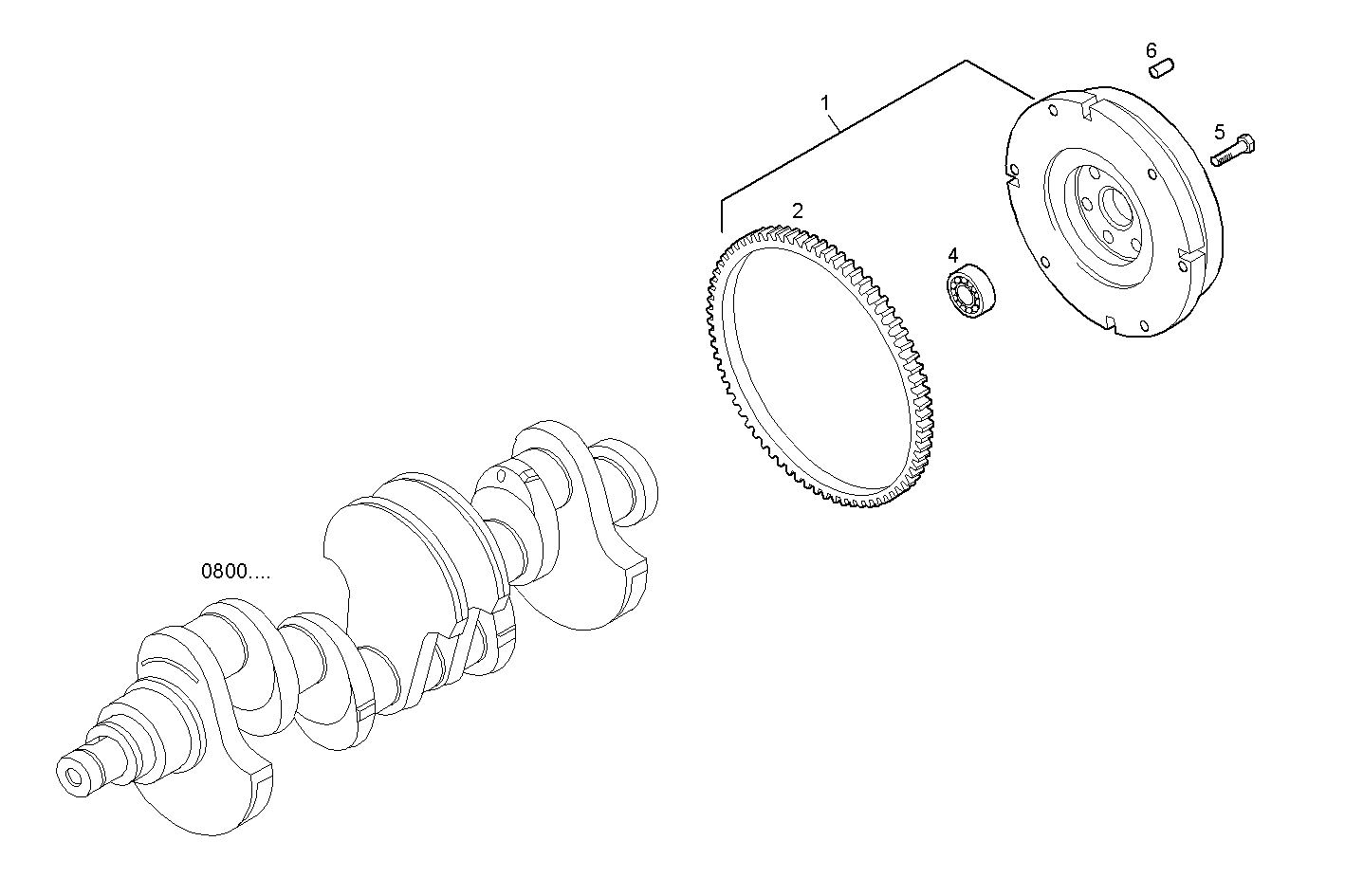

ENGINE FLYWHEEL
Assembly ID: 0830.302
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504063590 | FLYWHEEL | 1 | ||
| 2 | 4279804 | RING GEAR | 1 | ||
| 4 | 98426210 | ENGINE BEARINGS | 1 | ||
| 5 | 500347046 | HEXAGON BOLT | 7 | ||
| 6 | 98428116 | DOWEL PIN | 1 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F1AE0481B*A301 | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481B*B301 | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481L*A001 | SOFIM HPI 2.3L - TIER 2 | view |
