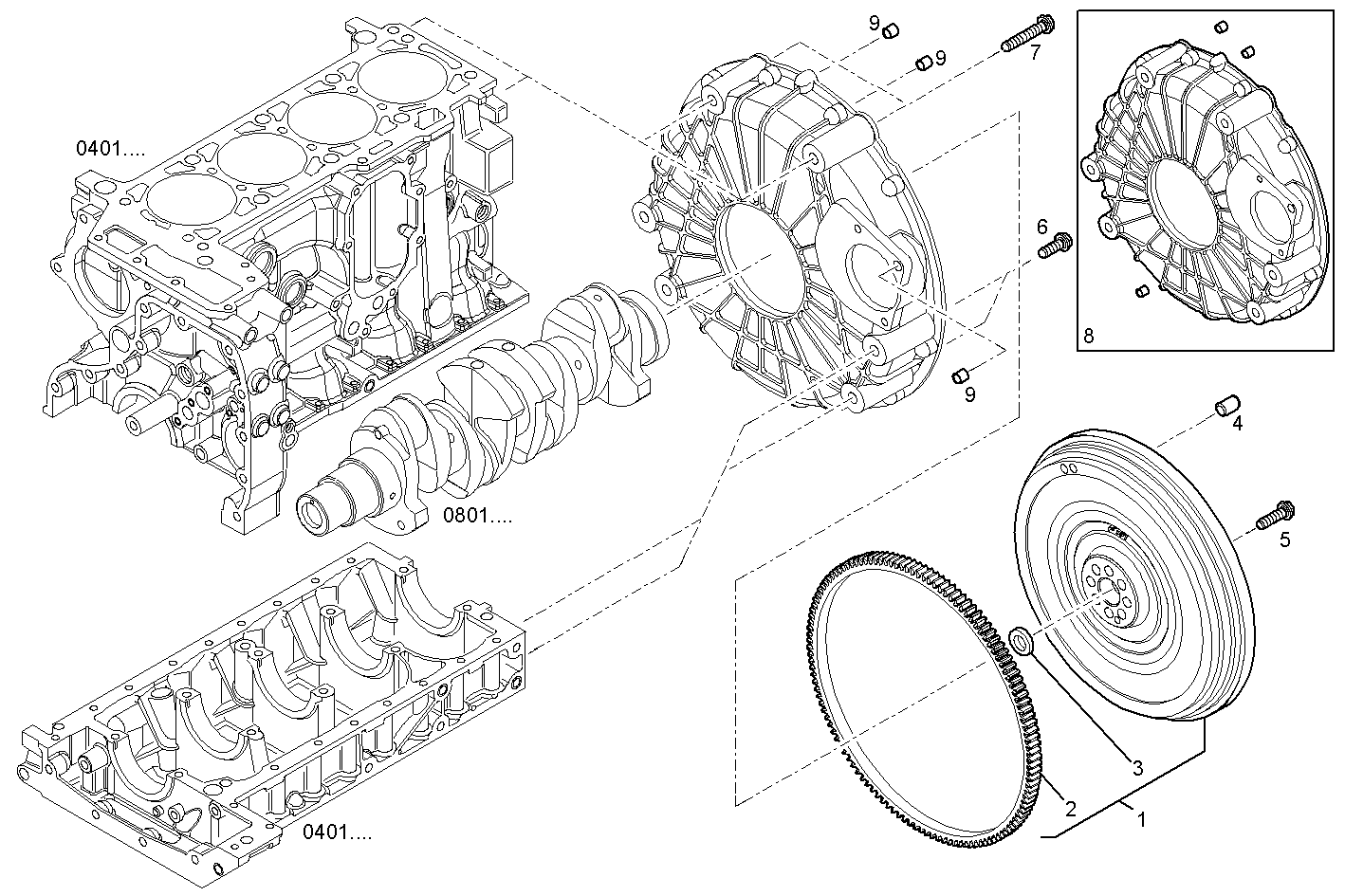

ENGINE FLYWHEEL
Assembly ID: 0830.317
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504371330 | FLYWHEEL | 1 | ||
| 2 | 504371329 | RING GEAR | 1 | ||
| 3 | 98426210 | ENGINE BEARINGS | 1 | ||
| 4 | 504383092 | DOWEL PIN | 2 | ||
| 5 | 504341500 | HEXAGON BOLT | 8 | ||
| 6 | 16289834 | LOCKING SCREW | 4 | ||
| 7 | 16290934 | HEXAGON BOLT | 2 | ||
| 8 | 504371402 | FLYWHEEL HOUSING | 1 | ||
| 9 | 4708557 | DOWEL PIN | 3 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F1CE3481F*D002 | SOFIM HPI 3.0L - EURO 5 | view |
| F1CE3481F*D012 | SOFIM HPI 3.0L - EURO 5 | view |
