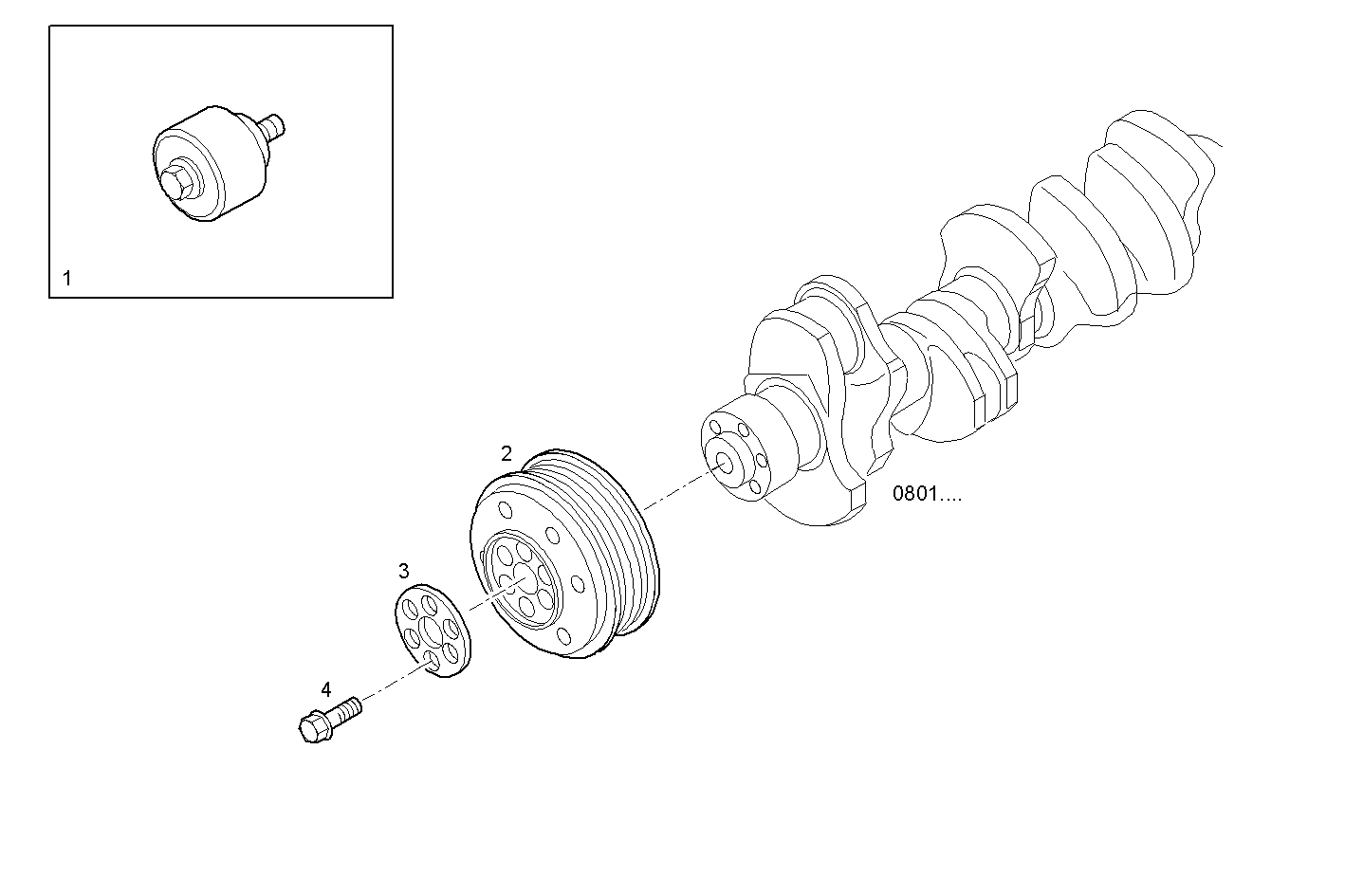

DRIVING PULLEY
Assembly ID: 0843.000
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504006261 | BELT TENSIONER | 2 | ||
| 2 | 8039128 | CRANKSHAFT PULLEY | 1 | ||
| 3 | 8040698 | WASHER | 1 | ||
| 4 | 16680935 | HEXAGON BOLT | 6 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3BE0686A*B101 | CURSOR 13 | view |
| F3BE0686C*B201 | CURSOR 13 | view |
| C13ENTM50.10 | CURSOR 13 | view |
| C13ENSM33.10 | CURSOR 13 | view |
| C13ENAM19.00 | CURSOR 13 | view |
| C13ENSM33.30 | CURSOR 13 | view |
| C13ENTM83.10 | CURSOR 13 | view |
| C13ENTM50.30 | CURSOR 13 | view |
| C13ENTM50.12 | CURSOR 13 | view |
