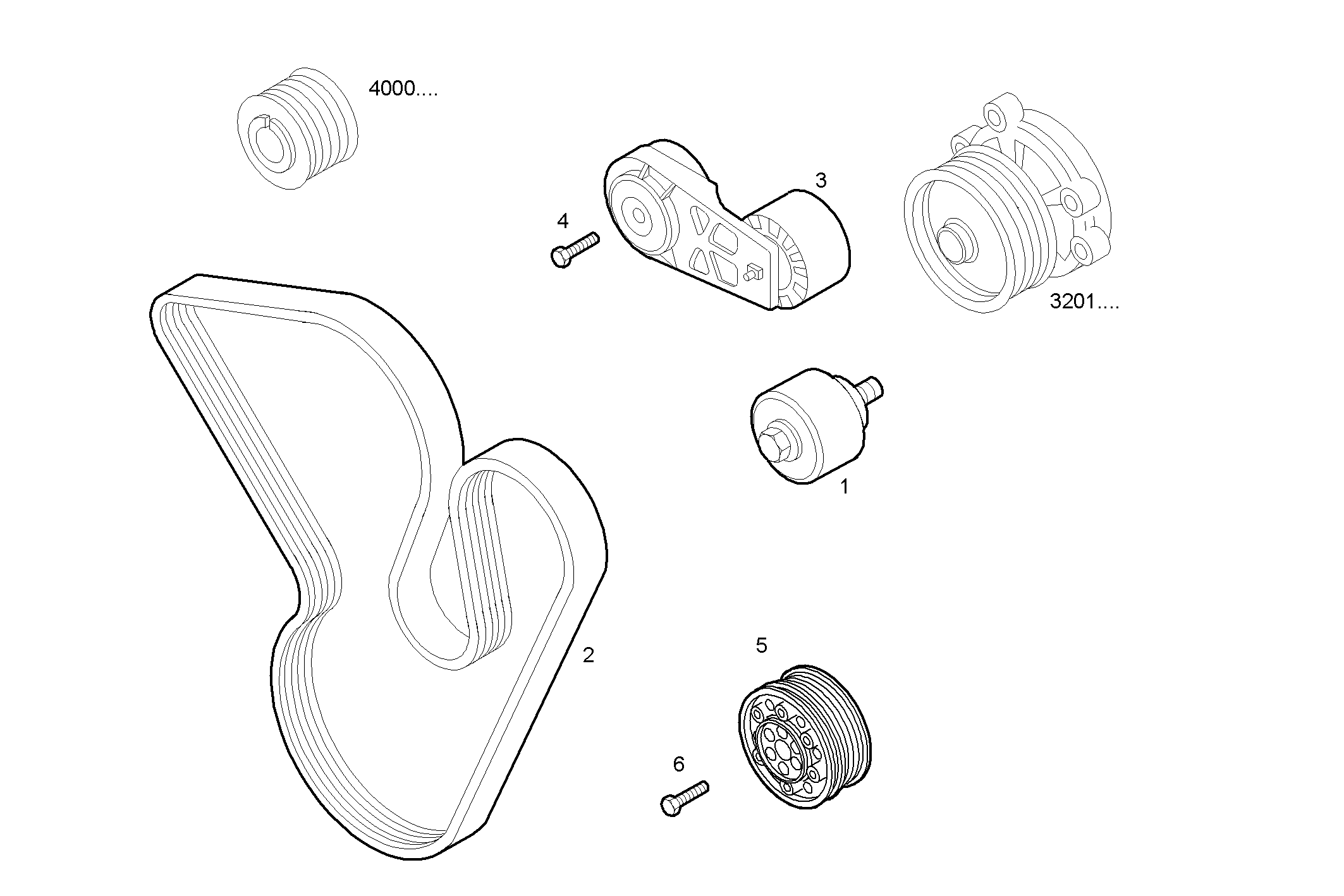

DRIVING PULLEY
Assembly ID: 0843.002
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504006261 | BELT TENSIONER | 1 | ||
| 2 | 504049425 | V-BELT | 1 | ||
| 3 | 504046191 | BELT TENSIONER | 1 | ||
| 4 | 16676834 | HEXAGON BOLT | 1 | ||
| 5 | 504254002 | PULLEY | 1 | ||
| 6 | 16680835 | HEXAGON BOLT | 6 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F3BE0684N*E904 | CURSOR 13 - TIER 3 | view |
| F3BE0684N*E903 | CURSOR 13 - TIER 3 | view |
| F3CE0684C*E002 | CURSOR 13 TCD - TIER 3 | view |
| F3CE0684E*E004 | CURSOR 13 TCD - TIER 3 | view |
| F3BE0684N*E906 | CURSOR 13 - TIER 3 | view |
