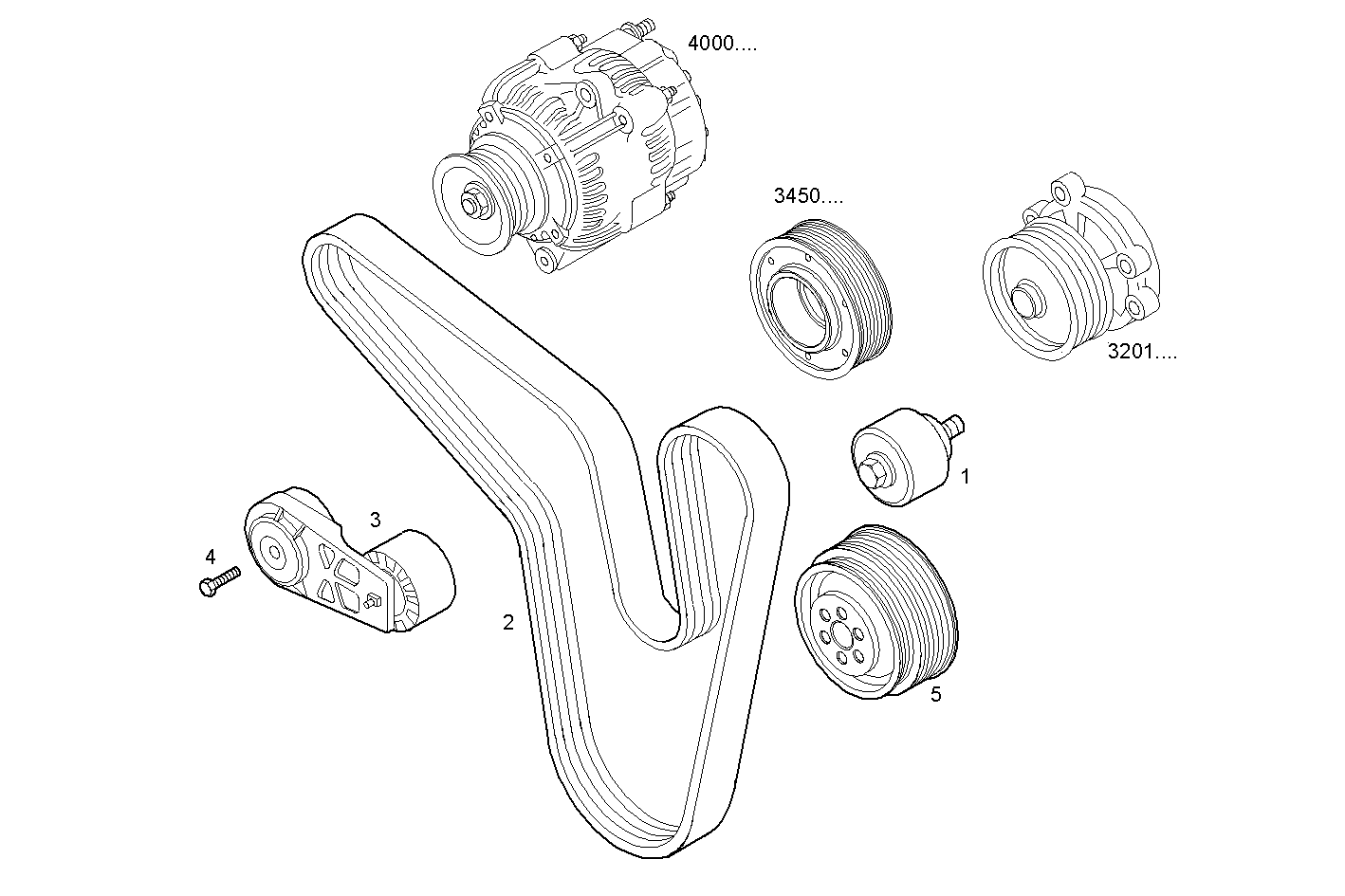

DRIVING PULLEY

Assembly ID: 0843.007

DRIVING PULLEY

Parts

# Part number Description Note Quantity
1 504006261 BELT TENSIONER 1
2 500341808 V-BELT 1
3 504046191 BELT TENSIONER 1
4 16676834 HEXAGON BOLT 1
5 504023798 PULLEY 1

Applies to engines

Engine Family
F3AE0687A*B301 CURSOR 10 - TIER 2 view
C10ENTE20.00 CURSOR 10 - TIER 2 view
C10ENTD20.00 CURSOR 10 - TIER 2 view
F3AE0684D*B102 CURSOR 10 - TIER 2 view
C10ENTD20.00A800 CURSOR 10 - TIER 2 view
C10ENTC23.00A004 CURSOR 10 - TIER 2 view
F3AE9687A*E001 CURSOR 10 - TIER 3 view
C10ENTX20.00 CURSOR 10 - TIER 3 view
C10ENTX20.00A800 CURSOR 10 - TIER 3 view
C10ENTX20.00A801 CURSOR 10 - TIER 3 view
F3AE9685A*E001 CURSOR 10 - 2002/88/CE TIER 3 view
C10ENTX60.00 CURSOR 10 - 2002/88/CE TIER 3 view
CURSOR10TE1D.X001 CURSOR 10 - 2002/88/CE TIER 3 view
F3AE9687B*E001 CURSOR 10 - TIER 3 view
F3AE9687C*E001 CURSOR 10 - TIER 3 view
CURSOR10TE1D.R991 CURSOR 10 - 2002/88/CE TIER 3 view
GECURSOR300ED.R990 GECURSOR 10 - 2002/88/CE-TIER3 view
C10ENTX20.00A802 CURSOR 10 - TIER 3 view
PUC10ENTD20.00A100 CURSOR 10 - TIER 2 view
CURSOR10TE1D.S550 CURSOR 10 - 2002/88/CE TIER 3 view
F3AE0687A*B302 CURSOR 10 - TIER 2 view
C10ENTD20.20 CURSOR 10 - TIER 2 view
CURSOR10TE1D.A559 CURSOR 10 - 2002/88/CE TIER 3 view
GECURSOR300ED.A551 GECURSOR 10 - 2002/88/CE-TIER3 view
GECURSOR300ED.A71M GECURSOR 10 - 2002/88/CE-TIER3 view
C10ENTX20.00A008 CURSOR 10 - TIER 3 view
CURSOR10TE1D.A001 CURSOR 10 - 2002/88/CE TIER 3 view
CURSOR10TE1D.A008 CURSOR 10 - 2002/88/CE TIER 3 view
CURSOR10TE1.X001 CURSOR 10 - 2002/88/CE TIER 3 view
F3AE0681D*B315 CURSOR 10 - EURO 3 view
C10ENTC23.00A002 CURSOR 10 - EURO 3 view
