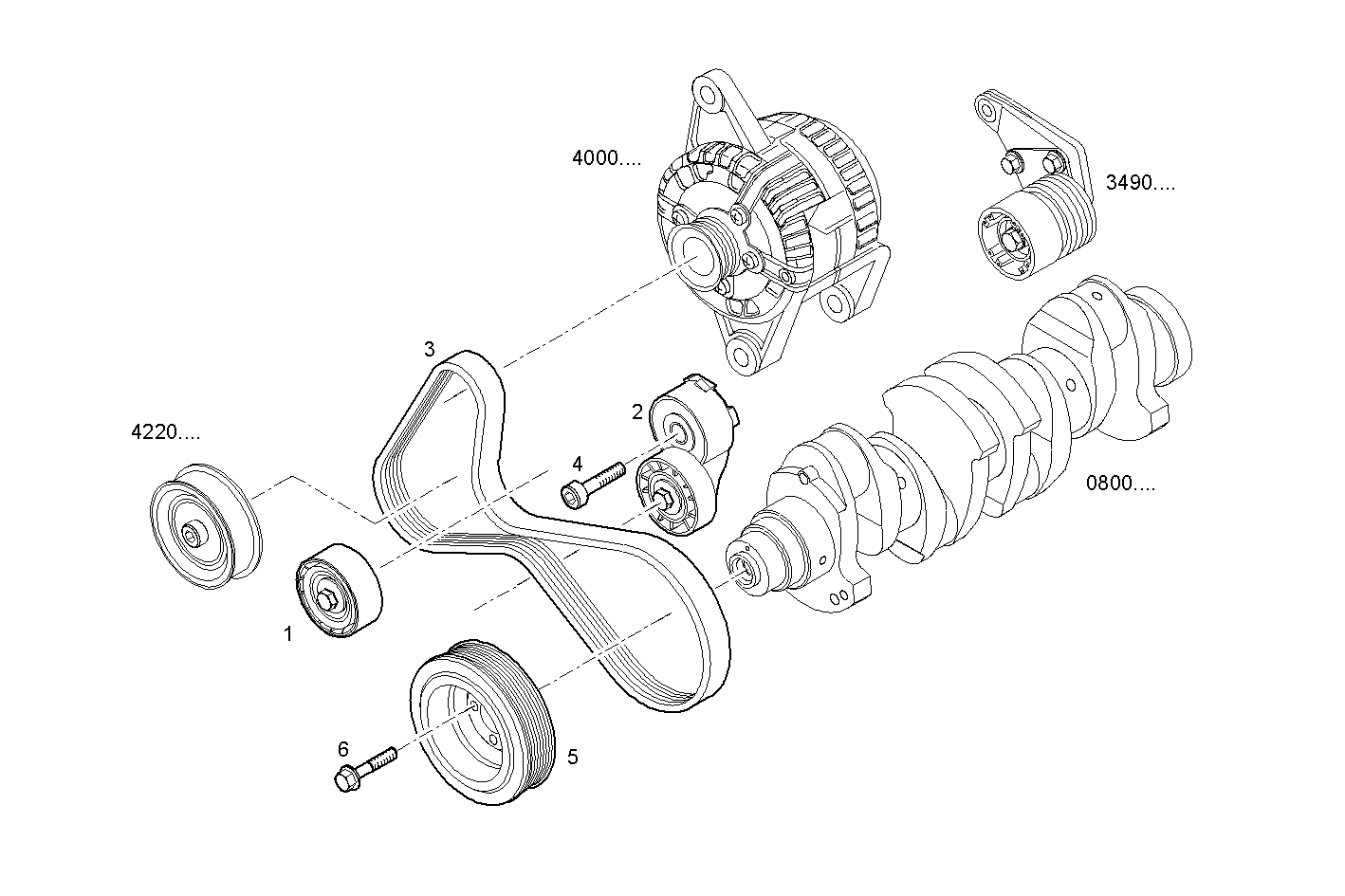

DRIVING PULLEY
Assembly ID: 0843.011
Parts
| # | Part number | Description | Note | Quantity | |
|---|---|---|---|---|---|
| 1 | 504000412 | DRIVE BEARING | 1 | ||
| 2 | 504000410 | BELT TENSIONER | 1 | ||
| 3 | 504000413 | V-BELT | 1 | ||
| 4 | 16691424 | HEXAGON BOLT | 1 | ||
| 5 | 504017415 | PULLEY | 1 | ||
| 6 | 500375263 | HEXAGON BOLT | 4 |
Applies to engines
| Engine | Family | |
|---|---|---|
| F1AE0481B*A301 | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481B*B301 | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481A*A002 - C | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481B*A002 - C | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A004 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A006 - C | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A008 - C | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A005 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A006 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC20.10A007 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A005 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A007 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A009 | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A010 | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481A*A002 - D | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481B*A002 - D | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A006 - D | SOFIM HPI 2.3L - EURO 3 | view |
| S23ENSC24.10A008 - D | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481L*A001 | SOFIM HPI 2.3L - TIER 2 | view |
| S23ENSC24.20A001 | SOFIM HPI 2.3L - TIER 2 | view |
| F1AE0481G*A001 | SOFIM HPI 2.3L - EURO 4 | view |
| F1AE0481B*C001 | SOFIM HPI 2.3L - EURO 3 | view |
| F1AE0481G*A007 | SOFIM HPI 2.3L - EURO 4 | view |
| S23ENS424.30A004 | SOFIM HPI 2.3L - EURO 4 | view |
